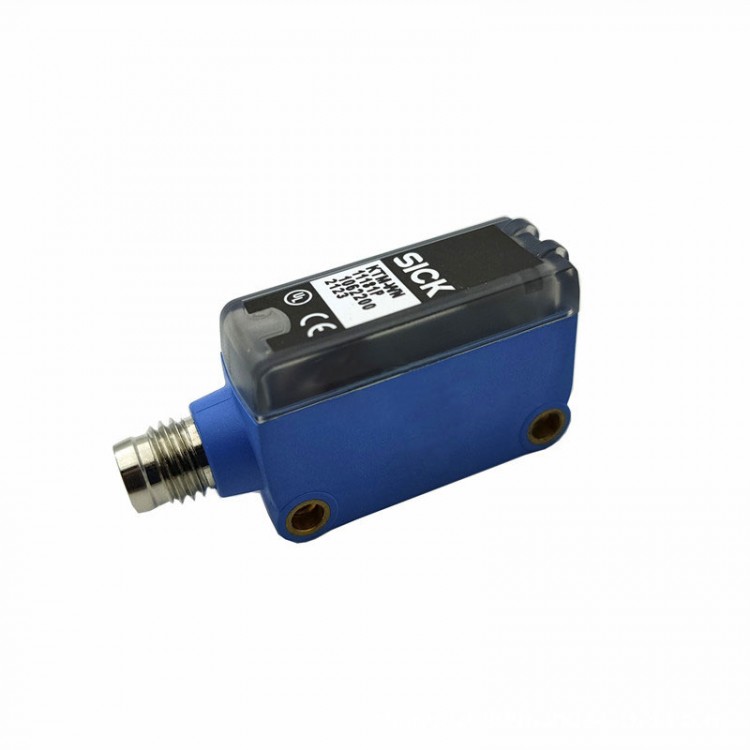

KTM-WN11182P Contrast Sensor KTM Prime 1062150 Original Sensor for SICK

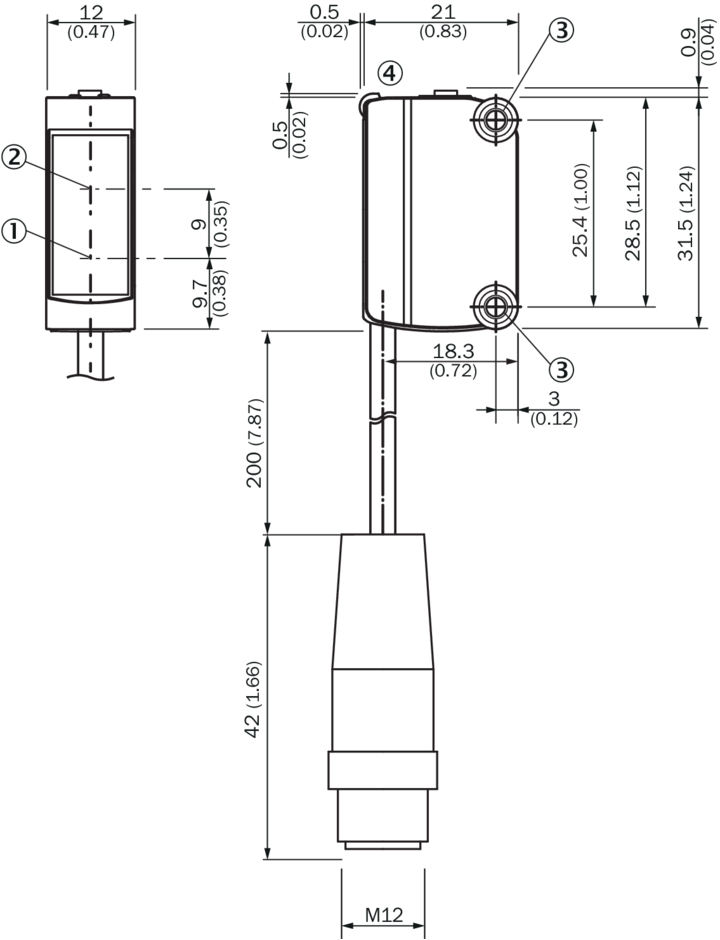

Dimensional drawing KTM-Mxxxxx2P, KTM-Wxxxxx2P
Dimensions in mm (inch)
① Center of optical axis, sender
② Center of optical axis, receiver
③ Mounting holes M3
④ display and adjustment elements

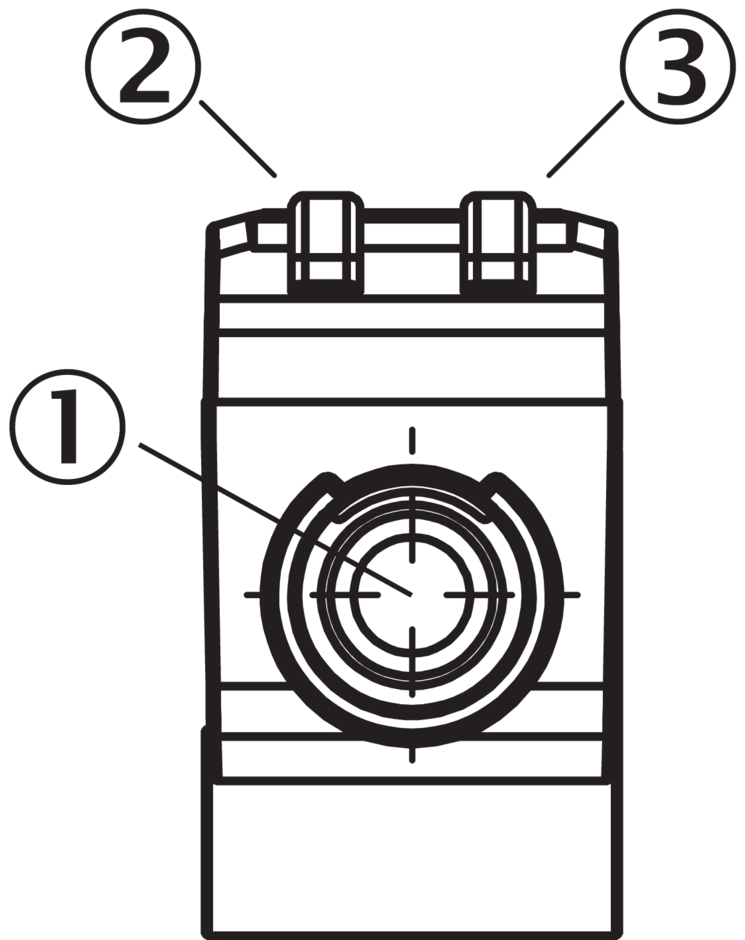

Display and adjustment elements
① Teach-in button
② LED yellow
③ LED green

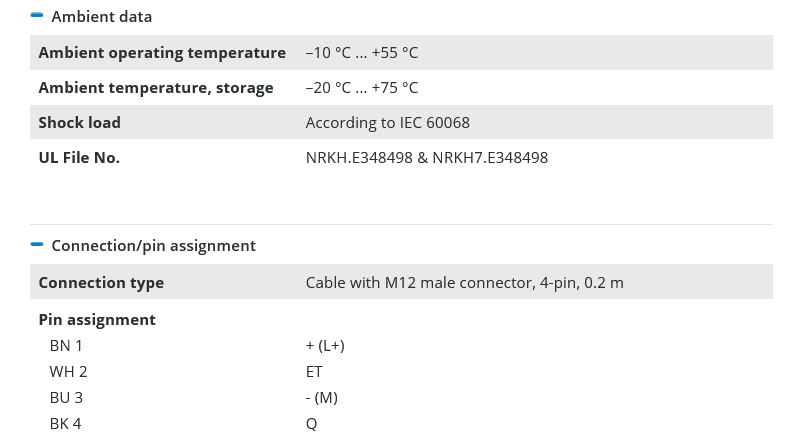

Connection type. see table: Connection/PIN assignment

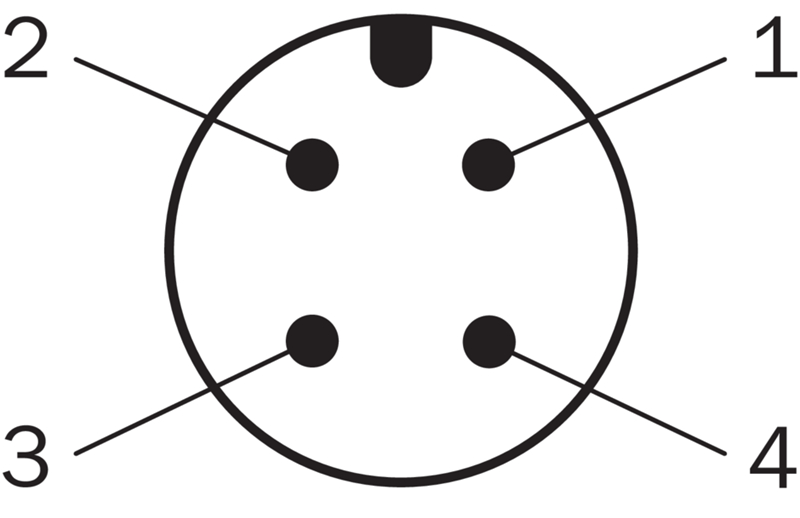

M12 male connector, 4-pin, A-coding

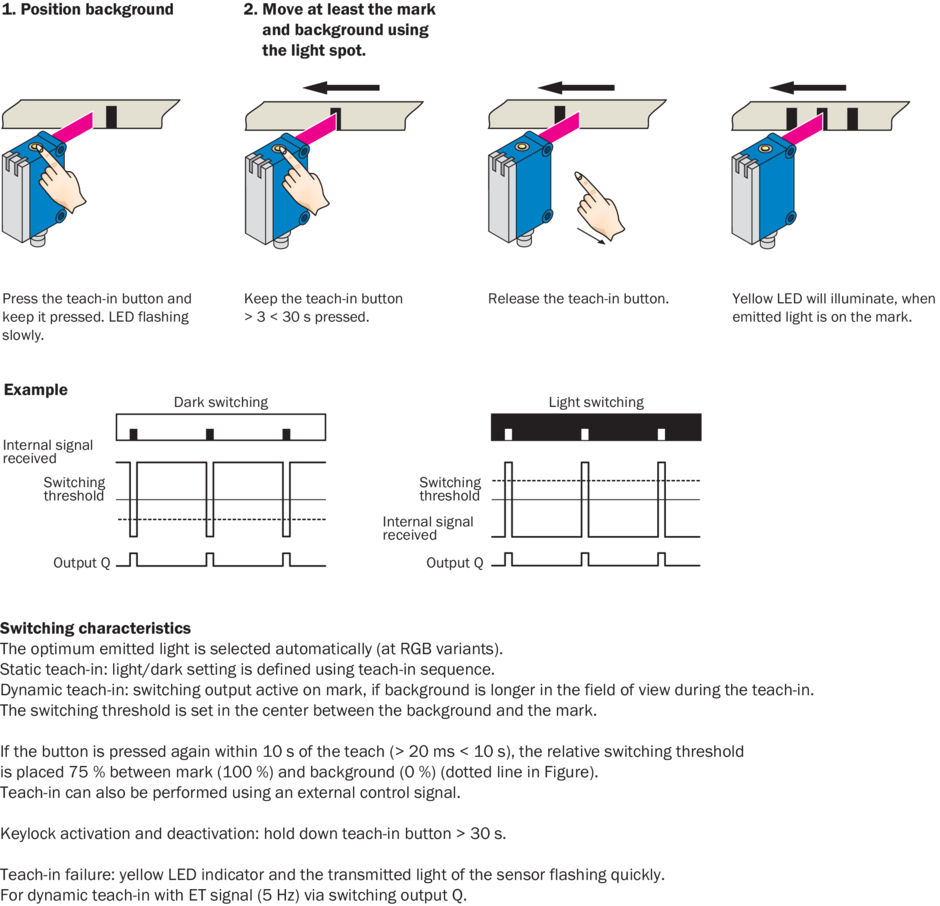

Setting the switching threshold (dynamic)

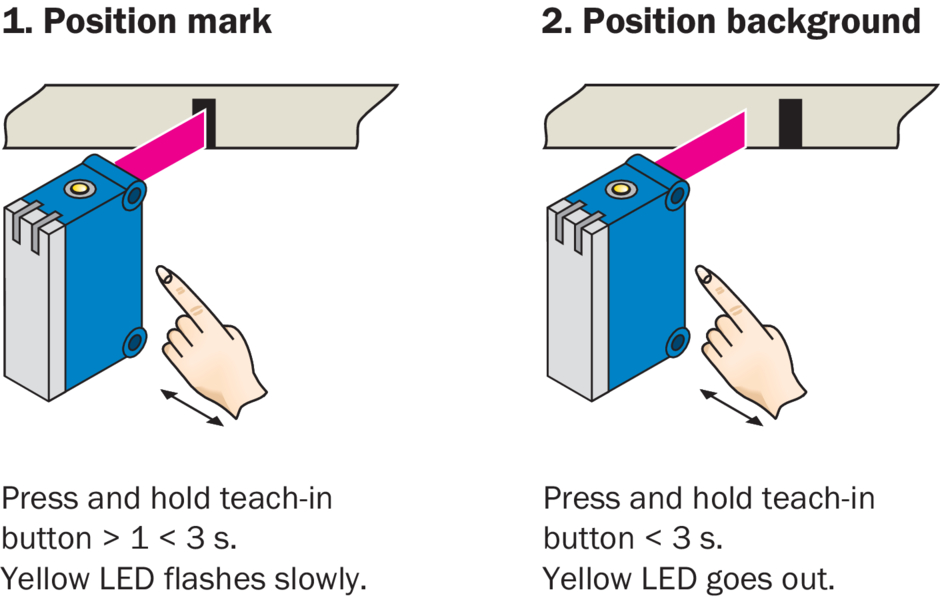

Setting the switching threshold (static)

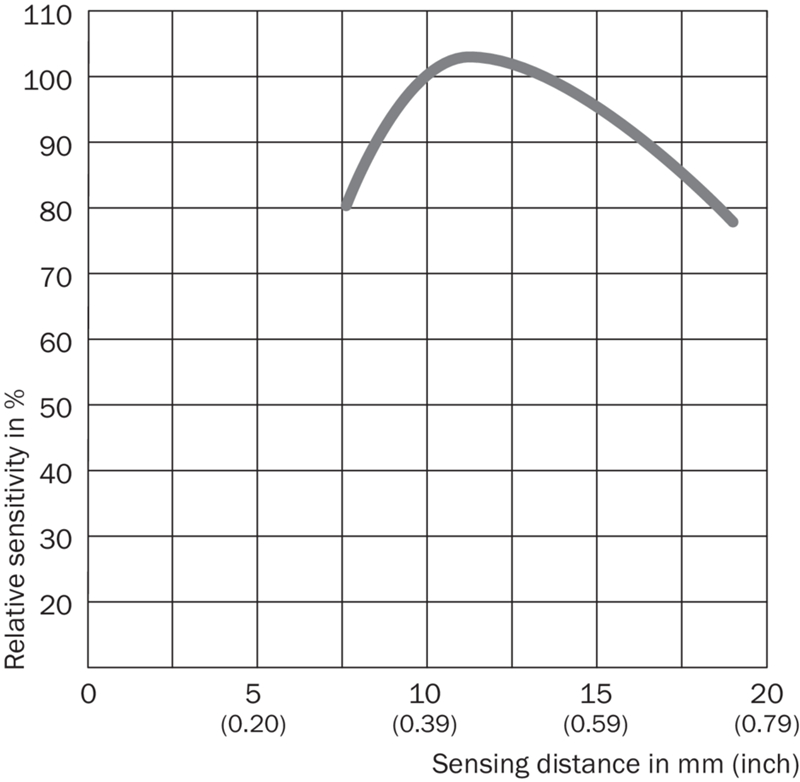

Sensing distance KTM-xxx1xxxx
Package Included:
- 1 x Contrast Sensor
