KW_3045-4 LT3045 +9V RF Power Supply Module Low Noise Linear Power Supply Step Down Module

KW_3045-4 LT3045 +9V RF Power Supply Module Low Noise Linear Power Supply Step Down Module

Read Before Purchasing:
(1) The interfaces of our module are clear and its performance is stable. Please combine the information provided by us and then perform functional verification corresponding to the experimental conditions.
(2) The basic parameters of this module are mentioned below. Schematic diagram and engineering files are not provided. If you have operational problems, please consult customer service.
(3) Before using the module, please read the information of this module to understand power supply and usage restrictions so as to avoid damage to the module due to improper operation.
(4) Real module parameters, functions and pictures are provided. All modules have passed inspection before delivery.

Description:

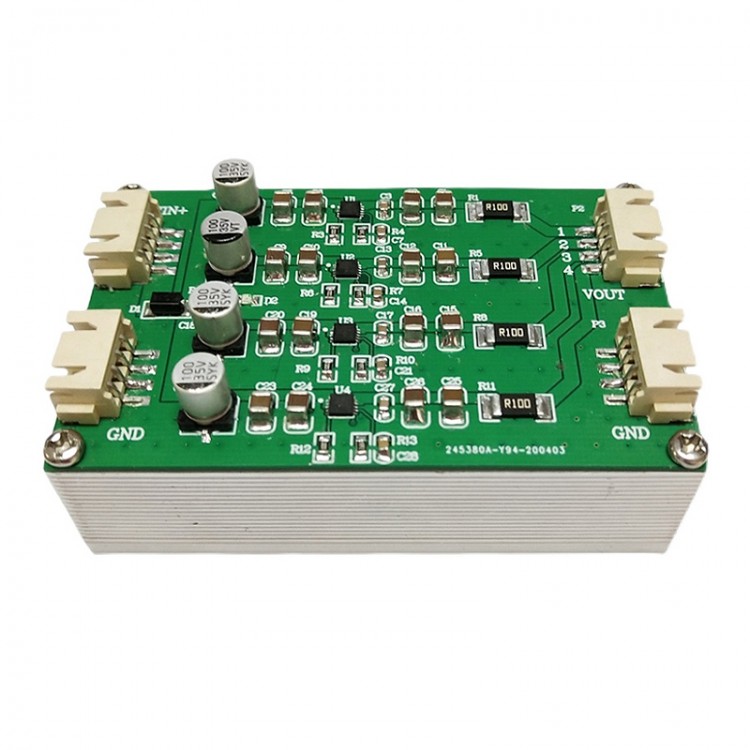

KW_3045-4 is developed with LT3045 high-performance low-dropout linear regulator chip (for ADI), which can provide designers with a complete solution for high-precision power supply analog applications. The LDO has very high PSRR performance and very low output noise. It can be used to power noise-sensitive applications such as PLL, VCO, mixers, LNA, power amplifiers, precision op amps, ADC, DAC, and other high-performance analog circuits.

Module Parameters:
- Module Model: KW_3045-4 (4-way LT3045)
- Module Type: Linear Regulator Buck
- Input Voltage: +20V (MAX)
- Optional output voltages: +5V, +9V, +12V, and +15V
- Output current: 4-channel 500mA max. (2A in total)
- Input and output voltage difference: < 500mV
- Output power: 4-channel 6W (12V/0.5A) for reference only
- Load Regulation: ±0.5%
- Voltage Regulation: ±1%
- Static power consumption: 6mA
- Switching frequency: none
- Output ripple: better than 1mV (no load)
- Module noise: 0.8μVRMS (10Hz-100KHz)
- Module PSRR: 76dB at 1MHz
- Module Enable: None
- Module protection: input reverse polarity protection
- Module features: various (with four outputs; users can connect in parallel to increase output current; ultra-low noise, ultra-low ripple; with power supply input indicator)
- Module Application: various (Precision Operational Amplifier, High Speed/High Precision Data Converter, RF Circuit Power Supply, etc.)
- Module weight: 115G/0.3LB (with heat sink)
- Module Dimensions (with heat sink): 80 x 50 x 30mm/3.1 x 2 x 1.2" (LxWxH)
- Module heating: the greater the load, the greater the heat
- Operating temperature: -40 to +85℃
- Module interface: XH2.54-4P*4

Package Included:
- 1 x Module
- 4 x XH2.54-4P Power Cables

Precautions:
(1) The module has no over-voltage protection, so please check and compare the power supply carefully before powering on, otherwise the module will be damaged.
(2) The heating of the linear power supply is mainly determined by the output voltage difference and the load current. Please select and use the power supply module reasonably. Generally, a 30% margin needs to be reserved.
(3) The module is a step-down module, and the input voltage needs to be more than 1V above the output to ensure stable output.
(4) The module will heat up during use. Buyers are requested to enhance heat dissipation according to the actual situation. When carrying a large load, the user can appropriately add more heat sink.
(5) When using the module, it is recommended to add 100uF or larger electrolytic capacitors to the input and output terminals.
(6) It is recommended to use our transformer and rectifier filter module to form a precision power supply.

FAQ:
Q1: Can the module power audio equipment?
A1: Yes. It is a high-quality power module designed to power RF equipment and high-end audio equipment.

Q2: Can the four outputs of the module be connected in parallel?
A2: When the four output voltages are the same, the four outputs can be connected in parallel, and the maximum output current is 2000mA. It is not recommended to use the maximum current, and a certain margin needs to be left.

Q3: Why can't the nominal ripple parameter be tested?
A3: First of all, it should be tested in a correct way and you can search the power supply ripple measurement method on the Internet. Secondly, the linear power supply can only suppress the ripple noise of the input signal, but it is not unlimited. If the switching power supply input is used and the noise is large, the linear power supply will not play a major role. Therefore, the general linear power input is rectified and filtered through a transformer. Our shop has a complete set of transformer rectification filter linear power supply solutions and modules. For more details, please contact customer service. Thank you!
