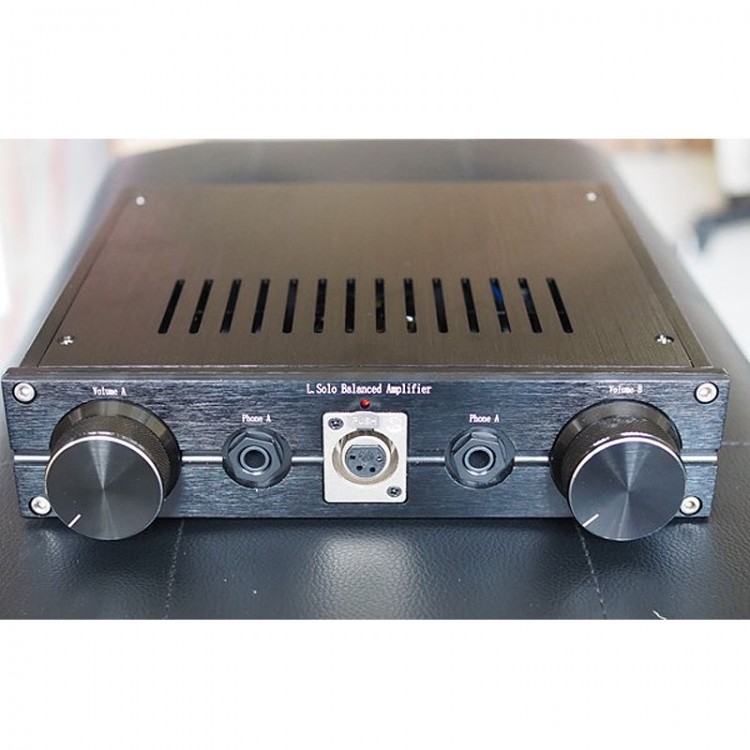

L.Solo Balanced Headphone Amplifier for Lahmann 10Hz-20KHz High Performance Balanced Headphone Amplifier
Features:
- It adopts excellent Lahmann circuit to form 4 channels fully balanced amplification circuits.
- Integrated with perfect earphone protection circuit to realize delayed connection, intermediate detection and shutdown.
- The step potentiometer with fever level is adopted, and the error is less than 1% to solve the problem of positive and negative half wave distortion of the balance circuit.
- A large number of fever level components are used for fine tuning.
- This headphone amplifier is designed for balanced headphones that need high thrust.
- Integrated design of both inside and outside the box.
Parameter:
- Impedance range: 32-600ohm
- Frequency range: 10Hz-20KHz
- Distortion: 0.02% at 1KHz Vppm=20V (90% power output)
- Output noise level: -90dB
- Output impedance: 10ohm
- Rated output power: 1600mW/60ohm; 920mW/300ohm; 470mW/600ohm
- Input sensitivity: 300mVrms (-7dB) for rated output
- Gain: High gain 12 times
- Power supply voltage: 220V AC
- Size: 160 x 116 x 48mm
- Weight: about 2.5kg

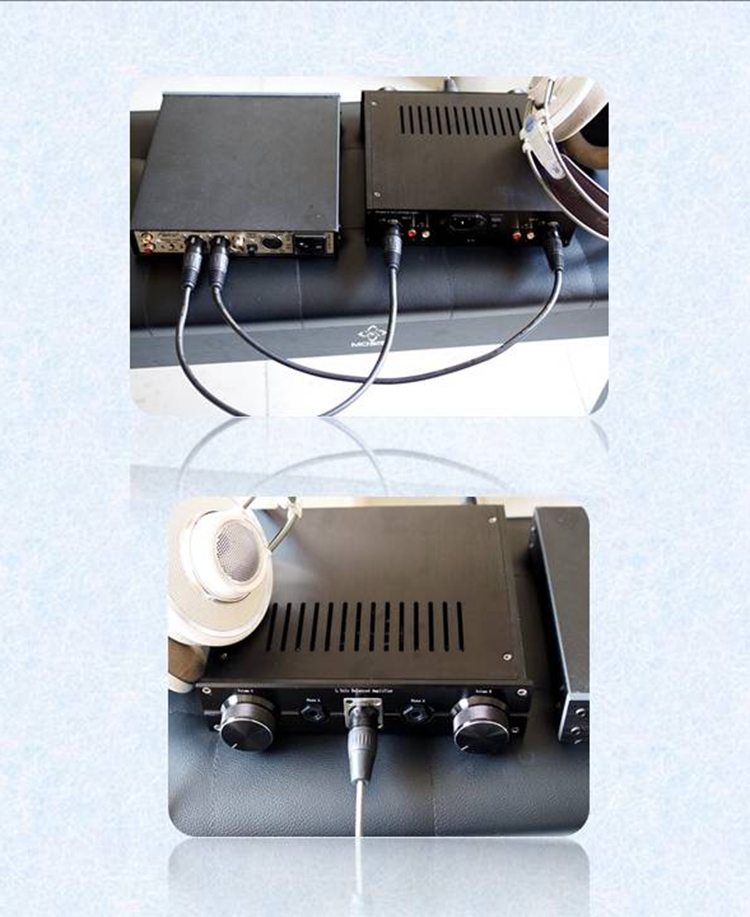

Fully balanced mode connection:
- Connect the left and right channels Canon input of the rear panel to the Canon output of the sound source.
- Insert the four pin plug of the balance headset into the front panel Canon balanced output.
- The left and right volume knobs are controlled separately control the volume of left and right channels.

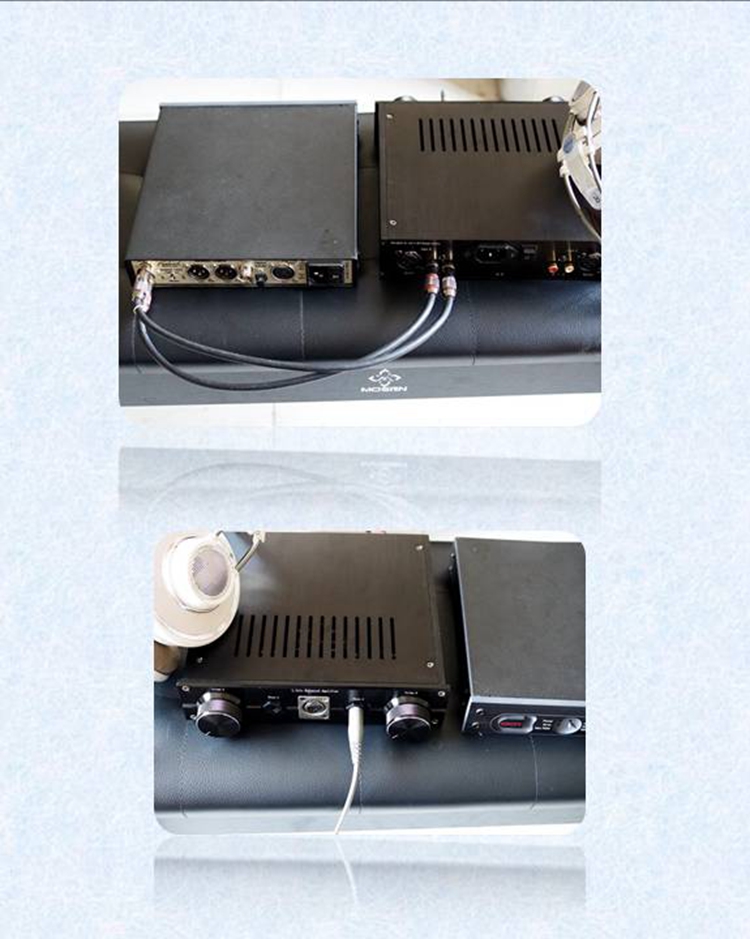

Single terminal mode connection:
- Connect the left and right channels RCA input with the output of the sound source.
- Insert the 6.5 headphone into the right 6.5 single ended headphone amplifier of the front panel.
Package Included:
- 1 x Headphone Amplifier
- 1 x Power Cable
- 1 x Audio Cable
