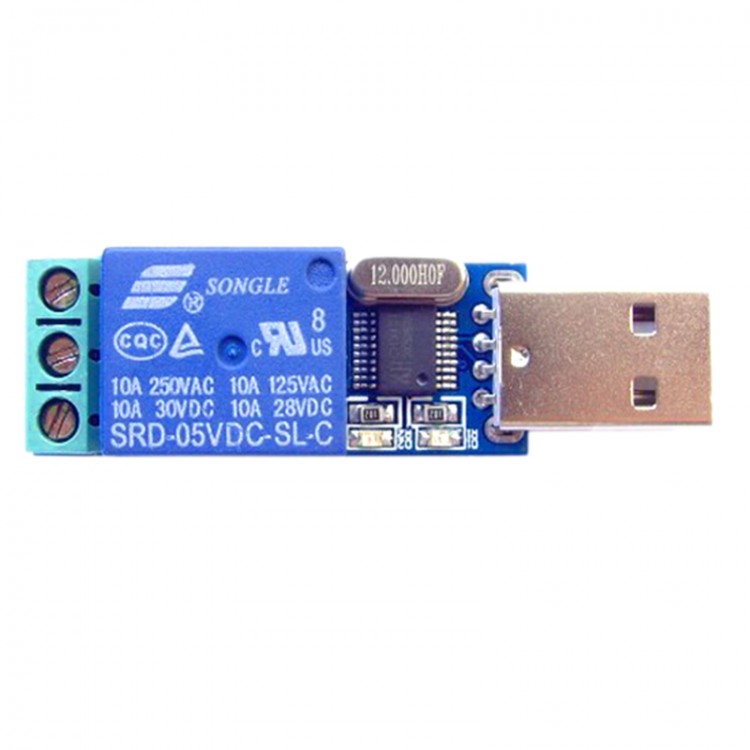

LCUS Type 1 USB Relay Module USB Intelligent Switch
Description:
1. Onboard high-performance micro-controller chips.
2. Onboard CH340 and USB control chip.
3. Onboard LED power lights and relay status LED indicator.
4. Onboard 5 v, 10 A / 250 VAC, 10 A / 30 VDC relays, relay has a long life span with actuation of 100000 times.
5. Module with over-current protection and relay diode current protection function.
6. PCB size: 43.6 (mm) x16.4 (mm).
USB switch communication protocol:
- Data (1) - startup logo (the default is 0 xA0)
- Data (2) - switch address code (the default is 0 x01, identifies the first switch)
- Data (3) - operation data (0 x00 to "off", 0 x01 to "on")
- Data (4) - check code
For example:
- Turn on the USB switch:A0 01 01 A2
- Turn off the USB switch: A0 01 00 A1
- Serial communication: 9600 bps, 8 data bits, 1 stop bit, no parity. Commands given below in hex code.
Package included:
- 5 x LCUS - type 1 USB relay module x 1 piece
