| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $39.71 | $38.90 | $37.68 | $36.06 | Contact US |

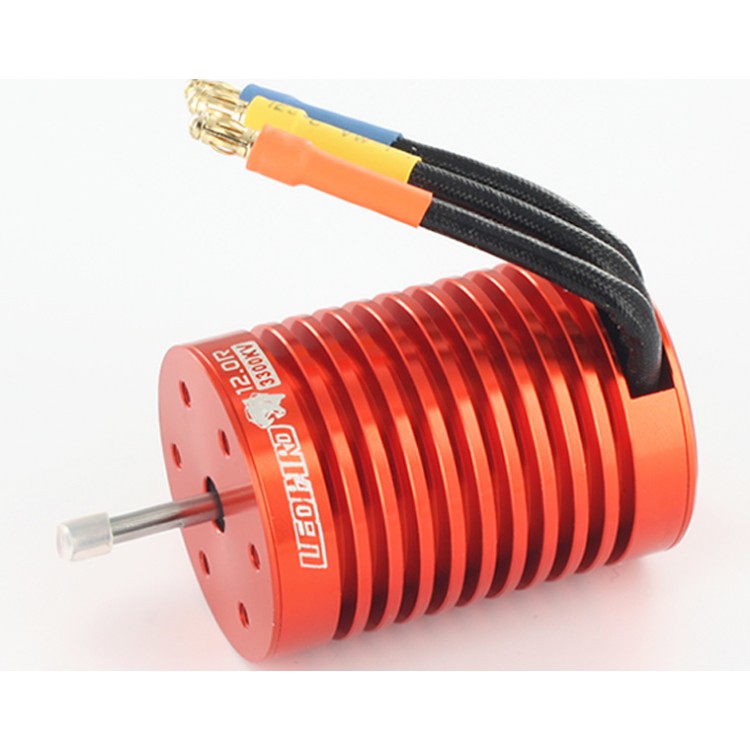

Leopard 3300KV/12T/2P Brushless Motor for 1/10 Car
Specifications:
| Item Name | Leopard 3300KV/12T/2P BL Motor for 1/10 Car | ||
| Sensored /Sensorless | sensorless | No loading @7.2V Current | 1.6A |
| Turns | 12T | Max current | 55A |
| KV value | 3300KV | Resistance (Ω) | 0.0186Ω |
| Poles | 2P | Battery range | 1-3S |
| Diameter | 36mm | Operation Temperature | / |
| Motor length | 50mm | Max Temperature | 150° |
| Extend shaft diameter | 3.165mm | Suitable car scale | 1/10 |
| Length of extend shaft | 15mm | Suitable ESC | 35A or higher |
| Weight | 176g | Connector Type | 3.5mm |
