LF77-AKZ250-USB3-NPN 3 Axis Mach3 Motion Controller Mach3 USB Controller For CNC Engraving Machines

LF77-AKZ250-USB3-NPN 3 Axis Mach3 Motion Controller Mach3 USB Controller For CNC Engraving Machines



Version Introduction:

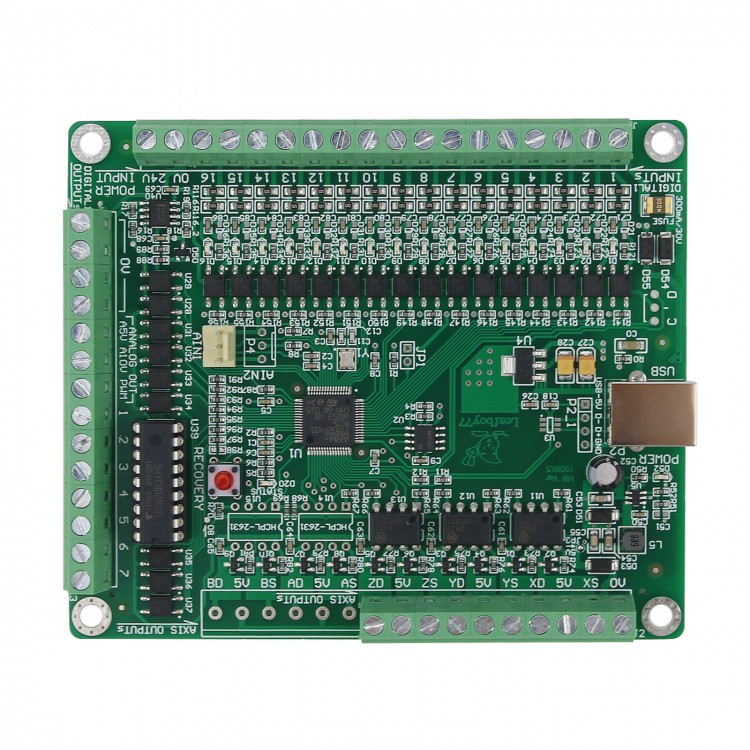

THIS is a 3-axis Mach3 USB interface board (NPN) worked with Mach3.

Features:
- It has a USB interface and no driver is required.
- Support 3-axis linkage, 500KHz output at the same time, connected to servo/stepping. Any one axis can be configured as a pulse spindle.
- 2 real-time electronic handwheel (MPG) input ports, which can connect 2 electronic handwheels at the same time. When the MACH3 electronic handwheel is set in Multi-Step mode, it has the same real-time performance as the CNC machining center, and runs smoothly. There is no delay in the control board, and the performance of the mechanical system is fully utilized.
- With real-time jog, there is no delay in the control panel, the motor responds quickly and quickly, and the experience is zero delay.
- 16 general digital input points, corresponding to 16 LED indicators. Customize the configuration function in MACH3. Support Mach3 spindle speed measurement function.
- 8 general-purpose digital output points, configurable as: spindle start/stop/coolant/custom M code VBasic programming control
- 1 PWM output point for analog spindle speed control: pulse width speed control / 0-10V inverter speed control.
- 2 analog inputs, used to adjust the processing speed / jog speed / spindle speed.
- 1 status indicator, which can indicate the USB connection, and the status of the motor is clear at a glance.
- Using 3 dual-channel 10Mhz high-speed optocouplers, 26 general optocouplers, a total of 29 optocouplers, isolate all input/output. The high-cost design provides complete anti-interference performance and complete safety protection.
- Without PC intervention, the signal is processed independently by the motion control board to ensure that you have real real-time and reliability.
- Support all versions of Mach3. Supports all versions (32-bit/64-bit). For Windows XP to Windows 10, and all Windows versions are plug and play.
- The chip firmware supports upgrades, and users can continuously get the latest function support.
- Provide a complete installation manual with clear documentation, illustrations and detailed descriptions.
- 16 input/8 output/3 axis/spindle speed control signals are all optically coupled and electrically isolated. Highly safe and reliable design.

Environmentally-Friendly Copper Terminals:
Axis output x3 / general output x8 / PWM output x1 / general input x16 / power input


Copper USB Socket:


3-axis output signal (direction signal + pulse signal): 10MHz high-speed optocoupler isolation x6 channels


Optocoupler isolation PWM spindle speed control signal output x1 / Optocoupler isolation general output x8
8-channel output driver chip, using high-quality round pin sockets, convenient for users to replace the chip


Optocoupler isolated NPN input x16 / power input


2 groups of power supplies: BUCK switching power supply + LDO low dropout linear power supply
Tantalum capacitor + self-recovery fuse + anti-reverse diode + TVS anti-surge diode


USB cable (Accessory: USB cable *1.5M, 7mm magnetic ring *2)


External magnification knob


Wiring of Controller Board & Laptop:


Download:
- Installation manual (AKZ250V3) version 1.0.4 (ZIP/7M)  http://leafboy77.com/files/usb_eth_edg381/Mach3_USB_Motion_Board_NPN(AKZ250V3)Installation_Manual(english).zip
- Plugin V1.2.1.0 (eMotionMach3.ZIP/0.3M)  http://leafboy77.com/files/usb_eth_edg381/eMotionMach3.zip
- Download Latest Mach3: http://www.machsupport.com/software/mach3/

Schematic Diagram:
USB main control chip + external magnification knob x2


10MHz high-speed optocoupler isolation x6 channels + optocoupler isolation PWM spindle speed control signal output x1
Optocoupler isolation NPN input x16 + Optocoupler isolation general output x8


Power Supply:


Package Included:
- 1 x Set of USB Motion Controller

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
