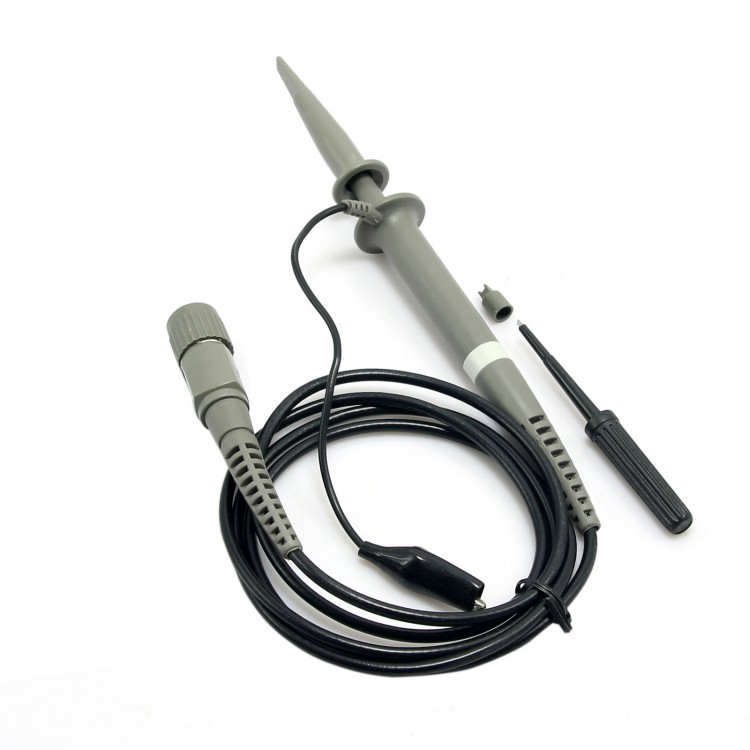

Liliput T3100 X100 Passive 100 MHz 1.2M Oscilloscope Probe Kit 2000V

Availability: In stock, usually dispatched in 1 business day

  • Price:$20.24
  • Price in reward points: 202 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $19.84 $19.43 $18.82 $18.01 Contact US
Quantity:
Buy it now Add cart

You might like

Hanteck T3100 X100 Passive 100 MHz Oscilloscope Probe Kit 2000V

Hanteck T3100 X100 Passive 100 MHz Oscilloscope Probe Kit 2000V

$22.82

(0)
Hantek6074BC Digital Oscilloscope 70MHz Bandwidth 4 CH Channel 1GSa/s Sampling Rate USB2.0 Interface

Hantek6074BC Digital Oscilloscope 70MHz Bandwidth 4 CH Channel 1GSa/s Sampling Rate USB2.0 Interface

$168.46

(0)
Hantek IDSO1070A Osciloscope 70MHz Bandwidth iPhone/iPad/Android/Windows 2CH USA

Hantek IDSO1070A Osciloscope 70MHz Bandwidth iPhone/iPad/Android/Windows 2CH USA

$292.47

(0)
2 Channel USB Oscilloscope PC Oscilloscope 200MS/s 60MHz Bandwidth For Windows Automobiles OSCA02E

2 Channel USB Oscilloscope PC Oscilloscope 200MS/s 60MHz Bandwidth For Windows Automobiles OSCA02E

$122.94

(0)
Hantek6104BC PC USB Oscilloscope Bandwidth 100MHz 4 Independent Analog Channels 2mV-10V/DIV Input Sensitivity

Hantek6104BC PC USB Oscilloscope Bandwidth 100MHz 4 Independent Analog Channels 2mV-10V/DIV Input Sensitivity

$200.51

(0)
2 Channel USB Oscilloscope PC Oscilloscope 100MS/s 35MHz Bandwidth For Windows Automobiles OSCA02

2 Channel USB Oscilloscope PC Oscilloscope 100MS/s 35MHz Bandwidth For Windows Automobiles OSCA02

$127.94

(0)
DS4T1012 150M/1GSa/s/16Mpts Digital Oscilloscope Signal Generator Portable Handheld Oscilloscope

DS4T1012 150M/1GSa/s/16Mpts Digital Oscilloscope Signal Generator Portable Handheld Oscilloscope

$308.15

(0)
Hantek6104BE Car Diagnostic Oscilloscope 100MHz Bandwidth 4 CH Channel 1GSa/s USB2.0 Interface

Hantek6104BE Car Diagnostic Oscilloscope 100MHz Bandwidth 4 CH Channel 1GSa/s USB2.0 Interface

$230.56

(0)

Liliput T3100 X100 Passive 100 MHz Oscilloscope Probe Kit 2000V


Specification:
-  Scope: Applies to all oscilloscopes use.
- Attenuation ratio: Fixed 100: 1
-  Attenuation ratio error: ± 1%
- 1KHz square wave distortion: ≤1%
- Bandwidth: 100MHz -3dB
- Rise time: ≤3.5ns
- On 1MHz square wave impulse: ≤5%
- The maximum input voltage: Standard 2000V (DC + ACp-p) can test 2500V
- Input Resistance: 100MΩ
- Input capacitance: 4-6 P
- Compensation adjustment method: BNC terminal capacitance adjustment
- Length: 1.2m
- Accessories: gray crochet pluggable
- Weight: 65g
- Working temperature: -10 ~ 50 ℃
- Storage Temperature: -20 ~ 75 ℃
- Relative humidity: ≤85%
