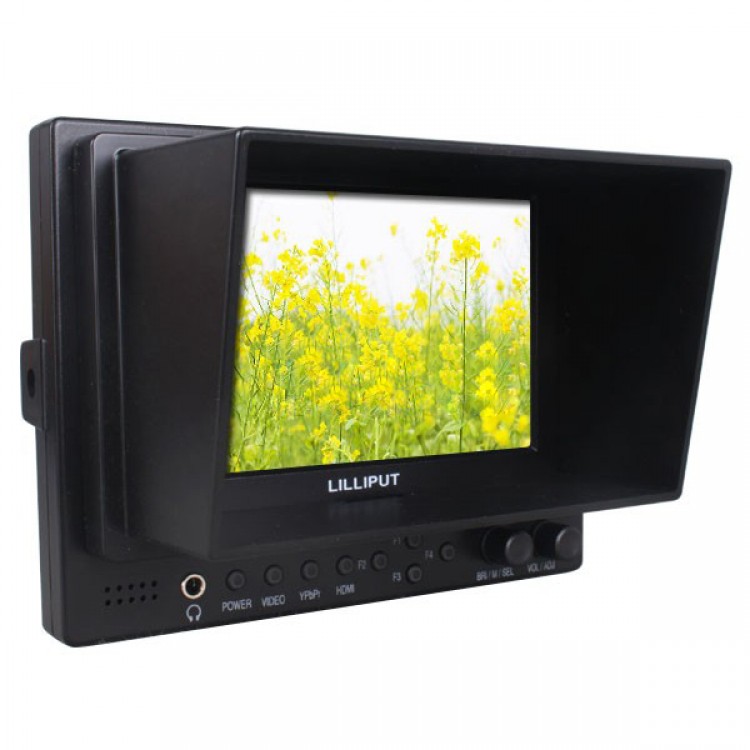

Lilliput 569/O/P Peaking 5" On Camera Video Camcorder HD DSLR LCD Monitor HDMI FPV HD Monitor

Lilliput 569/O/P Peaking 5" On Camera Video Camcorder HD DSLR LCD Monitor HDMI FPV HD Monitor

Feature:
- 569/O/P HDMI input & output
- HDMI & YPbPr Input, to connect with Full HD Video Camera.
- LCD 16:9 Aspect Ratio, max 1920×1080 pixels.
- High Brightness/Contrast & Dizzy-proof monitor with sun shade, to see clearly under sunshine.
- Shooting view aperture, RGB monochromatic display, 16:9/4:3 aspect ratio switch, underscan/overscan switch, Video output.
- DC 6-24V wide range voltage.
- 4 user-definable function buttons (F1, F2, F3 & F4).

Description:
- To help the videographer maintain optimum image quality through various lighting and scene scenarios, this monitor offers a number of test tools including Peaking Filter, False Color Filter, Exposure(zebras) and Brightness histogram functions.

Peaking Filter:
- The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, all color will be removed from the display and a black-and-white image will remain. The internal processor will display - RED color on the screen where sharp edges appear.
- This feature is most effective when the subject is properly exposed and contains enough contrast to be processed

Specifications:
- Panel Size: 5" TFT LCD (16:9)
- Resolution: 800×480, up to 1920×1080
- Brightness: 400cd/㎡
- Contrast: 600:1
- Viewing Angle: 150°/ 130°(H/V)
- Input Voltage: DC 6-24V
- Input Signal: HDMI, YPbPr, AV
- Output Signal: HDMI
- Current: 450mA
- Standby Current: 50mA
- Power Consumption: 5.4W
- Audio Output: ≥250mW
- Earphone Slot: ×1 (front)
- Size(LWD): 151×116×39.5mm/98.1mm (with sun shade)
- Weight: 316g / 386g (with sun shade)


Package list:
- 1 x Lilliput 569/O/P LCD Monitor
- 1 x Sun shade
- 1 x Bracket
- 1 x Shoe mount
- 3 x DV Battery Mount Plate(QM91D&F970+LP-E6)
- 1 x 12V DC adapter
- 1 x Manual
