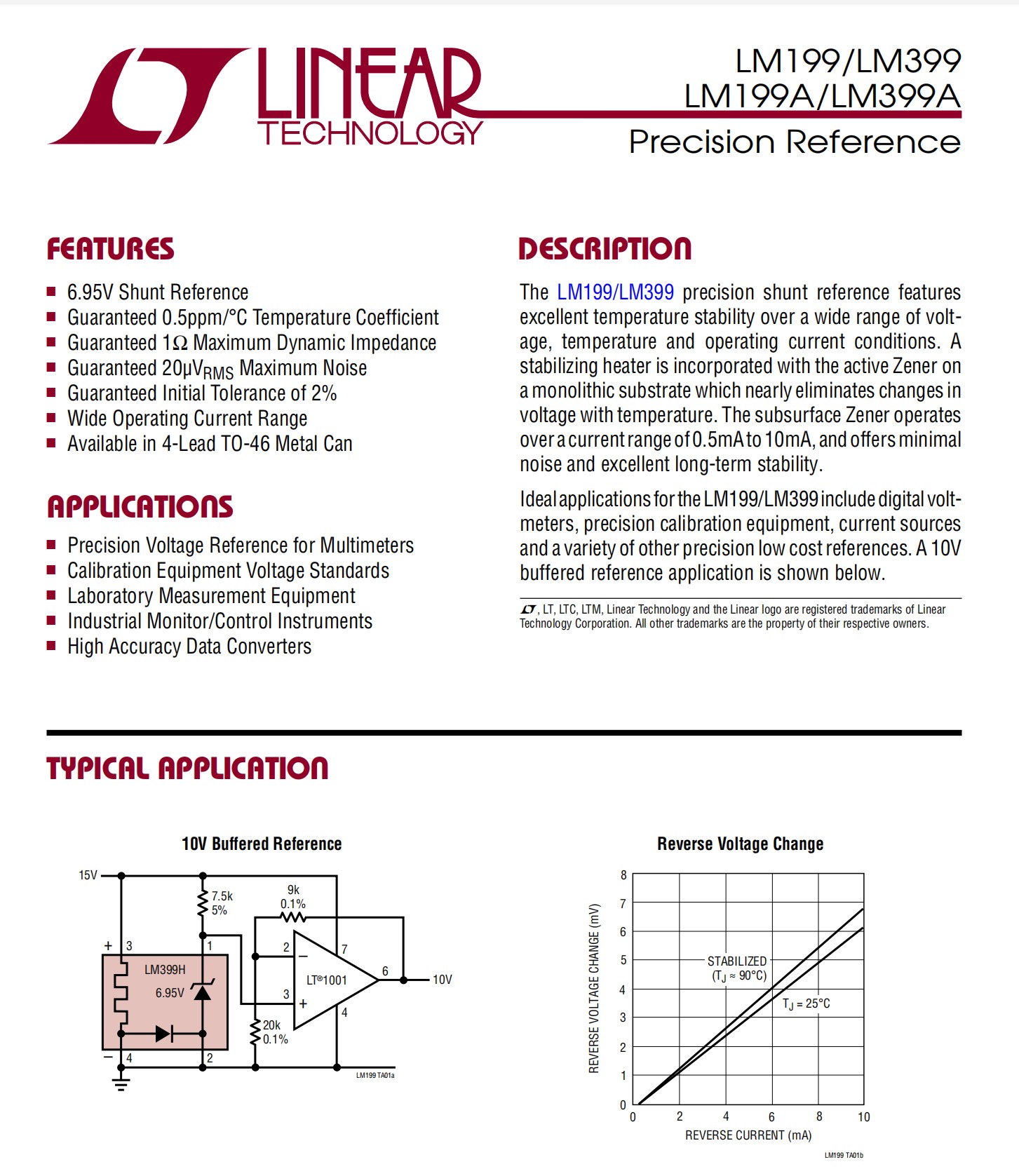

LM399 Power Reference Module 2.5V 4V 5V 6V 7.5V 10V Output Voltage Low Temperature Drift AE
Specification:
Module power supply: +18V
Module output voltage: +5V; +10V; +7.5V; +2.5V; +2V; +4V
Voltage measurement: the FLUKE8864A 6-digit board is used to measure the voltage, and the multimeter performs corresponding measurement.
Voltage Setting:
2.5V: J3 connects to J4, J5 connects to J6, J7 connects to J8
4V: J1 connects to J2, J5 connects to J6, J7 connects to J8
5V: J5 connects to J6, J7 connects to J8
6V: J5 connects to J6, J7 connects to J8, J11 connects to J12
7.5V: J5 connects to J6, J7 connects to J8, J9 connects to J10
10V: J7 connects to J8, J9 connects to J10, J11 connects to J12

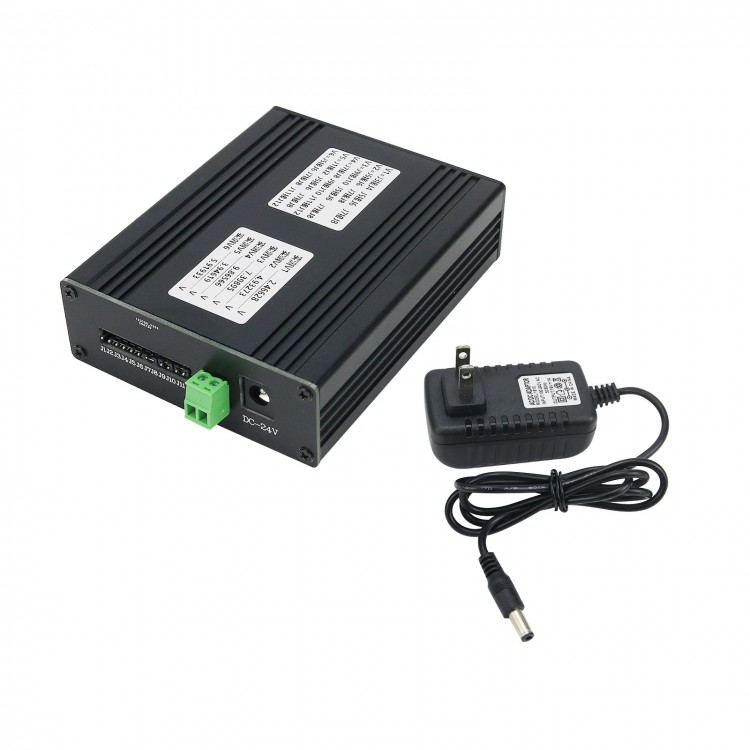

Package List:
-1 x Power Module with Shell
-1 x 18V Power Supply
-1 x Output 2pin Interface
-3 x Jumper Caps
