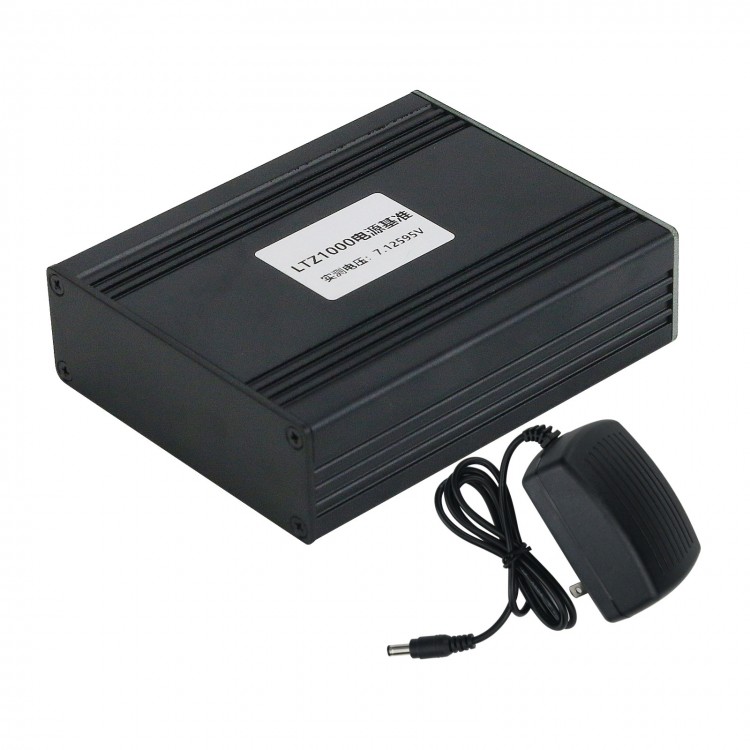

LTZ1000 Assembled High Precision Voltage Reference Module 7V Output With Shell Power Supply

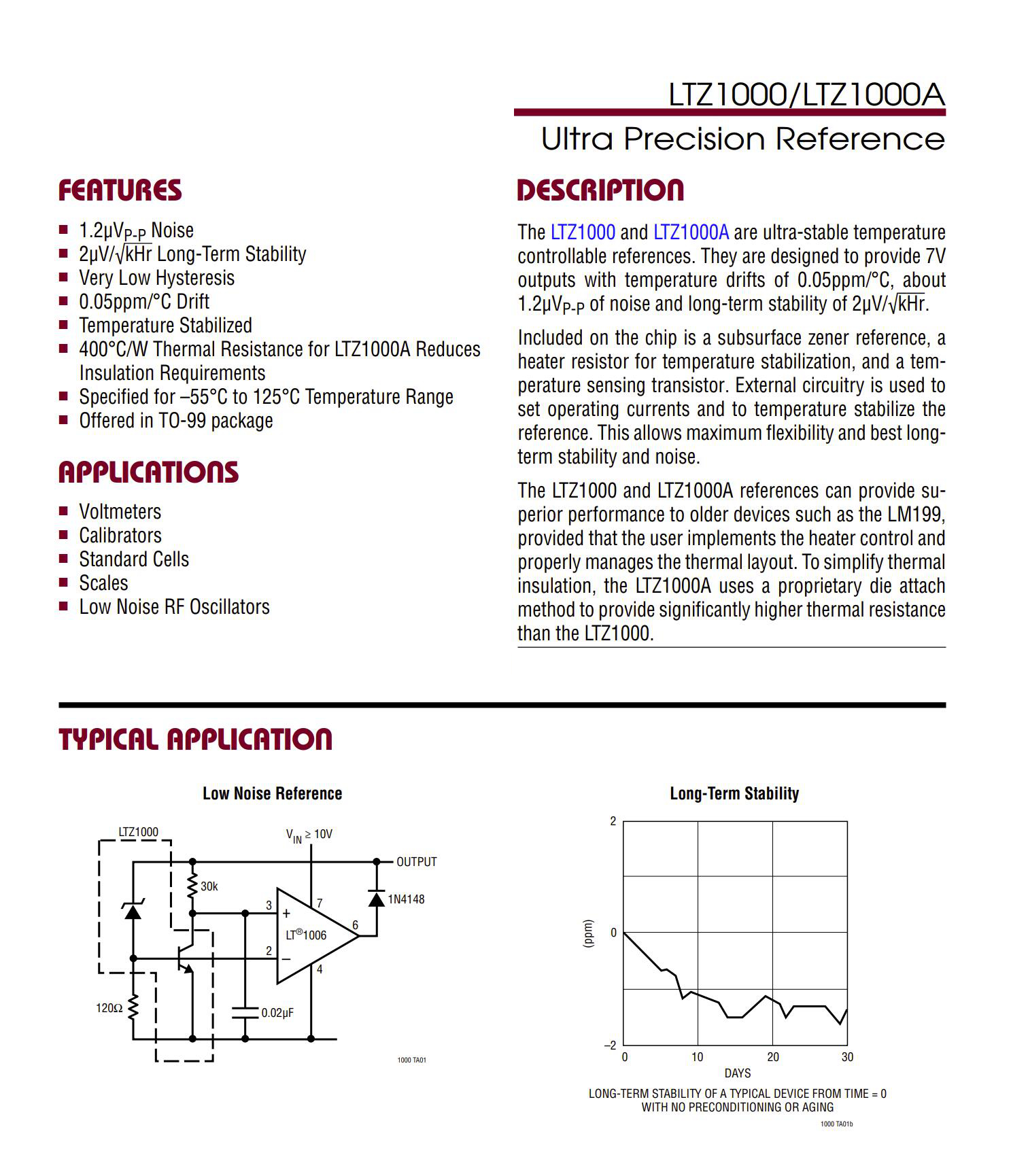

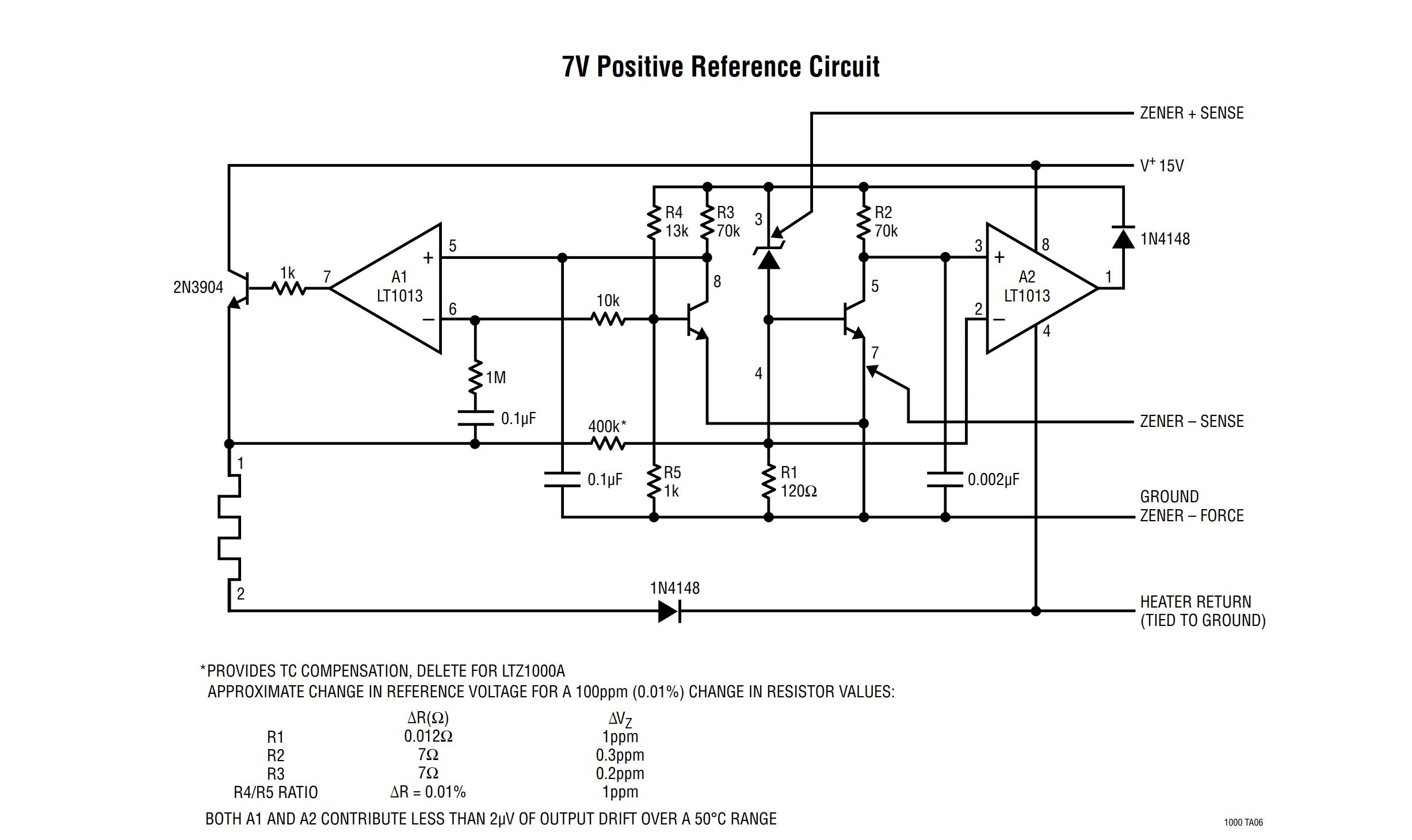

Reference Schematic Diagram:
Module's Features:
- Module power supply: +15V (DCIN, with regulated power supply)
- Output voltage: 7V (specifically based on the voltage calibrated on the shell)
- RJ711 low temperature drift resistor
- Module output: KF2EDG3.81MM-2PIN
- With aluminum alloy shell, size: 10.5*8.5*3CM
- DC 15V power supply input port
- With a wiring terminal
Package Included:
- 1 x Set of Voltage Reference Module
Note:
- It is assembled and ready to use.
