Description:

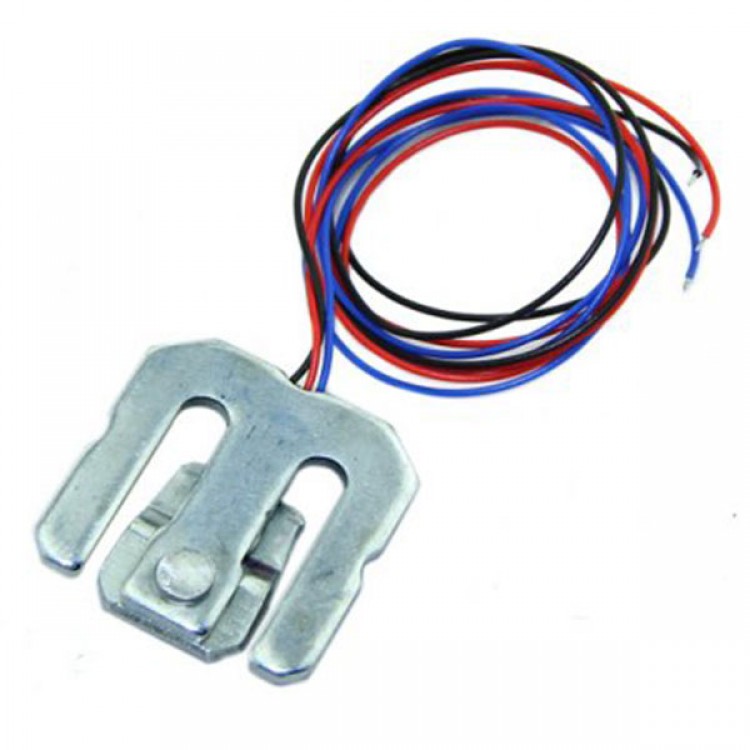

This is a half-bridge load sensor, which is widely used in weight scales. When the half-bridge is being stretched, it sends signal via the red signal wire. You can use multiple load sensors simultaneously to increase the capacity range.

Features:
    Sturdy material
    Up to 50kg sensor range
    parallel use to add additional capacity

Specifications
    Dimension (mm): 28*28*8
    Capacity (kg): 50
    Comprehensive error (%F.S): 0.2
    Output sensitivity (mv/v): 1.1±0.15
    Nonlinearity (%F.S): 0.2
    Repeatability (%F.S): 0.1
    Hysteresis (%F.S): 0.2
    Creep (%F.S/3min): 0.1
    Zero Drift (%F.S/1min): 0.1
    Temp. Effect on zero (%F.S/10°C): 0.2
    Temp. Effect on Output (%F.S/10°C): ≤0.15
    Zero Output (mv/V): ±0.3
    Input Resistance (Ω): 1000±50
    Output Resistance (Ω): 1000±50
    Insulation Resistance (MΩ): ≤2000 (100VDC)
    Excitation Voltage (V): 5~10
    Operation Temp. Range (°C): -10~+50
    Overload Capacity (%F.S): 150
    Method of connecting wire : red= Sig + ; black= Exc –; blue= Exc +
