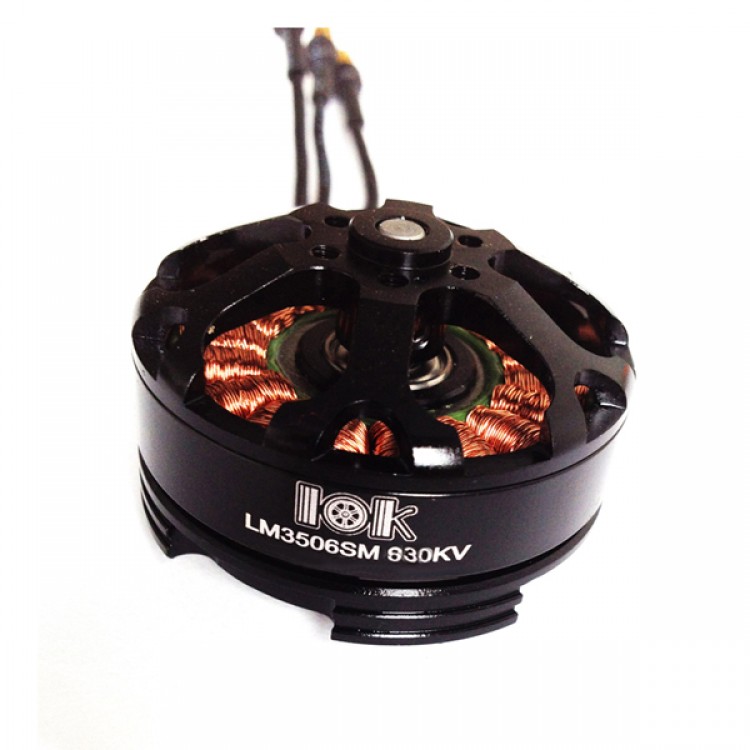

LOK KV830 Disk Type Outrunner Brushless Motor for Quadcopter Hexacopter LM3506SM-830KV
Specifications:
- Model: LM3506SM
- kv 830kv
- Motor diameter:40mm
- Motor Height:23mm
- Stator Diameter:35mm
- Stator Length:6mm
- Weight:69g
- Mounting hole pitch:
- Slot:18
- Class:24
- Li battery:3S 11.1V
- Propeller shaft:6mm
| Number | KV | Weight | External dimensions | Pulp size | Voltage(V) | Electric current(A) | Thrust(G) | G / watt | (W) |
| LM3506SM 830KV | 830 | 70 | 40X23 | 9X4.7 | 11 | 6.7 | 500 | 6.78 | |
| 830 | 70 | 40X23 | 9X4.7 | 11 | 8.5 | Q 575 | 6.15 | ||
| 830 | 70 | 40X23 | 9X6 | 11 | 7.7 | 500 | 5.9 | ||
| 830 | 70 | 40X23 | 9X6 | 11 | 9.5 | Q 600 | 5.74 | ||
| 830 | 70 | 40X23 | 10X3.8 | 11 | 6.7 | 500 | 6.78 | ||
| 830 | 70 | 40X23 | 10X3.8 | 11 | 13.7 | Q 820 | 5.44 | ||
| 830 | 70 | 40X23 | 10X4.7 | 11 | 6.2 | 500 | 7.33 | ||
| 830 | 70 | 40X23 | 10X4.7 | 11 | 13.5 | Q 850 | 5.72 | ||
| 830 | 70 | 40X23 | 10X5 | 11 | 6.7 | 500 | 6.78 | ||
| 830 | 70 | 40X23 | 10X5 | 11 | 10 | Q 675 | 6.14 | ||
| 830 | 70 | 40X23 | 11X4.7 | 11 | 5.5 | 500 | 8.26 | ||
| 830 | 70 | 40X23 | 11X4.7 | 11 | 16.4 | Q 1000 | 5.54 | ||
| 830 | 70 | 40X23 | 11X5.5 | 11 | 6.2 | 500 | 7.33 | ||
| 830 | 70 | 40X23 | 11X5.5 | 11 | 13.8 | Q 875 | 5.76 |
