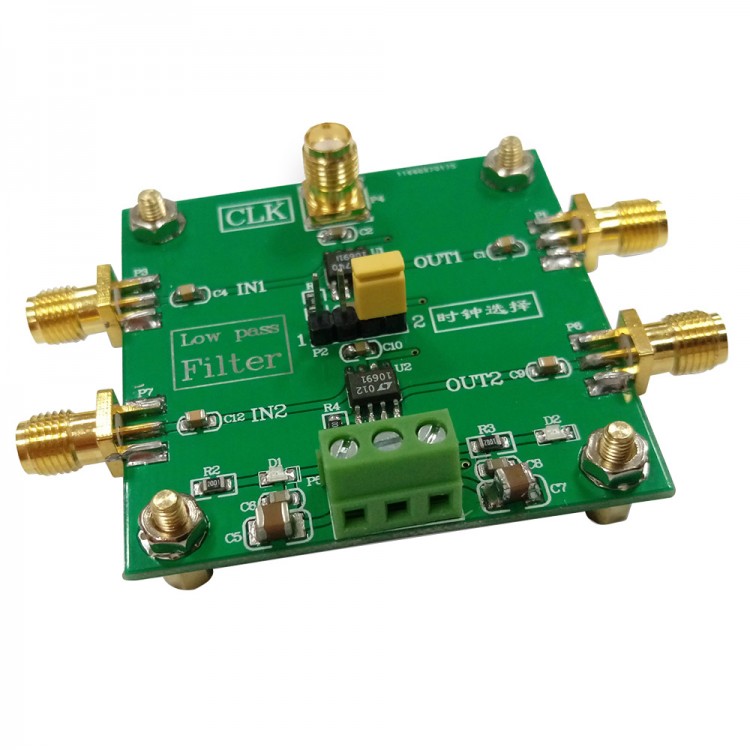

LTC1069 Low Pass Filter Module 8 Order Progressive Elliptic Filter Dual Channel Programmable
Specifications:
- Name: LTC1069 Low Pass Filter Module
- Size: 50*50mm
- Power supply: -+5V
Chip features:
- Adopt SO-8 encapsulation 8 order Elliptic Filter
- Single 3V to 5V working power supply
- Attenuation :-20dB (1.2fCUTOFF)
- Attenuation :-52dB (1.4fCUTOFF)
- Attenuation :-70dB (2fCUTOFF)
Wide dynamic range:
- 110uVRMS bandwidth noise
- 3.8mA power current (5V power supply)
- 2.5mA power current (single 5V power supply)
- 2mA power current power current (single 3.3V power supply)
Chip application:
- Telecommunication filter
- Anti aliasing filter
Package List:
- 1 x LTC1069 Low Pass Filter Module
