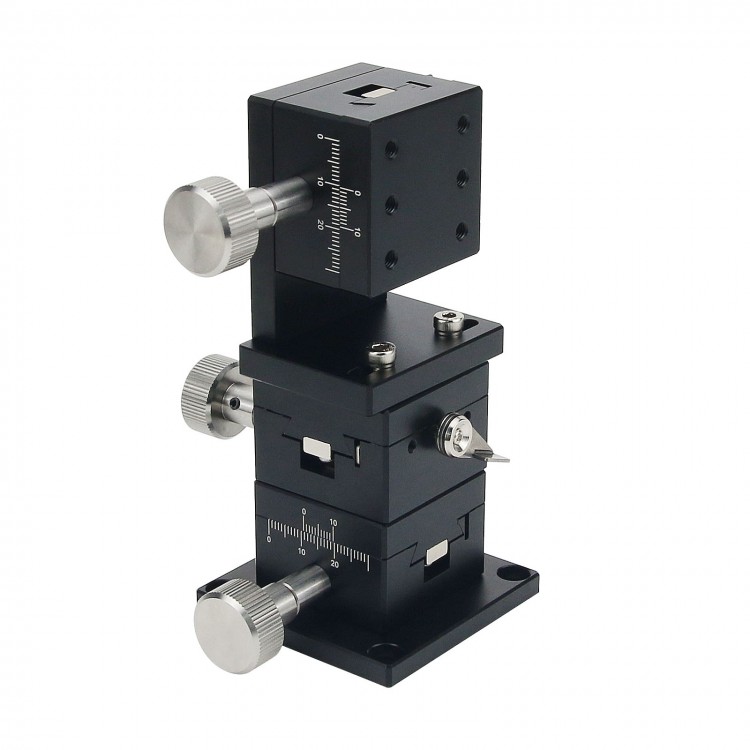

LWD4040 XYZ 40x40mm Manual Sliding Table Trimming Platform Dovetail For CCD Position Lab Optical
Features:
- Selected materials anti-corrosive and durable
- Rack and pinion drive for fast movement and high frequency of use
- Dovetail groove guide, stable operation and strong load capacity
- The slider is made of high-density aluminum alloy sheet, light weight and good quality

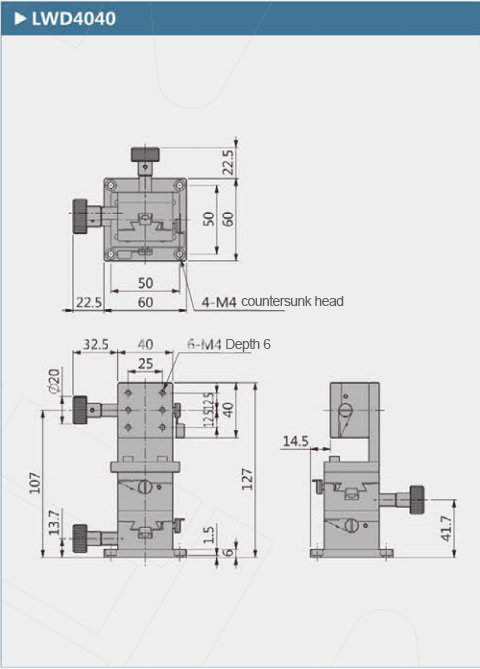

Specifications:
- Model: LWD4040
- Move direction: XYZ (3 Axis)
- Material: Aluminum alloy
- Slider size: 40mm x 40mm
- Stroke: ±10mm
- Load: 29.2N (3kgf)
- Minimum scale: 0.1mm
- Move parallelism: Less than 0.3mm/24mm
Package Included:
- 1 x Sliding Table
