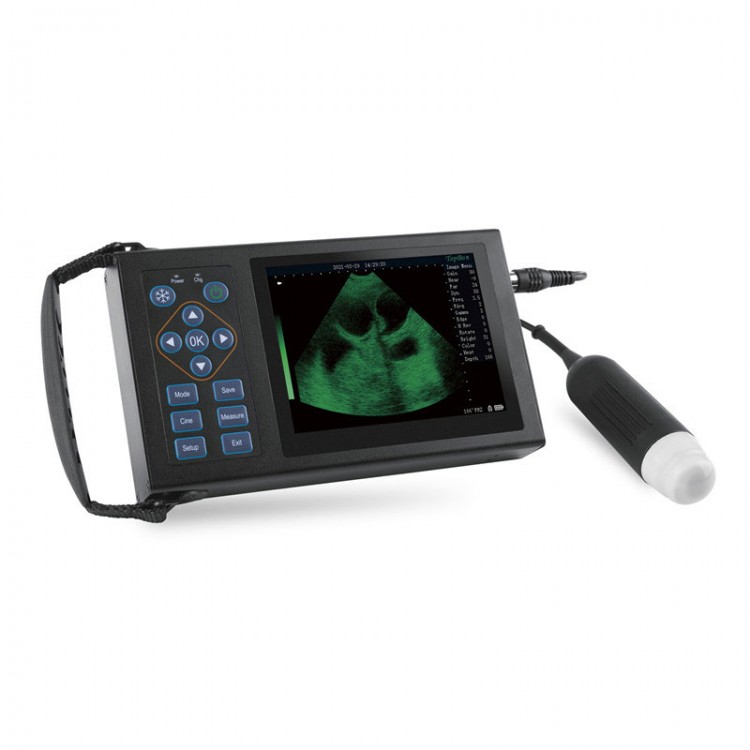

M10 + Mechanical Probe Ultrasonic Diagnostic Instrument Veterinary B-ultrasound Fast Backfat Function

M10 + Mechanical Probe Ultrasonic Diagnostic Instrument Veterinary B-ultrasound Fast Backfat Function

Description:
- Metal brushed body, body thickness of 35mm, metallic texture, cool body, high-strength heat dissipation.
- Sixteen pseudo color functions.
- Conventional measurements: distance, circumference, area, volume, angle, cardiac measurements, lean meat percentage, etc.
- Specialized measurement: Obstetric measurement of 8 kinds of animals (can measure pregnancy days and delivery dates): with gestational week setting function, can modify animal gestational week cycle.
- It has a 256 frame movie playback function, which can be played back frame by frame and video playback. The frame by frame playback can select any image measurement, annotation, and save functions.
- Equipped with grid ruler and point ruler functions, it can quickly read and detect the size of the target.
- Storage: Built-in 8GB storage, can store tens of thousands of images, external USB storage, can browse images locally, can transfer built-in images to USB drive.
- Equipped with image rotation function, the image can be flipped up, down, left, right.
- It has settings such as time and date, button sound switch, winter mode, parameter mode, standby protection, multi language selection, and custom gestational age.
- Large capacity lithium battery, imported 18650 standard battery cells, with a sustainable working time of about 5 hours.
- No noise, high-strength aluminum alloy metal shell with natural heat dissipation design.

Main Features:
- 5.6-inch high definition LCD screen, high strength aluminum alloy metal shell.
- Video playback function: the last test video could be played and observed, convenient for one person to operate and record videos.
- Probe preheating function, do not need to worry about probe freeze in winter.
- Fast backfat function.
- One click to restore factory settings.
- Normal power is less than 9W.
- Permanently store tens of thousands of pictures.
- Support external U disk, monitor,printer,etc.
- Support multi-language customization.
- Application: pigs, sheep, dogs.

Specification:
- Display: 5.6-inch LED display
- Scanning method: 3.5M mechanical fan scanning
- Display modes: B, M, BM, B+B, 4B
- Quick backfat function (mobile caliper)
- Preheating function: one click preheating function in winter, no need to worry about the probe freezing
- Position markers: ≥ 18 types; In addition, there is an annotation function that facilitates text and logo annotation
- Frequency conversion: 2.0MHz, 2.5MHz, 3.5MHz, 4.0MHz, 5.0MHz
- Dynamic range: 0 - 135dB
- Image processing: Gamma correction (0-7), frame correlation (0-3), edge enhancement (0-3), left-right flipping (0-1)
- Maximum display depth: 270mm
- Interfaces: USB interface, video output interface (can be connected to video printers and monitors), power interface, probe interface
- Display magnification: 16 level magnification adjustment
- Gain range: 0 - 100dB
- Near field adjustment range: -31 ~ 0
- Far field adjustment range: 0 ~ 31
- Product size: 206 x 120 x 35mm
- Host net weight: 950g

Package Included:
- 1 x Ultrasonic Diagnostic Instrument
- 1 x Mechanical Probe
