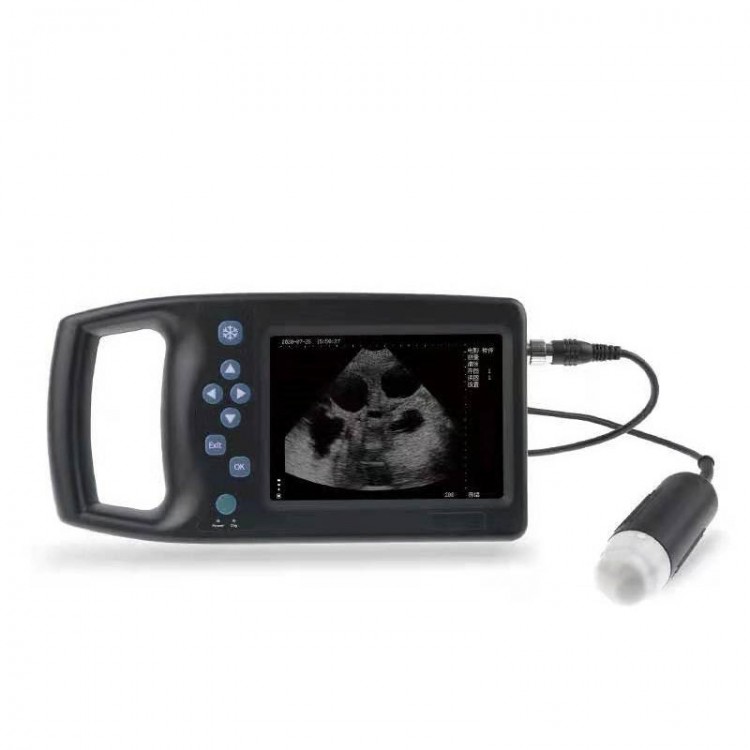

M6 Mechanical Fan Scan Veterinary Ultrasonic Diagnostic Instrument Support Probe Preheating with 5.7-inch UHD LCD

M6 Mechanical Fan Scan Veterinary Ultrasonic Diagnostic Instrument Support Probe Preheating with 5.7-inch UHD LCD

Main Features:
- 5.7-inch ultra-clear LCD screen.
- Video playback function: the last test video could be played and observed, convenient for one person to operate and record videos.
- Probe preheating function, do not need to worry about probe freeze in winter.
- Ten colors are adjustable to observe diseases more clearly.
- Chinese and English can be changed at will.
- Grid ruler, quickly read out the size of the measurement target.
- Fully waterproof probe.
- Applicable object: pig, sheep, dog.

Specification:
- Display: 5.7-inch high resolution display
- Scanning mode: 3.5m mechanical fan scanning
- Video playback: 256 frames, playback image after detection, convenient for single person video recording
- Preheat function: one button preheat function in winter, no need to worry about the probe freezing
- 10 kinds of color adjustable
- Four section frequency conversion: 2.0MHz, 2.5MHz, 3.5MHz, 5.0MHz
- Grid: 0, 1, 2 three modes (point grid, mesh grid), point adjustable distance, easy to quickly read the measurement target size
- Routine measurement: distance, perimeter, area, volume and angle
- Ergonomic handle design, small radian, more comfortable to hold
- Operation interface: through up and down keys to select parameters, left and right keys to adjust size, macro layout, humanized design, easier to operate
- Storage: 127 pictures can be stored permanently
- Dynamic range: 0 - 135dB
- Frame correlation: 0 - 15 step by step
- Maximum display depth: 270mm
- Interface: USB interface, video output interface, power interface, probe interface
- Gain range: 0 - 100db
- Near field adjustment range: - 31 ~ 0
- Far field adjustment range: 0 ~ 31
- Character brightness 0 - 255 can be adjusted step by step; character color 16 kinds can be adjusted
- Energy saving setting: 0 - 120 minutes can be adjusted step by step, automatic power off when set the number of minutes in the specified time without operation
- With time and date, key tone switch, standby protection, multi language selection, etc.
- Large capacity lithium battery, imported 18650 standard cell, can work for about 5 hours
- Host size: 245 x 130 x 44mm
- Host weight: 720g

Package Included:
- 1 x Ultrasonic Diagnostic Instrument
