T1 Digital Ultrasound Diagnostic Instrument Veterinary Sonar Scanner 8-inch LCD for Cattle/Sheep Uterus Test

T1 Digital Ultrasound Diagnostic Instrument Veterinary Sonar Scanner 8-inch LCD for Cattle/Sheep Uterus Test

Features:
- The whole machine is waterproof and dustproof, and can be directly rinsed with water for easy disinfection and cleaning.
- Fully Chinese touch buttons, easy to operate and pick up.
- Internal and external dual screens, explosion-proof and scratch resistant.
- Display: Ultra high definition 8-inch ultra large LCD medical display screen with 800x480 resolution, wide viewing angle, 120° for normal observation, high brightness screen, can be viewed normally outdoors.
- The entire screen includes touch buttons that can be flipped, making it easy to operate with both hands.
- Supported probes (not included): 3.5MHz abdominal convex array probe, 6.5MHz micro convex small animal probe, 6.5MHz linear array large animal rectal probe, 4.0MHz convex array large animal rectal probe, 7.5MHz high-frequency linear array probe, 3.5MHz backfat probe.
- Equipped with automatic backfat measurement function (intelligent one click measurement), fast backfat measurement function (mobile reading ruler), and manual backfat measurement function.
- Display modes: B, B+B, 4B, B+M, M.
- Frequency conversion: any probe has a five stage frequency conversion function.
- Electronic focusing: four stage electronic focusing.
- Image mirroring: rotate the mirror up, down, left, and right, and flip the interface in black and white.
- Equipped with image rotation function, the image can be flipped up, down, left, and right.
- Position markers: ≥ 18 types; In addition, there is annotation function, which facilitates text and font annotation.
- Conventional measurements: distance, perimeter, area, volume, angle.
- Specialized measurement: obstetric measurement, cardiac measurement, and lean meat percentage measurement of 8 animals.
- Equipped with grid ruler and point ruler functions, it can quickly read and detect the size of the target.
- Character display: gain, frequency, dynamic, date, time.
- It has a 256 frame movie playback function, which can be played back frame by frame and video playback. The frame by frame playback can select any image measurement, annotation, and save functions.
- Storage: 32G memory card, external USB storage, can browse pictures locally, can transfer built-in pictures to USB drive.
- It has settings such as time and date, video output, TV format, button sound switch, parameter mode, standby protection, multi language selection, custom gestational age, etc.
- Battery level indicator, USB flash drive indicator, prompt information display.
- Equipped with a 10000mAh battery, it can work for nearly 8-10 hours under normal conditions.

Functions:
- System settings function
- Mode conversion function
- Adjustable near-field, far-field, total gain, and dynamic range functions
- Variable frequency function
- Frame related functions
- Image post-processing function
- Image edge enhancement function
- Color function
- Brightness adjustment function
- Depth adjustment function
- Image freezing/thawing function
- Image rotation function
- Body marking function
- Distance, perimeter, area, volume, heart rate, and cycle measurement functions
- Backfat thickness, eye muscle thickness, and lean meat percentage measurement function
- Automatic measurement of backfat function
- Quickly measure backfat function
- Rich obstetrics software package, including dozens of obstetrics tables for 8 different animals, capable of automatically calculating gestational age and due date
- Routine cardiac measurement function
- Image USB/TF card storage and browsing function
- Single point and multi-point combination focusing function
- Energy saving protection function
- Text annotation function
- Image movie playback function
- Standard conversion function
- TV/VGA output function
- Grid setting function
- One click factory reset

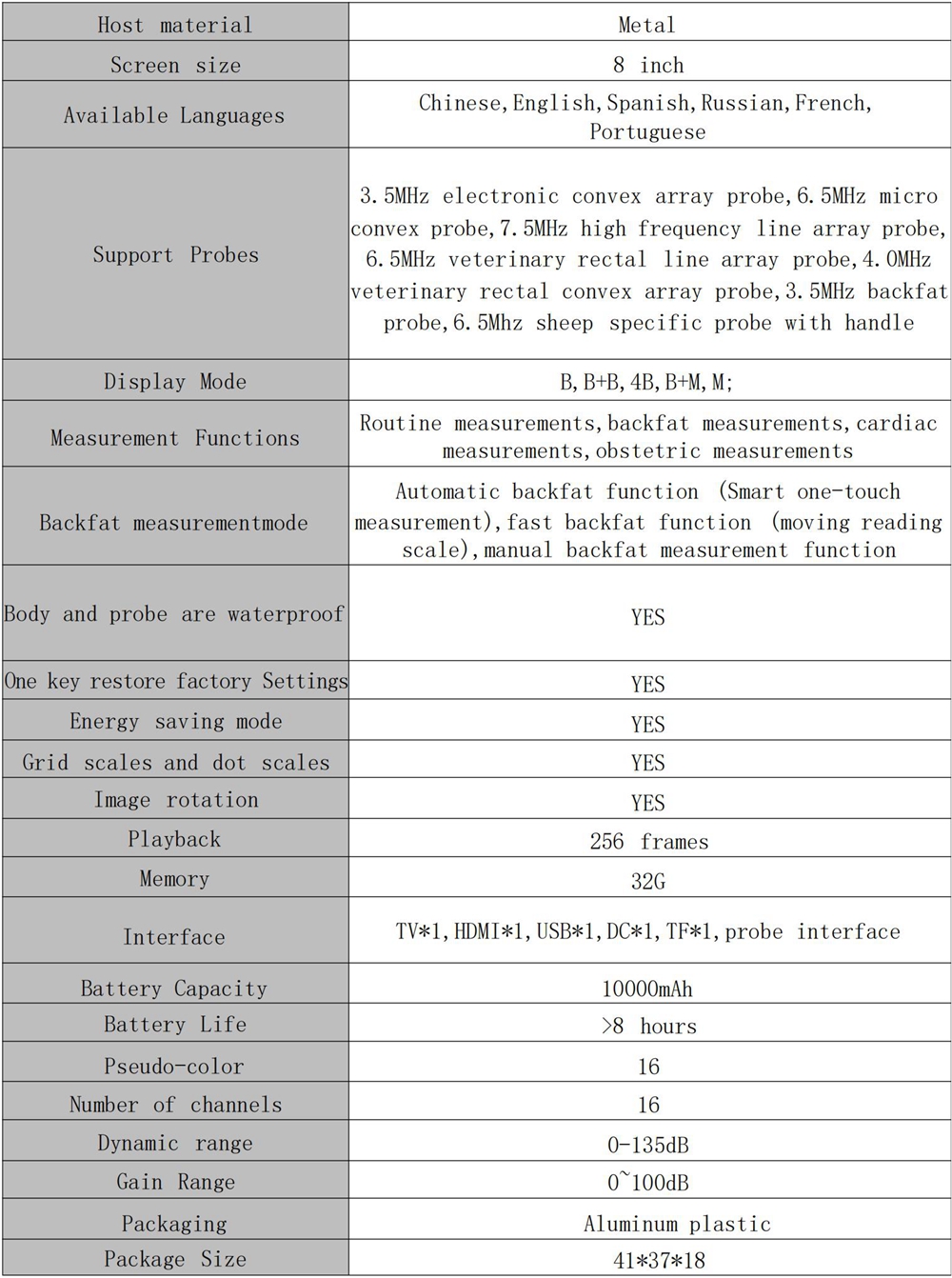

Specification:
- Dynamic range: 0 - 135dB
- Image processing: gamma correction (0-7), frame correlation (0-3), line correlation (0-5), edge enhancement (0-3), left-right flipping (0-1), sixteen types of pseudo-color processing
- Blind zone: ≤4
- Maximum display depth: 3.5MHz: 270mm 6.5MHz: 189mm 7.5MHz: 165mm
- Interfaces: USB interface, HDMI-compatible HD interface, TF interface, power interface
- Geometric accuracy: horizontal ≤5%, vertical ≤5%
- Resolution: lateral ≤2mm, axial ≤1mm
- Display magnification: 16 display modes
- Gain range: 0 - 100dB
- Near field adjustment range: -31 ~ 0
- Far field adjustment range: 0 ~ 31
- Product size: 41 x 37 x 18cm
- Host net weight: 3.9kg

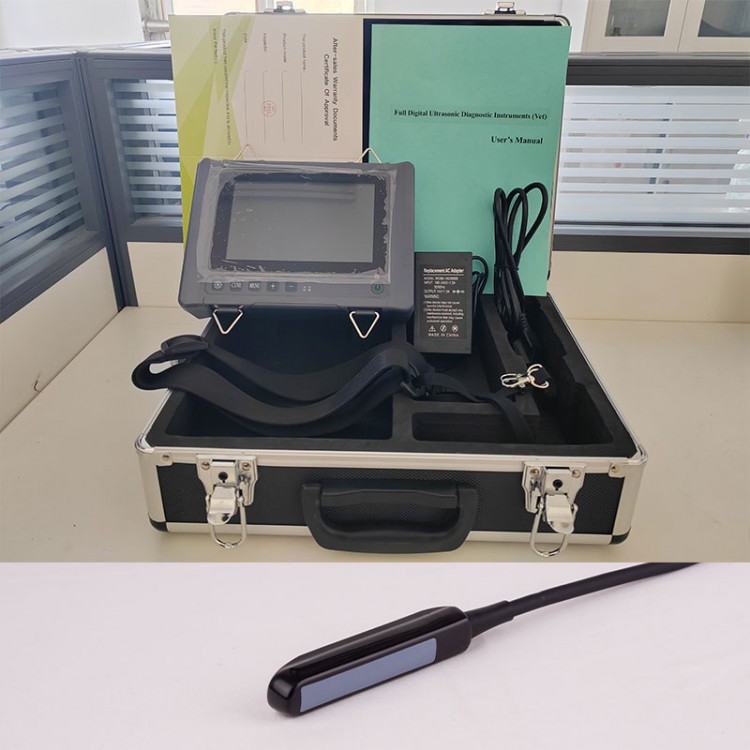

Package Included:
- 1 x Host
- 1 x Power Adapter
- 1 x Rectal Linear Probe
- 1 x 32GB Memory Card
