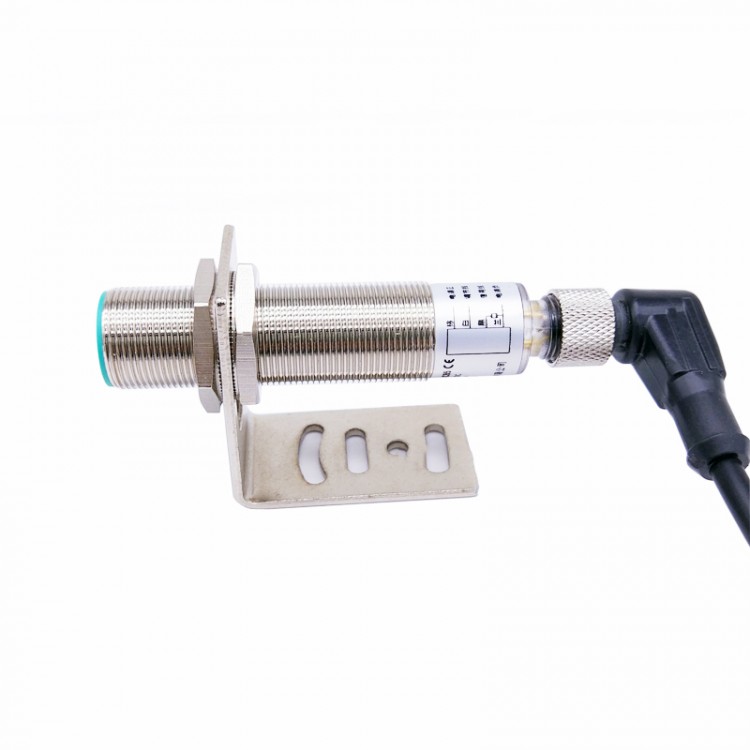

M18 0.05-1M Linear Displacement Sensor Ultrasonic Distance Sensor Output RS485 Signal

M18 0.05-1M Linear Displacement Sensor Ultrasonic Distance Sensor Output RS485 Signal

Features:
- Built with Intelligent Chip
- Threaded Design
- Quality Wires
- Appealing Exterior Design
- Output RS485 Signal

Basic Parameters:
- Item Name: Ultrasonic Distance Sensor
- Dead Zone: 50mm
- Resolution: 1mm
- Standard Measured Board: 100 x 100mm
- Ultrasonic Frequency: 200KHz
- Sensor Frequency: 8-16Hz
- With Temperature Compensation: Yes
- IP Level: IP 67
- Power Consumption: 20mA
- Measurement Range: Adjustable 50 to 1000mm (0.05 to 1M)
- Accuracy: 0.1%
- Working Temperature: -20 to 60℃
- Storage Temperature: -40 to 70℃
- Output: RS485 Signal (Modbus Protocol)
- Voltage of Power Supply: 10 to 30V DC

Wiring:
- Brown Wire to Power Supply +
- Black Wire to R/T +
- Blue Wire to Power Supply -
- White Wire to R/T -

Package Included:
- 1 x Ultrasonic Distance Sensor

Cautions:
- Please connect its metal housing with the ground while using, increasing its capacity to against electromagnet interference. When it is connected to devices with strong electrostatic interaction, please apply a sensor with plastic housing (optional) to avoid damage.
- Please not use this sensor in an environment with strong acid, strong alkali, strong electromagnetic interference, or strong vibration.
- For your safety, please not use it in a vacuum or explosion-proof zone.

Note:
- Please take off the black protective cover before using.
- Technical parameters, exterior design and dimensions can be customized. If needed, please contact us for details.
