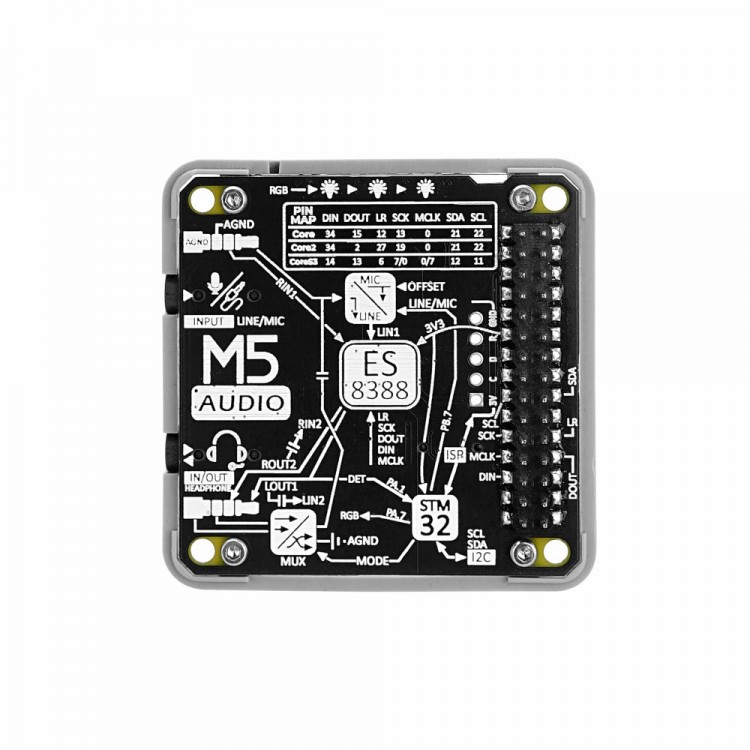

M5Stack Module Audio ES8388 Audio Interaction Expansion module HiFi Audio Codec Support 2-Channel Microphone Input

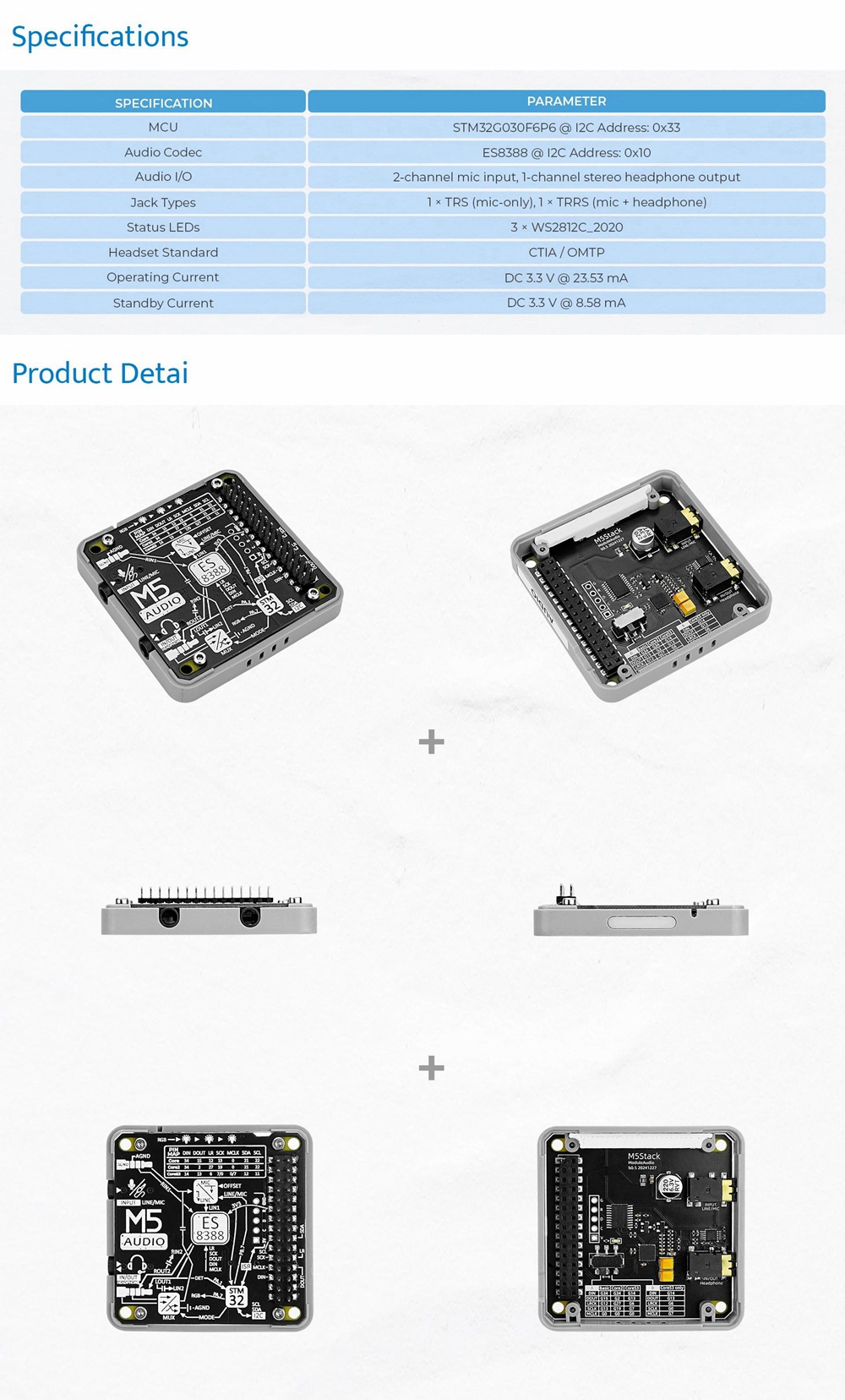

Specification:
- MCU: STM32G030F6P6 at I2C Address: 0x33
- Audio codec: ES8388 at I2C Address: 0x10
- Audio input/output: 2-channel mic input, 1-channel stereo headphone output (HPOUT_L/HPOUT_R)
- Socket type: 1 x TRS (dedicated for microphone), 1 x TRRS (microphone/speaker combined socket)
- Status indicator: 3 x WS2812C_2020
- Headphone standard switch: CTIA (US)/OMTP (national standard)
- Working current: DC3.3V at 23.53mA
- Standby current: DC3.3V at 8.58mA
- Working temperature: 0℃ ~ 40℃

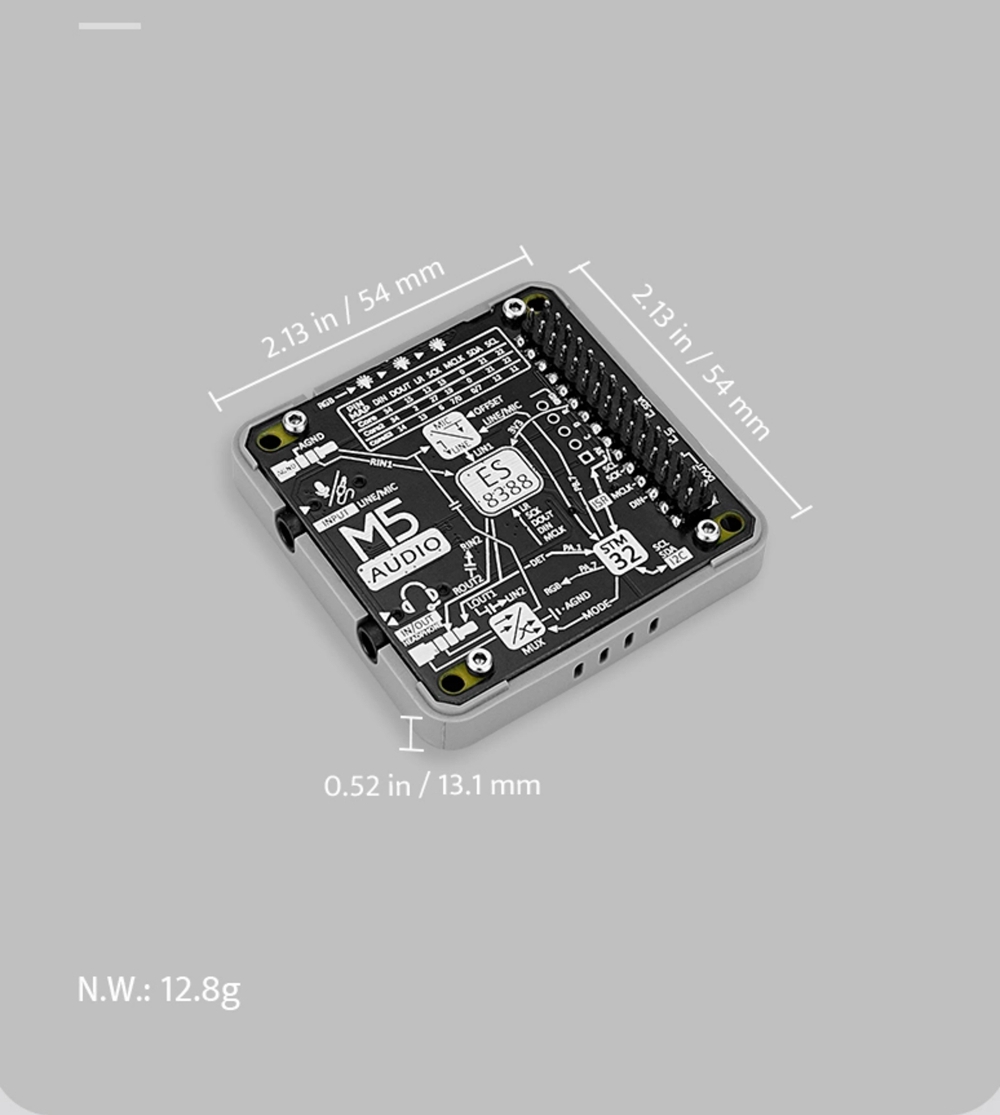

- Product size: 54.0 x 54.0 x 13.1mm
- Net weight: 12.8g
Package Included:
- 1 x Audio Module
