M5Stack StickC Plus2 RF 2-IN-1 Module 433MHz CC1101 + 2.4GHz NRF24 Dual Mode RF Development Board with Shell

M5Stack StickC Plus2 RF 2-IN-1 Module 433MHz CC1101 + 2.4GHz NRF24 Dual Mode RF Development Board with Shell

Description:
- This dual-mode RF development board is specially designed for the M5Stack StickC Plus2, integrating both A01-S2G4A00S2A (2.4GHz NRF24) and A07-S433A10S2A (433MHz CC1101) modules. Fully compatible with Bruce firmware, it features a plug-and-play design and supports both short-range and long-range wireless communication, making it ideal for IoT, wireless control, and RF development projects.

Key Features:
- Dual-module design: supports both NRF24 (2.4GHz) and CC1101 (433MHz) communication.
- Tailored for M5Stack StickC Plus2, plug-and-play.
- Bruce firmware compatible, no complex setup required.
- High-performance RF communication for reliable data transmission.
- Physical switch for easy module selection.

Module Details:
- 2.4GHz NRF24 Module (A01-S2G4A00S2A): stable, high-speed short-range wireless communication
- 433MHz CC1101 Module (A07-S433A10S2A): low-power, long-range RF transmission
- Reliable performance with optimized signal layout and power design

Usage Instructions:
1. Flash Bruce Firmware (First-Time Setup):
- To use this board with StickC Plus2, first flash the Bruce firmware: Go to the official flasher: https://bruce.computer/flasher
- Follow the instructions to select the correct device (StickC Plus v1.1/v2) and complete the flashing process

2. Hardware Connection:
- Connect the RF board to the M5Stack StickC Plus2 using the Grove cable or GPIO jumper wires.
- The GPIO pin-out is pre-configured and compatible with Bruce firmware.

3. Switching Between Modules:
- This board includes a physical switch to toggle between the two RF modules.

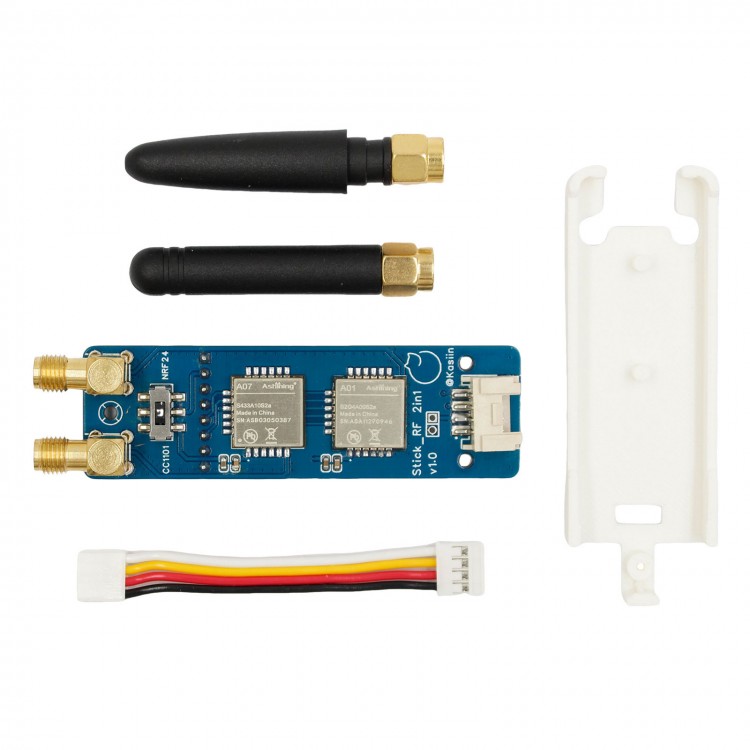

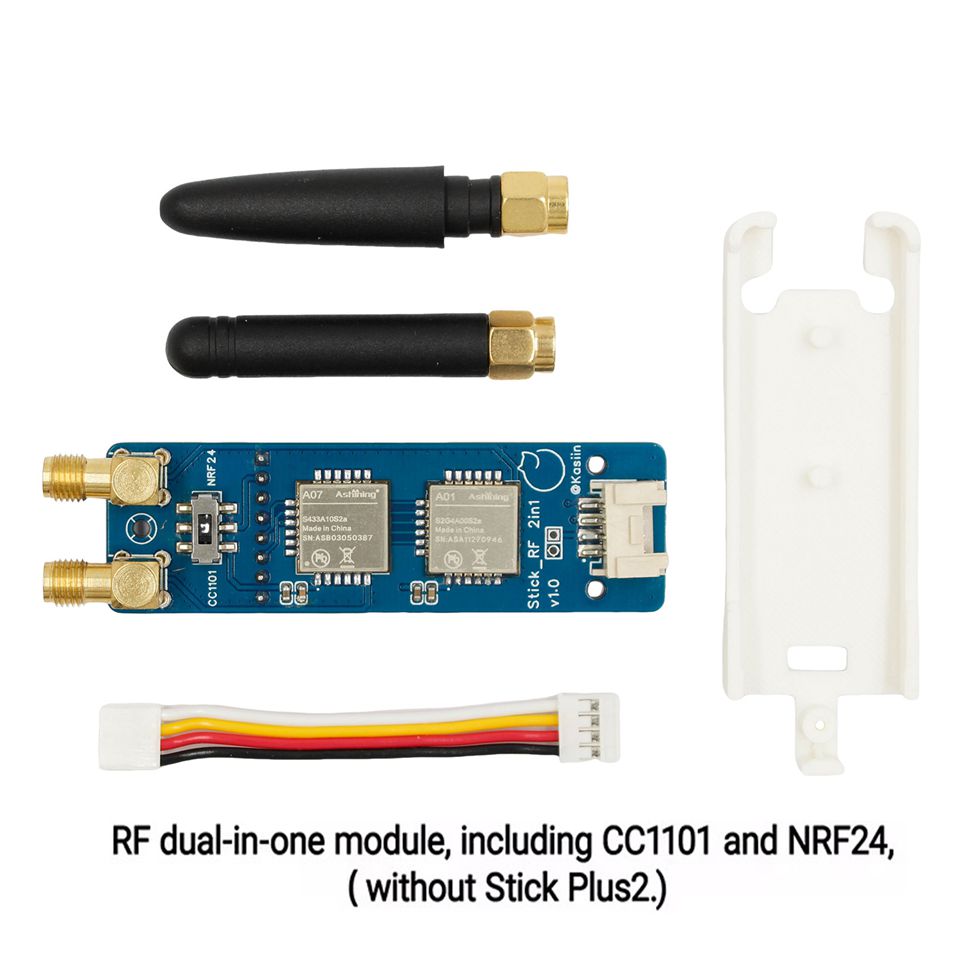

Package Included:
- 1 x RF Module
- 2 x Antennas
- 1 x Pin Cable
- 1 x Shell

Note:
- The M5Stack StickC Plus2 displayed in the picture is not included.
