MACH3 4-Axis USB CNC Controller Card Smooth Stepper Motion Control for CNC Engraving 12-24V 100KHz

Availability: In stock, usually dispatched in 1 business day

  • Price:$23.44
  • Price in reward points: 234 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $22.97 $22.50 $21.80 $20.86 Contact US
Quantity:

MACH3 4-Axis USB CNC Controller Card Smooth Stepper Motion Control for CNC Engraving 12-24V 100KHz

Description:

This USB motion control card has the below advantages: small volume, easy to use, has a strong anti-interference ability, No need to install any USB drivers,it can be used after plugging in the computer. ,suitable for all versions of Windows. Fully supporting all Mach3 versions.

Specifications:

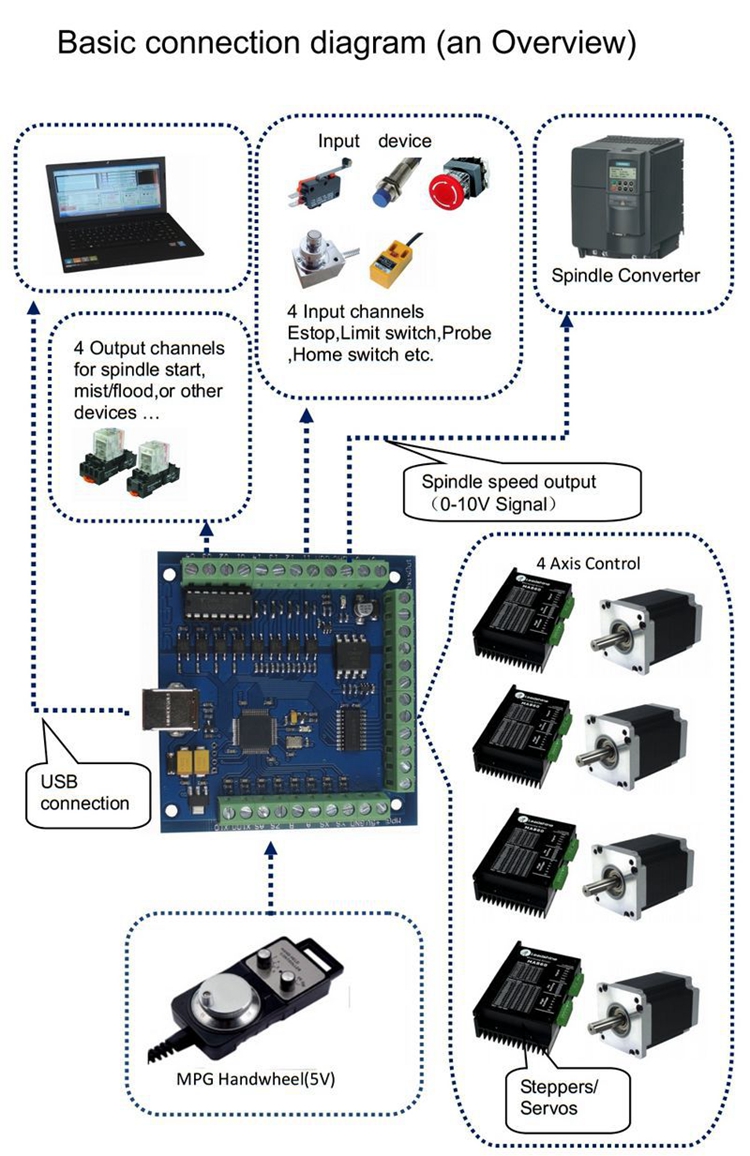

- Support for 4-axis linkage, you can connect four stepper motor drives or servo drives;
- Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor;
- Support automatic probe tool
- Support Emergency input
- Support for limit switch
- Support for connecting electronic handwheel
- Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable.
- Have 0-10V output port, you can use mach3 software to control the spindle motor speed.
- 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device
- 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device;
- 1 status LED, indicate connection status on the board.

Package Included:
- 1 x MACH 3 4-Axis USB CNC Controller Card
- 1 x USB Cable
- English user manual and mach3 software will send by a CD or Email
