MACH3 USB CNC 5 Axis 100KHz Stepper Motion Control Card Breakout Board for CNC Engraving 12-24V with 3 Drivers

Availability: In stock, usually dispatched in 1 business day

  • Price:$150.93
  • Price in reward points: 1509 Reward Points: 15
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $147.91 $144.89 $140.36 $134.33 Contact US
Quantity:

MACH3 USB CNC 5 Axis 100KHz Stepper Motion Control Card Breakout Board for CNC Engraving 12-24V with 3 Drivers

Description:

- Various versions of MACH3 and the highest version are supported.
- It supports for Windows XP, WIN7, WIN8, WIN10, 64 bit systems, laptops, and tablets.
- Peripheral wide voltage input 12-24V, with anti reverse connection function.
- All input signals are isolated by optocoupler and can be connected to emergency stop, tool setting, limit, zero return, etc. to ensure computer safety. Input can be connected to mechanical switch or proximity switch. (NPN normally open)
- An optocoupler isolated 0-10V analog voltage output can control the spindle speed by the transformer with 0-10V analog voltage input.
- PWM output (5V level) is provided, with PWN spindle speed regulator.
- Four output ports (5V level) are provided, which can be connected to relay module with optocoupler to control water cooling, spray, etc.
- The maximum 100KHZ output per axis can be connected to common anode and common cathode, and the input level is 5V. Step or servo motor actuator with optocoupler input (pulse+direction).
- At the same time, 5-axis interface power socket (XH2.45) is provided for convenient connection.
- Provide electronic handwheel interface.

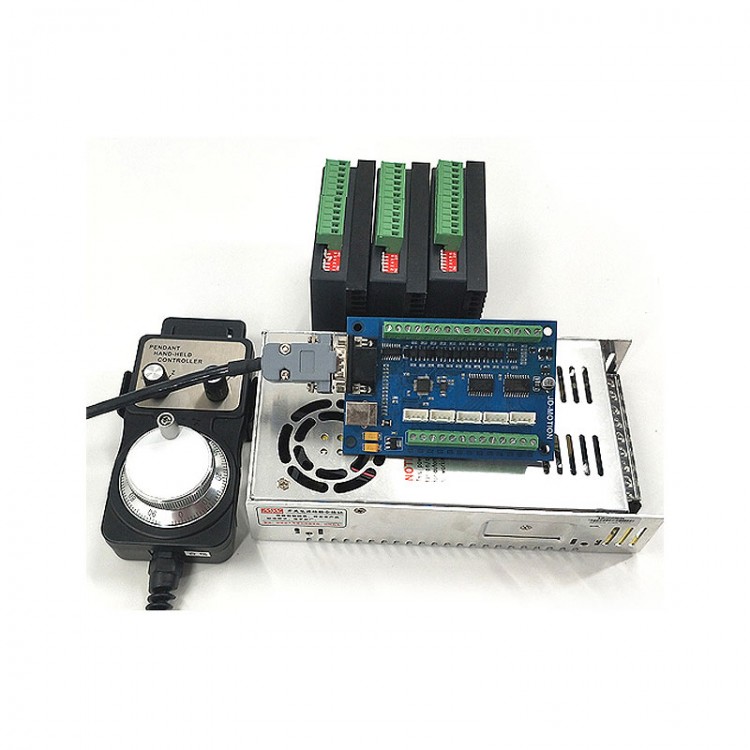

Package Included:
- 1 x Control Card
- 3 x Diver
- 1 x Power Supply
- 1 x Handwheel
