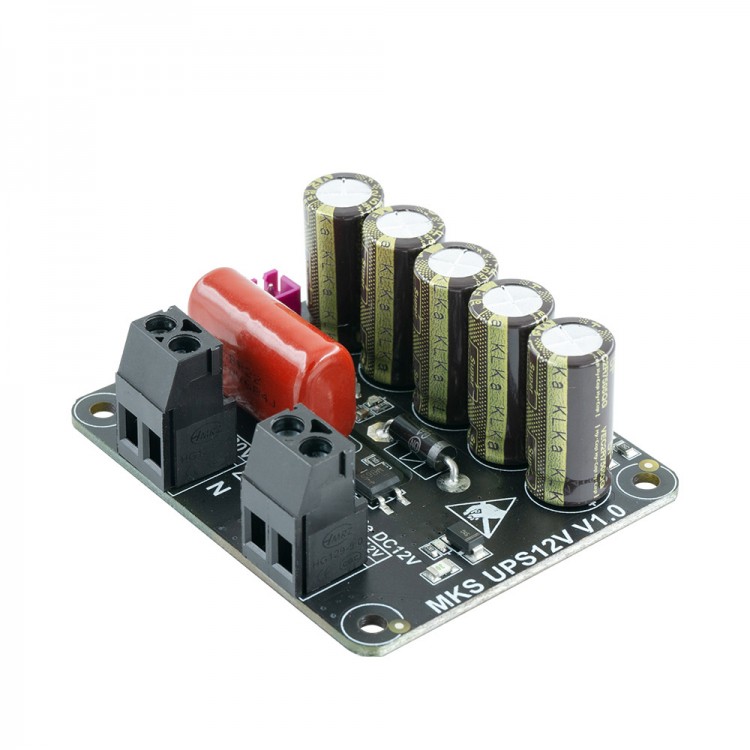

Makerbase MKS UPS 12V Module 3D Printer Parts Power Outage Detection Power Off Lift Z Axis
Description:
MKS UPS module is used to lift Z axis when the power off. It can remove extruder from the model to protect the model.
Working Process:
1. When AC power supply is cut off, the MKS UPS detects it and send signal to motherboard.
2. The power stored in the MKS UPS and PSU continues to supply power to the motherboard.
3. Motherboard detects the power-off signal, stop printing, turn off hotbed and hotend, lift z axis.
4. The power stored in MKS UPS is generally lift z axis 20mm-200mm.
5. When power supply is restored, resume printing through the 12864/2004 LCD screen.
Package List:
-1 x MKS UPS Module 12V
-2 x Power Cable
-1 x 3pin Motherboard Cable
Note:
-MKS UPS12V can only be used for DC 12V power.
-Motherboard needs to use Marlin2.0 firmware with 12864/2004 LCD screen.
-Temporarily does not support MKS Robin series (except Robin E3 / E3D) and MKS TFT screen.
-MKS UPS12V and MKS UPS24V modules detect external AC power supply.
Wiring:
Take MKS SGEN_L as an example
Firmware Settings:

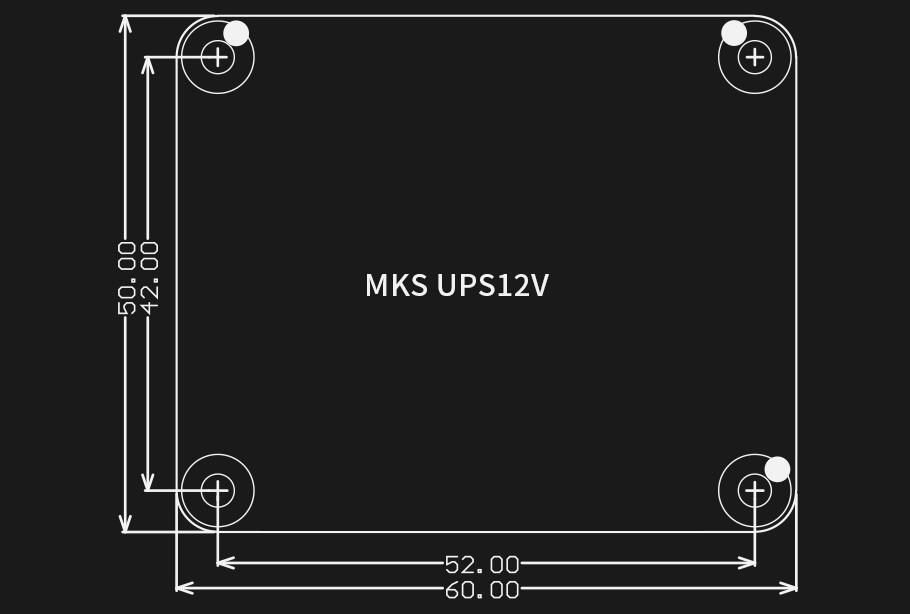

Size:
