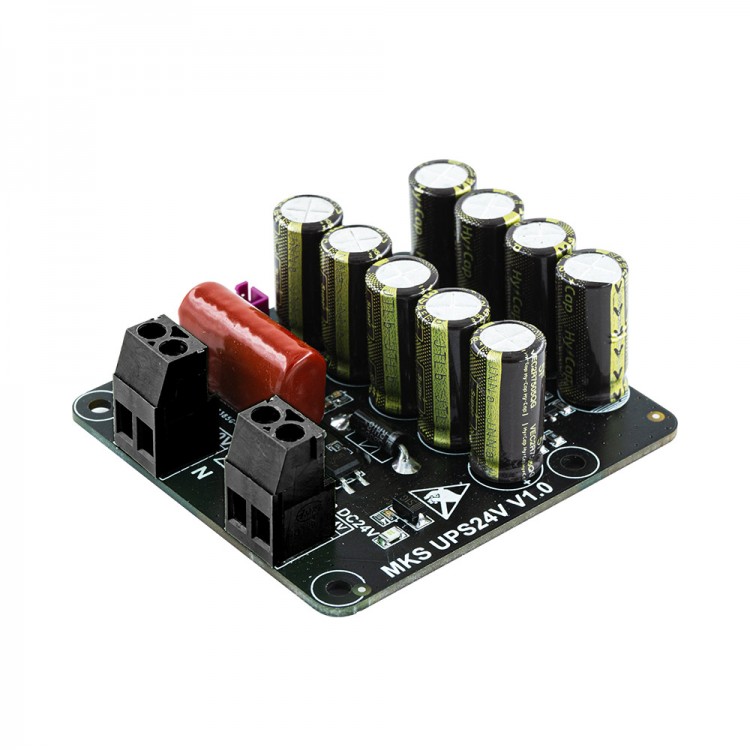

Makerbase MKS UPS 24V Module 3D Printer Parts Power Outage Detection Power Off Lift Z Axis
Description:
MKS UPS module is used to lift Z axis when the power off. It can remove extruder from the model to protect the model.
Working Process:
1. When AC power supply is cut off, the MKS UPS detects it and send signal to motherboard;
2. The power stored in the MKS UPS and PSU continues to supply power to the motherboard;
3. Motherboard detects the power-off signal, stop printing, turn off hotbed and hotend, lift z axis;
4. The power stored in MKS UPS is generally lift z axis 20mm-200mm;
5. When power supply is restored, resume printing through the 12864/2004 LCD screen.
Package List:
-1 x MKS UPS Module 24V
-2 x Power Cable
-1 x 3pin Motherboard Cable
Note:
-MKS UPS24V can only be used for DC 24V power.
-Motherboard needs to use Marlin2.0 firmware with 12864/2004 LCD screen.
-Temporarily does not support MKS Robin series (except Robin E3 / E3D) and MKS TFT screen.
-MKS UPS12V and MKS UPS24V modules detect external AC power supply.

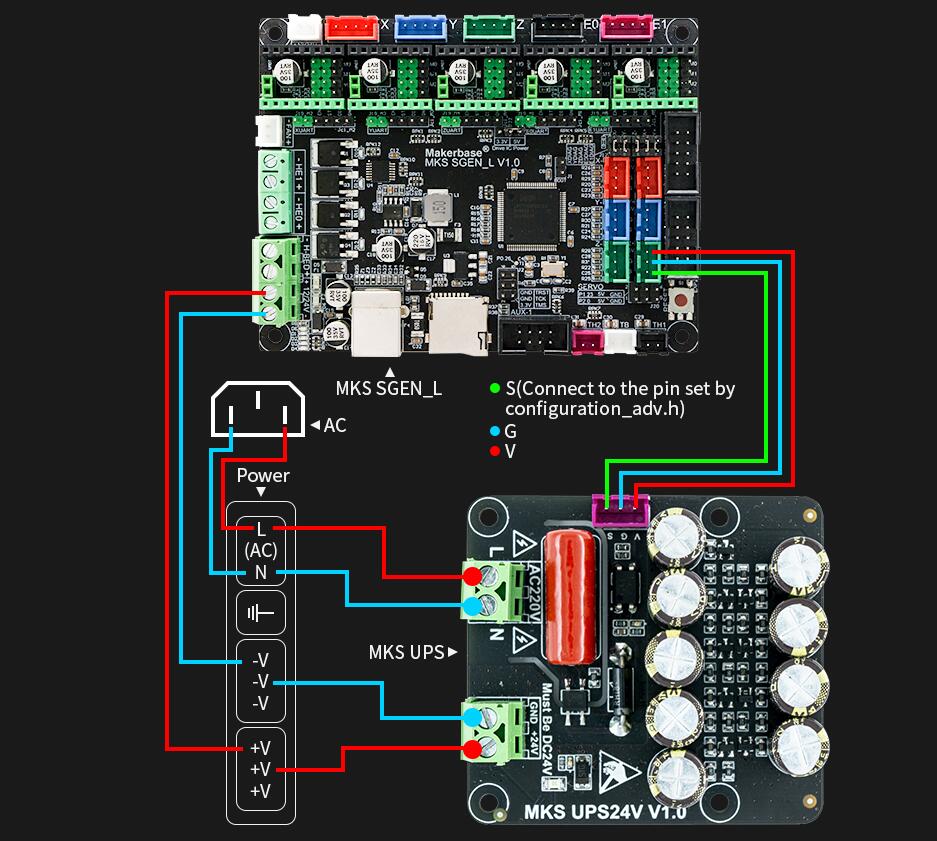

Wiring:
Take MKS SGEN_L as an example

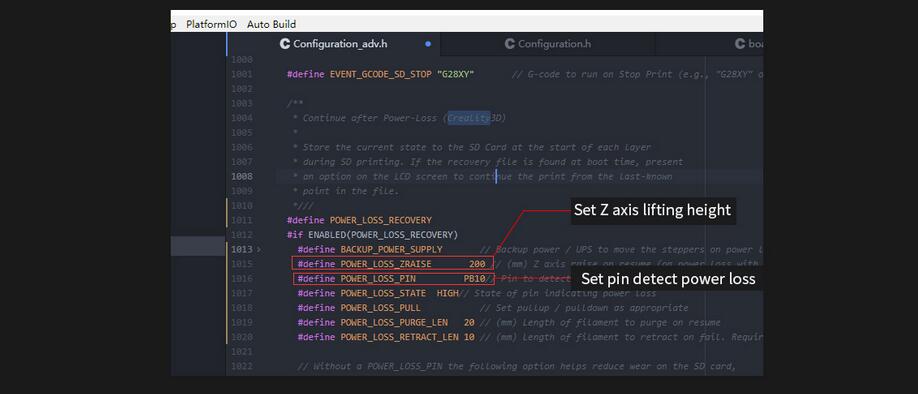

Firmware Settings:

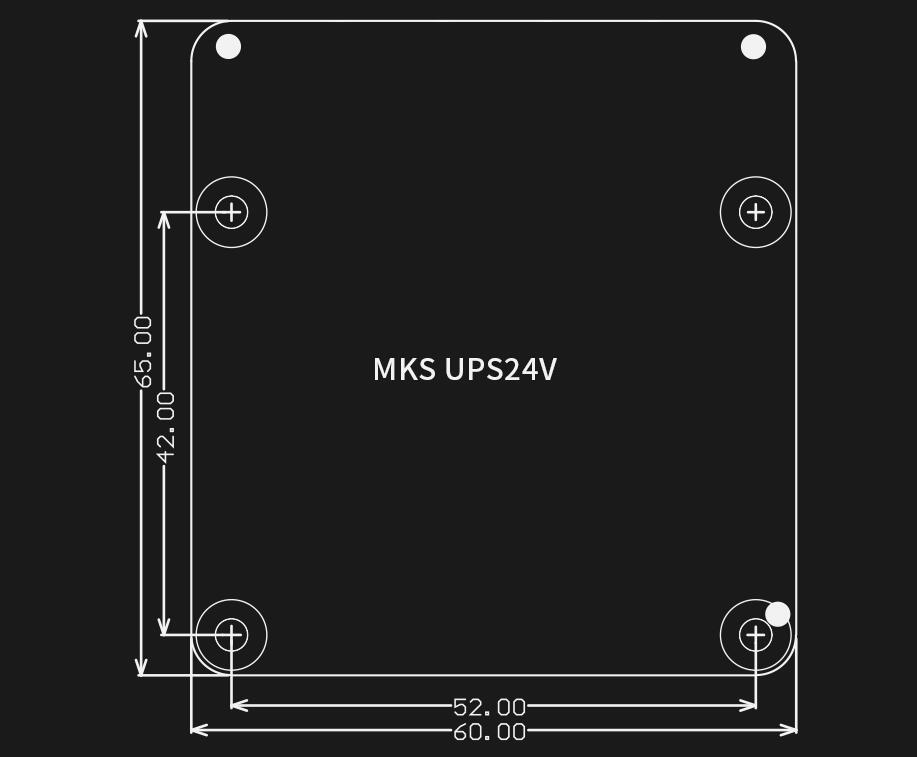

Size:
