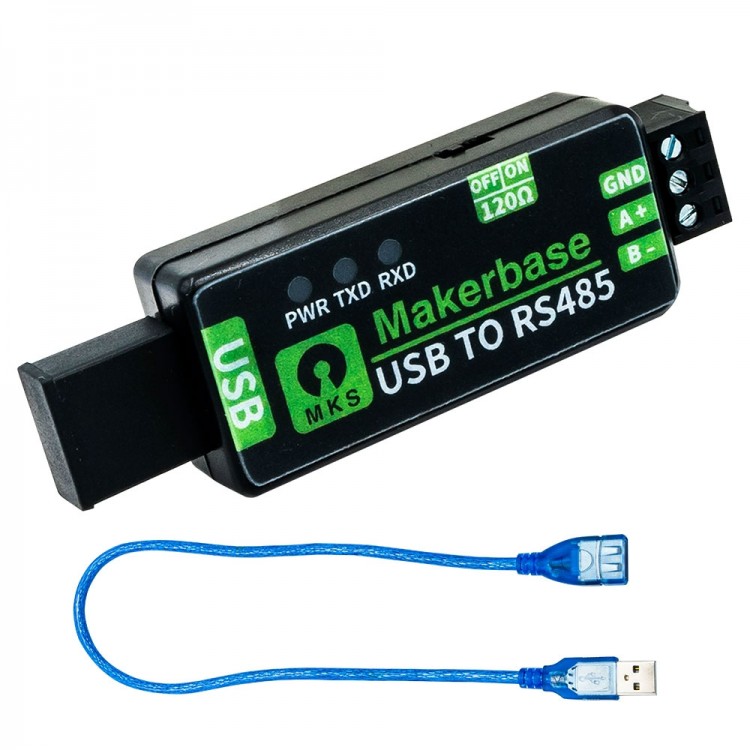

Makerbase MKS USB to RS485 Converter Module RS485 Communication Module Serial Converter FT232RL
Description:
- MKS USB to RS485 is a high-speed, stable, reliable and highly compatible serial port converter. This module uses the original FT232RL chip.
- The built in lightning protection tube effectively suppresses surge voltage and transient peak voltage in the circuit, and the self-restoring fuse and diode provide short-circuit protection.
- Supported operating systems for Mac, for Linux, for Android, for WinCE, for Windows11/10/8.1/8/7/XP. It is suitable for connection between computers and various RS485 devices, industrial automation systems, CNC machine tools and other occasions.
Features:
- Supports USB to RS485 two-way communication.

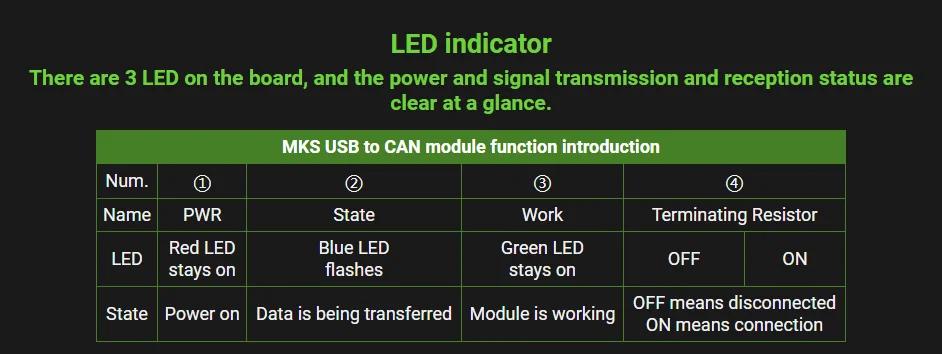

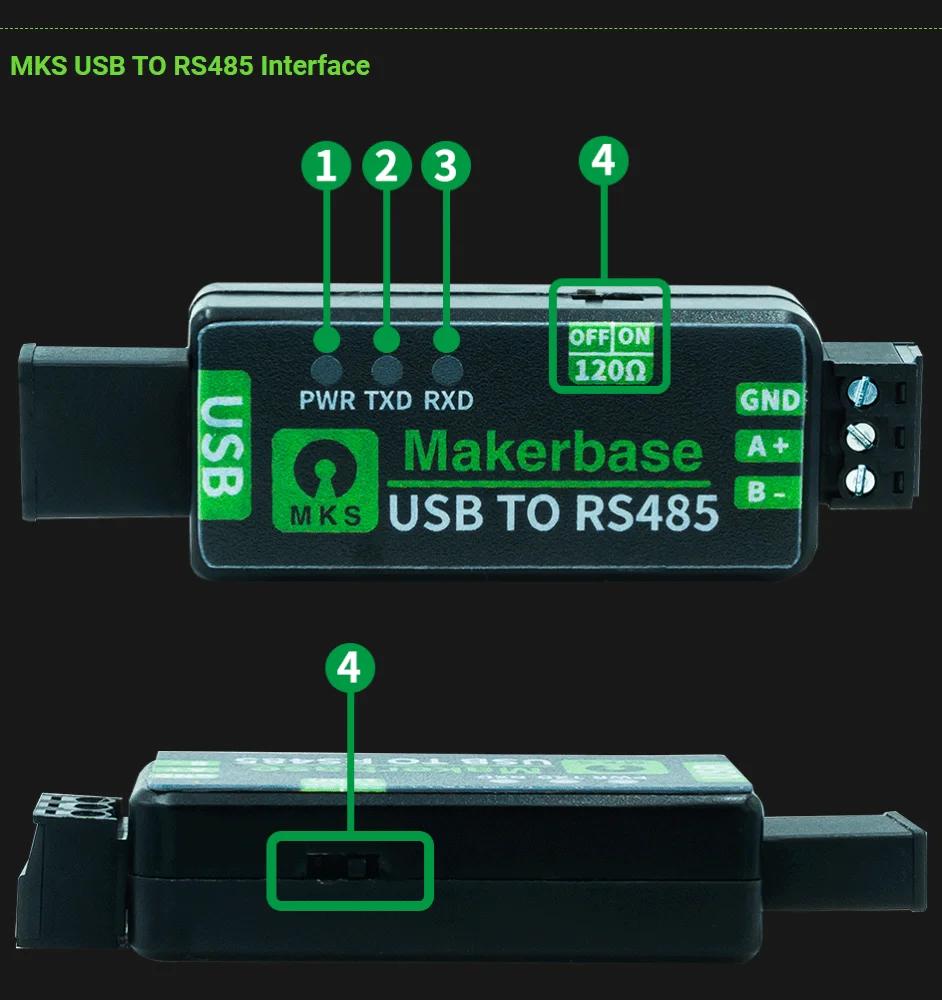

- Visually monitor power and signal transceiver status through three different color LEDs.
- Terminal resistor can be enabled/ disabled through DIP switch.
- Stable current and voltage output, strong impact resistance, protection against overcurrent and overvoltage, lightning protection and anti-static.
- The maximum communication rate can reach 921 600bps.
Specification:
- Motherboard: MKS USB to RS485 V1.0
- Processor chip: FT232RL
- Communication chip: SP485EE
- Communication rate: 300bps ~ 921600bps
- Host interface: USB - A
- Device interface: 2-wire RS485
- Temperature range: -15℃ ~ 70℃
- Humidity range: 5%RH ~ 95%RH
- Working voltage: 5V
Package Included:
- 1 x USB to RS485 Converter
