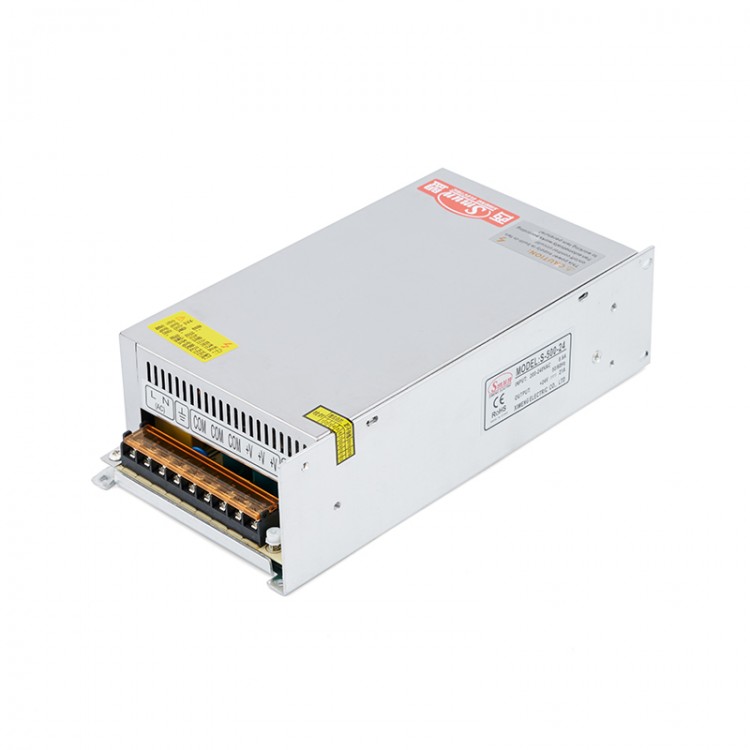

Maxgeek 24V 21A 500W Switch Power Supply Battery Charger Module 220V to 24V Generator Spare Parts S-500-24V

Maxgeek 24V 21A 500W Switch Power Supply Battery Charger Module 220V to 24V Generator Spare Parts S-500-24V

Specification:
Output:
DC voltage: 24V
Rated current: 20A
Current range: 0~20A
Rated power: 480W
Ripple noise (max.): 240mVp-p
Voltage adjustment range: 20~26.4V
Voltage tolerance: ±1%
Line regulation: ±0.5%
load regulation: ±0.5%
Setup,rise, hold time: 200ms, 50ms, 20ms at full load

Input:
Voltage range: 90-132VAC/180-264VAC by switch
Frequency range: 47~63Hz
Efficiency: 86%
AC current: 7A/115V, 3.5A/230V
Inrush current (max.): 18A/115V, 36A/230V
Leakage current: ＜3.5mA/240VAC

Protection:
Overload: 105~135% of rated load, protection type: fold back current limiting, recover automatically after fault condition is removed
Over voltage: 27.6~32.4V, protection type: hiccup mode, recover automatically after fault condition is removed
Fan control, O.T.P: RTH1 or RTH250℃ FAN ON, 45℃ FAN, 70℃ output shut down

Environment:
Working temperature, humidity: -10~60℃, 20~90% RH non-condensing
Storage temperature, humidity: -20~85℃, 10~95% RH non-condensing
Temperature coefficient: ±0.03%/℃ (0~50℃)
Vibration: 10~500Hz, 2G 10min./1 cycle, 60min each along X, Y, Z axes

Safety&EMC:
Safety standards: design refer to UL1950, TUV EN60950-1
Withstand voltage: I/P-O/P:1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
EMI conduction&radiation: compliance to EN55022 (CISPR22) Class B
Harmonic current: compliance to EN6100-3-2, -3
EMS immunity: compliance to EN6100-4-2, 3, 4, 5, 6, 8, 11; ENV50204, light industry level, criteria A

Others:
MTBS: 138.6K hrs min, MIL-HDBK-217F (25℃)
Size:240*125*65mm (L*W*H)

Features:
-Imported components, high reliability. Built in WMI filter, good anti-interference performance.
-The DC ripple is small and the work efficiency is high. Design soft start circuit with AC surge current limit.

Package List:
1 x Switch Power
