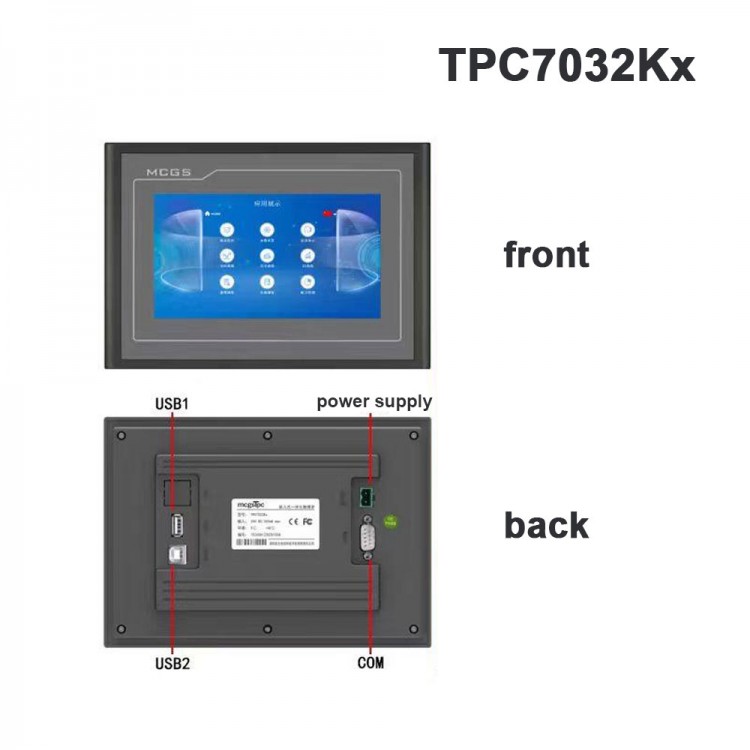

MCGS TPC7032Kx 7" Embedded HMI (K3 Dark Gray No Ethernet Port) w/ 215mm × 152mm Cutout & 128MB+128MB

MCGS TPC7032Kx 7" Embedded HMI (K3 Dark Gray No Ethernet Port) w/ 215mm × 152mm Cutout & 128MB+128MB

Features:
* A new generation of embedded all-in-one touch screen based on the Linux system
* The latest multi-core technology, high performance, premium quality, and high expandability
* Supports RS485 and RS232 communication
* With advanced protection measures
* Brand-new McgsPro configuration software
* With a plastic enclosure

Supporting Software:
* McgsPro is a configuration software designed for integrated touch panels. Compared to the older MCGSE embedded configuration software, McgsPro offers optimized appearance and performance for each configuration component.
* Classic view layout
* Brand-new commonly used features
* Enhanced and refined functionalities
* Fully compatible with MCGSE

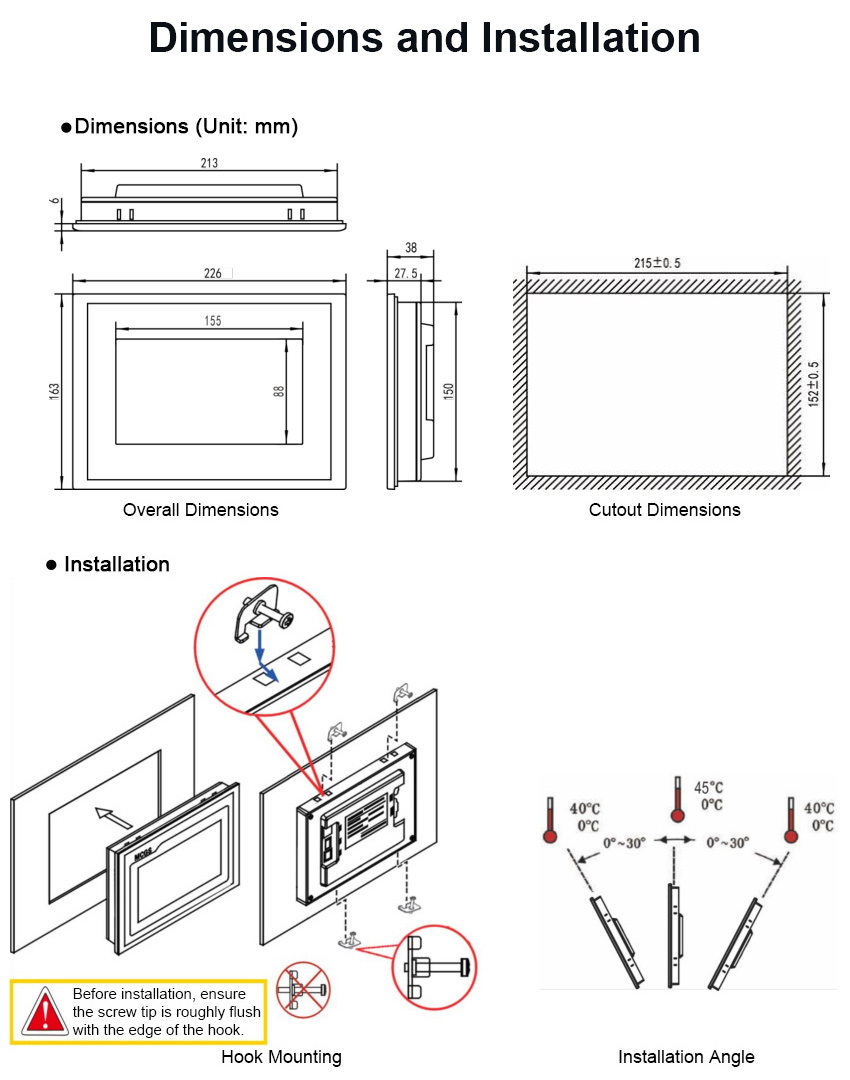

Mounting Method:
* Hook Mounting: Compact and refined. Suitable for various scenarios with flexible options.
* Note: When using hook mounting, do not over-tighten the screws; installation angle should be between 0° and 30°.

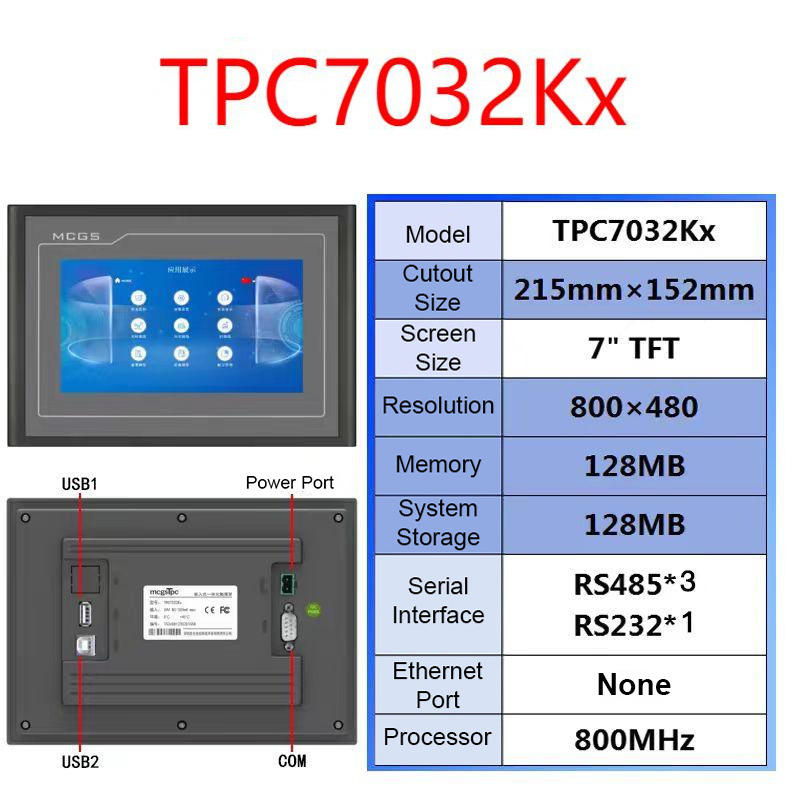

Specifications:
Basic Parameters:
* LCD Screen: 7" TFT
* Backlight Type: LED
* Display Colors: 262K
* Resolution: 800×480
* Brightness: 250cd/m²
* Touch Screen: 4-wire resistive
* Input Voltage: 24±20%VDC
* Rated Power: 5W
* Processor: Cortex-A7 multi-core 800MHz
* Memory: 128MB
* System Storage: 128MB
* Storage Space: 128MB
* Hardware Clock: Built-in
* Configuration Software: McgsPro 3.3.6.6354 SP1.3 or later

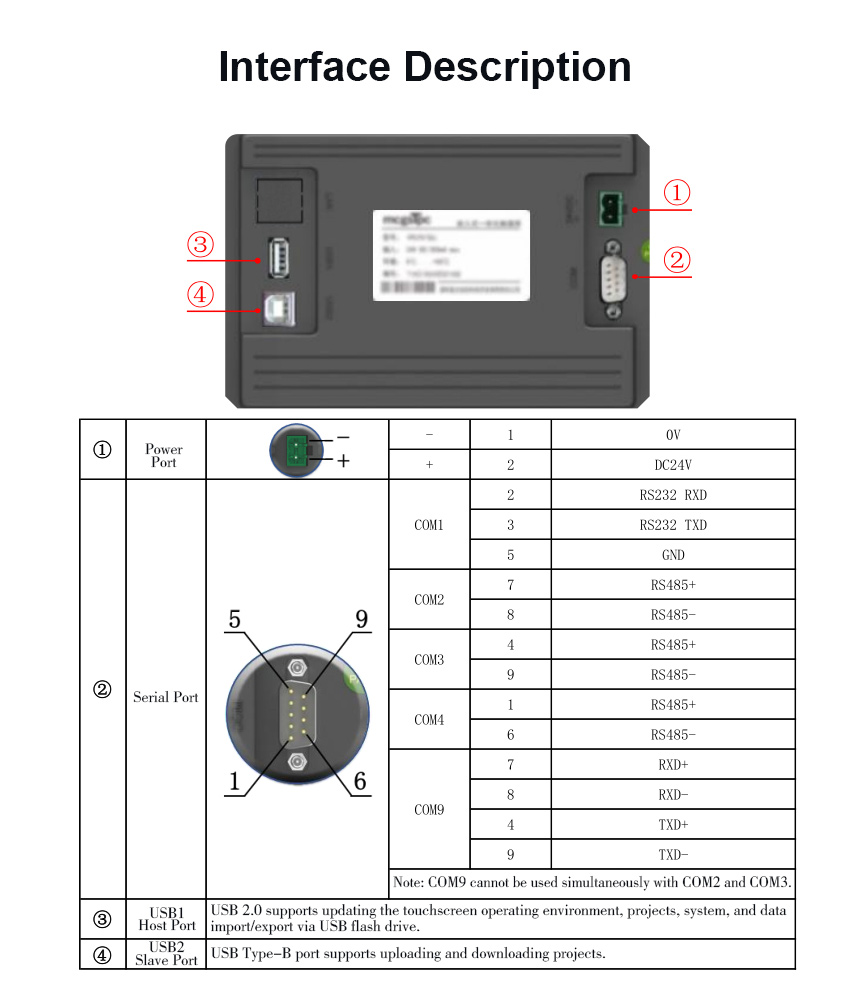

External Interfaces:
* Serial Interface:
  * * Option 1: COM1 (RS232), COM2 (RS485), COM3 (RS485), and COM4 (RS485)
  * * Option 2: COM1 (RS232), COM4 (RS485), and COM9 (RS422)
* USB Interface: 1×Host and 1×Slave

Environmental Conditions:
* Operating Temperature: 0℃～45℃
* Operating Humidity: 5%～90% (non-condensing)
* Storage Temperature: -10℃ to 60℃
* Storage Humidity: 5%～90% (non-condensing)

Product Specifications:
* Housing Material: Engineering plastic
* Dimensions: 226mm×163mm
* Panel Cutout: 215mm×152mm
* Display Area: 155mm×88mm

Certifications:
* Product Certification: Complies with CE/FCC standards
* Protection Rating: IP65 (front panel)
* EMC: Industrial Grade 3

Packing List:
* 1 × HMI Display Screen

Packaging Details:
* Weight: 0.8kg

Note:
* Communication cable is not included.
