Description:

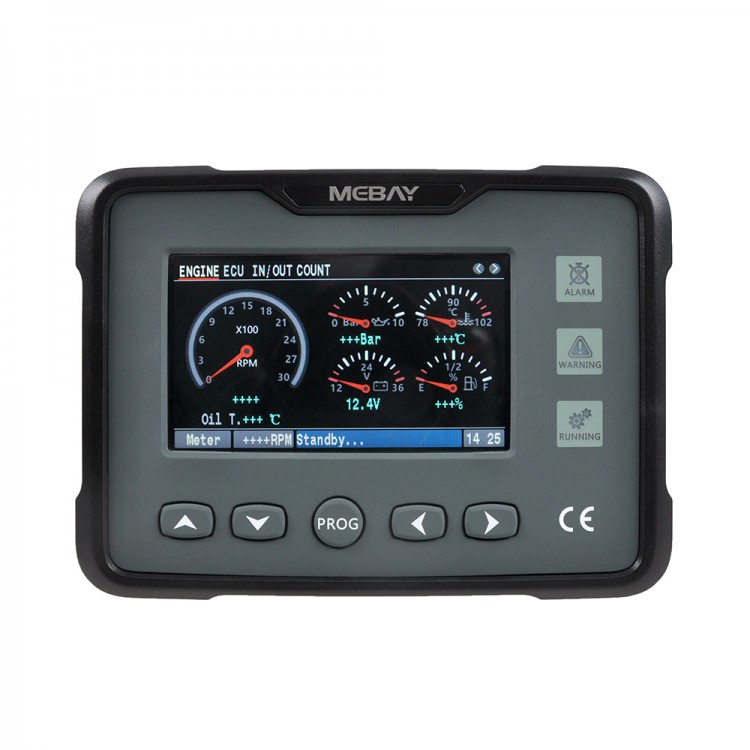

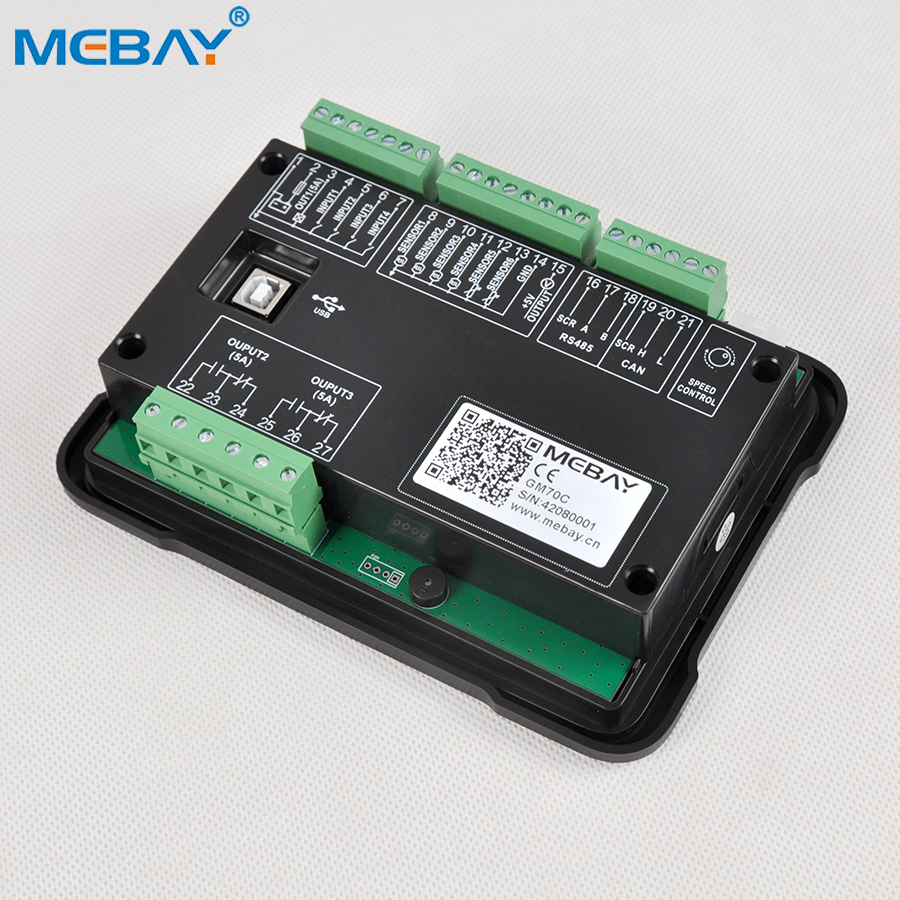

- GM70C is specially designed for the parameter monitoring and fault monitoring of air compressor driven by diesel engine and gas engine. It is equipped with standard can communication port and built-in J1939 protocol. Relevant parameters can be read through CAN port of engine ECU.
GM70C CAN ONLY USED ON ECU ENGINE.
Parameters Display | Protection |
Engine RPM | Over speed |
Engine oil pressure | Under speed |
Engine water temperature | Low oil pressure |
Engine oil temperature | High water temperature |
Engine fuel level | High oil temperature |
Engine battery voltage | Low oil level |
ECU related parameters | Low water level alarm |
4 switches input status display | External instant alarm |
Output status display of 3 relays | Low coolant level switch warning |
Cumulative number of startups | Sensor Open |
Total number of alarms | Maintenance expire |
Total Crank times | ECU alarm failure |
Current running time | ECU communication Failure |
Total running time | External shutdown alarm |
Maintenance notice |
SPECIFICATION OF GM70C | |
Power supply | DC 8～36 V |
Consumption power | Standby:24V:MAX1W |
Working:24V:MAX3W | |
MAX Accumulating Time | 99999.9Hours（Min Store time:6min） |
Programmable Relay output 1 | Max 5 Amp DC+VE Supply voltage |
Programmable Relay output 2 | 250V/5 AMP Non-contact normally Open/Closed output |
Programmable Relay output 3 | |
Switch value input | Available if connecting with Battery |
Working condition | -25-65℃ |
Storage condition | -40-85℃ |
Protection Level | IP54:when water proof rubber gasket is added between meter and its panel |
Insulation strength | Apply AC 1.5 kV voltage between high voltage terminal Insulation strength and low voltage terminal; The leakage current is not more than 3mA within 1min. |
Overall dimension | 175mm*128mm*39mm |
Panel cutout | 152mm*112mm |
Weight | 0.5Kg |
