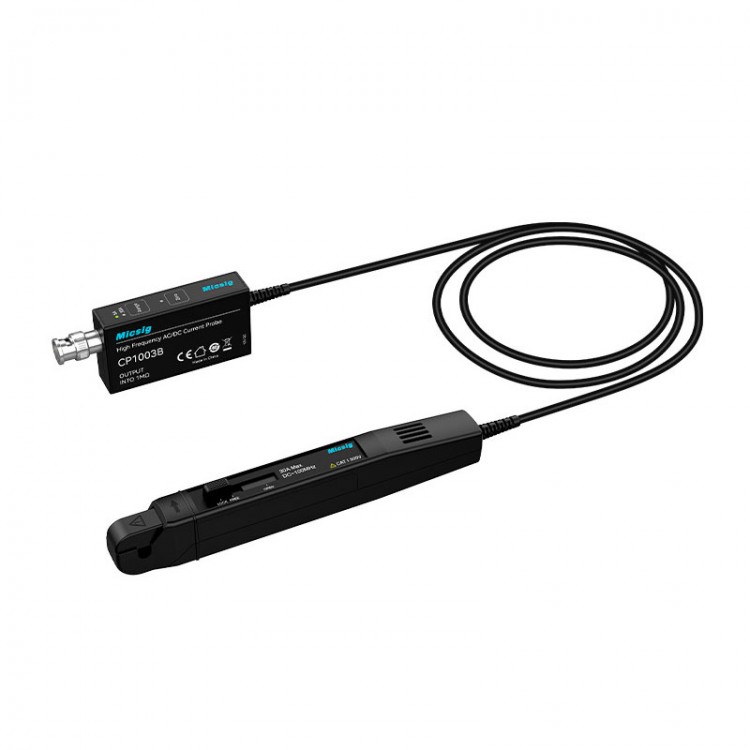

Micsig CP1003B 100MHz 5A/30A Dual Range High Frequency AC/DC Current Probe with BNC Connector for Oscilloscope
Features:
- Bottom noise as low as 4mApp, bandwidth up to 50MHz.
- Measurement range up to 30Arms, 50Apk.
- Universal BNC interface, membrane buttons are sensitive and easy to use.
- The control box is made of all metal material, with stronger anti-interference ability.
Application:
- Electric vehicle transportation design
- Switching power supply design
- Experiment of electronic engineering
- Semiconductor devices design
- Avionics design
- Inverter/Transformer design
- Electronic ballast design
- Industrial Control / Consumer Electronics design
- Engine driven design
- Power electronics and electric drive experimental design

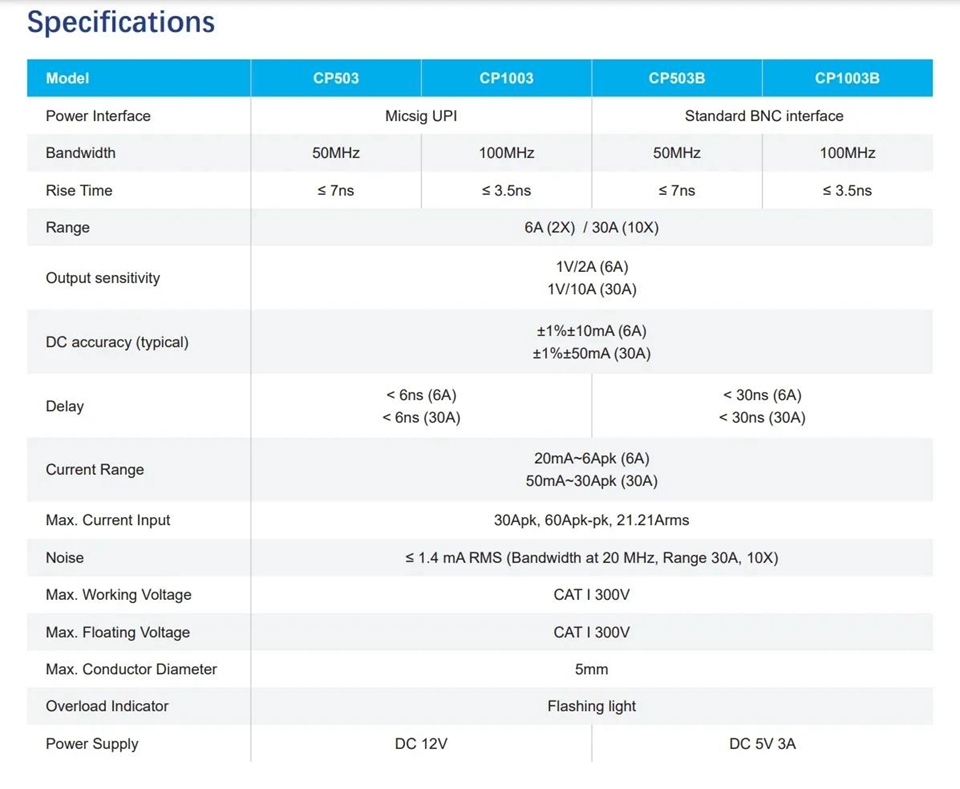

Specification:
- Model: CP1003B
- Bandwidth: DC-100MHz
- Rising time: ≤3.5ns
- Range: 5Arms (5A) / 30Arms (30A)
- Maximum measuring current: 50Apk, 100Apk-pk, 30Arms
- Precision (DC, 45-66Hz maximum continuous current): ±1%±1mA (5A) / ±1%±1mA (30A)
- Resolution: 1mA (5A) / 10mA (30A)
- Noise: <4mApp (5A) / <30mApp (30A)
- Delay: < 6.5ns (5A) / < 8.5ns (30A)
- Output sensitivity: 1V/1A (5A, 1X attenuation); 1V/10A (30A, 10X attenuation)
- Over-current alarming value: ≥5Apk (5A) / ≥50Apk (30A)
- Power supply: DC 12V power adapter
- Maximum working voltage: CAT I 300V
- Maximum floating ground voltage: CAT I 300V
Package Included:
- 1 x AC/DC Current Probe
