Micsig DP10013 1300V 100MHz High Voltage Differential Probe Features 50X/500X Attenuation Range
Features:
- High accuracy and low noise, measuring voltage up to 1300V
- Most compact design with professional performances
- One-press zero calibration & automatic over-range alarm
- Powered by oscilloscope USB output, no adapter needed
Application:
- Floating measurements
- Switching power supply design
- Motor drive design
- Electronic ballast design
- CRT display design
- Power converter design and service
- Power device evaluation

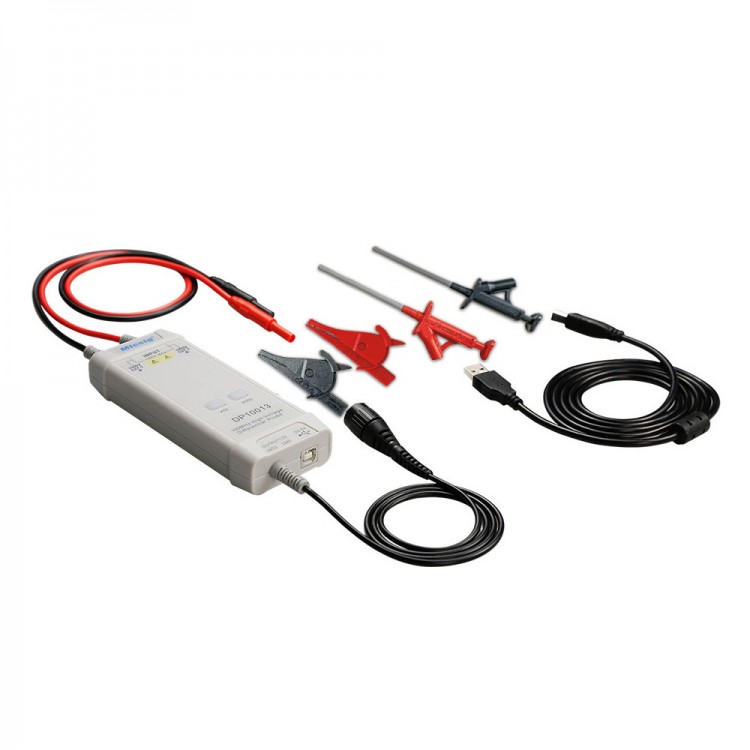

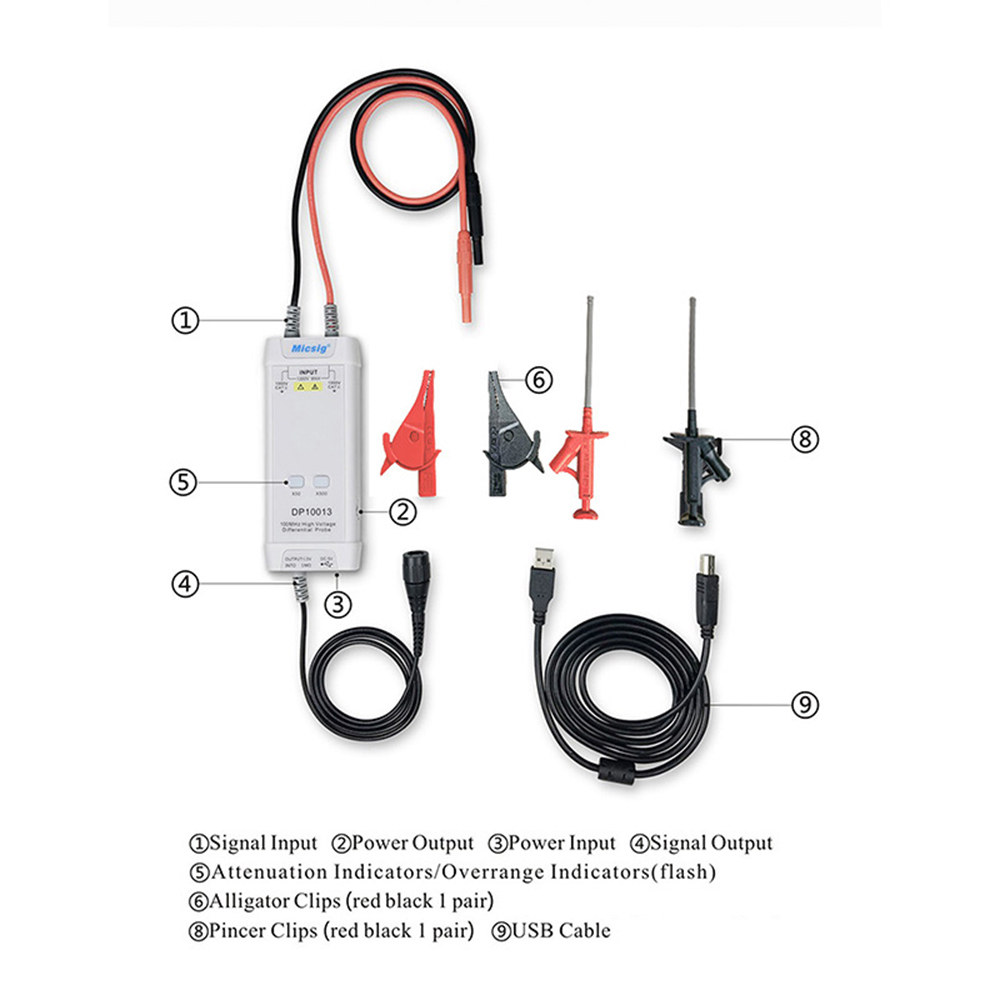

Package Included:
- 1 x DP10013 main unit
- 2 x Alligator clips
- 2 x Pincer clips
- 1 x USB cable
