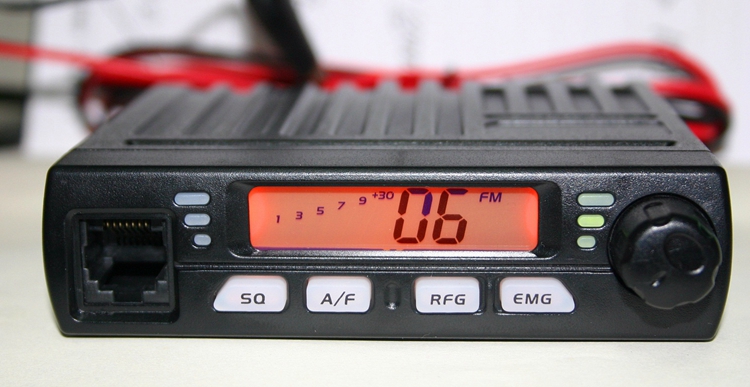

Mini Car Mobile Radio 10M Car Walkie Talkie AM/FM Amateur Mobile Radio LCD Screen F30-5
General Parameters:
- Modulation Mode: AM/FM
- Frequency Range: 25.615-30.105MHz
- Rated Voltage: 13.2V (Red Wire for +; Black Wire for -)
- Dimensions (mm): 109(W) x 104(D) x 25(H)
- Weight: Approx.421g
- Frequency Control: PLL Synthesizer
- Operating Temperature Range: -20℃ to 50℃
- Working Current:
When Transmitting: 2A Max.
When Receiving: Squelched 300mA
Max. Volume: 800mA Max
Transmitting Parameters:
- Output Power: 8W FM/AM
- Output Impedance: 50Ω
- Frequency Response: 300-3000Hz
- Stray Power: 4nW (-54dBm)
Receiving Parameters:
- Sensitivity: <1uV@10dB
- Mirror Image: 70dB
- IF Frequency:
1st IF: 10.695MHz
2nd IF: 455 KHz
- Automatic Gain Control (AGC): <10dB in Audio
- Squelch Level: <1uV
- Audio Output Power: 1W

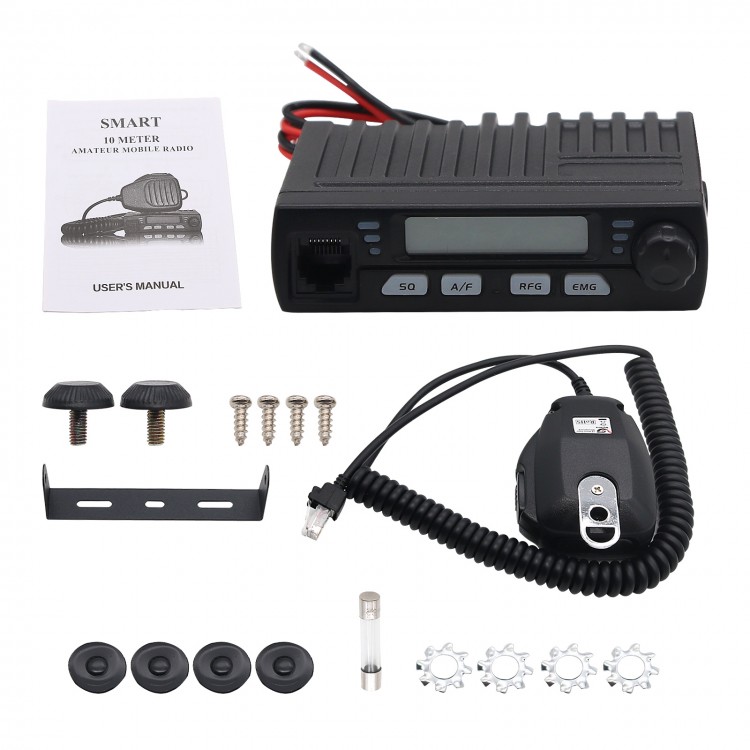

Package Included:
- 1 x Mobile Transceiver Body
- 1 x Speaker Microphone
- 1 x Bracket
- 1 x Fixing Screw Set
- 1 x User Manual
