Mini DDS Signal Generator Dual Channel Output Pulse Generator 1KHz-68MHz Module

Mini DDS Signal Generator Dual Channel Output Pulse Generator 1KHz-68MHz Module

Description:
HM345 is a small signal generator which has two output, one can be 10KHz frequency, variable duty cycle pulse signal; the other way can be 1KHz to 68MHz pulse signal. The module is easy to use, input frequency data can be in by keys, the output frequency is updates immediately then.

Applications:
- Signal generator;
- Instrument calibration;
- DC motor control;

Parameters:
1. Pulse 1 signal range: 1 ~ 10000Hz
2. Pulse 1 duty cycle range: 0 -100.0%
3. Pulse 1 signal amplitude: 5VDC; max. amplitude: 5.0Vp
4. Pulse 2 signal range: 1 ~ 68000kHz
5. Pulse 2 duty cycle range 2: 50.0%
6. Pulse 2 signal amplitude pulse 2: 5VDC; max. amplitude: 5.0Vp
7. Pulse 2 signal Accuracy: <1%
8. Working voltage: 7 ~ 12VDC
9. Working current: <50mA
10. Size: 57 * 45 * 20mm ( LxWxH )

Interface specification and related operations:
P1 Interface (power supply)
- VDD: positive  (7 ~ 12V)
- GND: negative

P2 Interface:
- PWM: The 1st channel pulse signal output.
- POUT: The second channel  signal pulse output.
- GND: negative.

Key Description:
- FUN: (choose Operating bit of data) or (press long to save the set parameters function).
- UP: Previous.
- DOWN: Next.
- ADD: Self-keyed.
- SUB: Decrement key.

Interface and operating instructions:
1. Set the pulse signal frequency

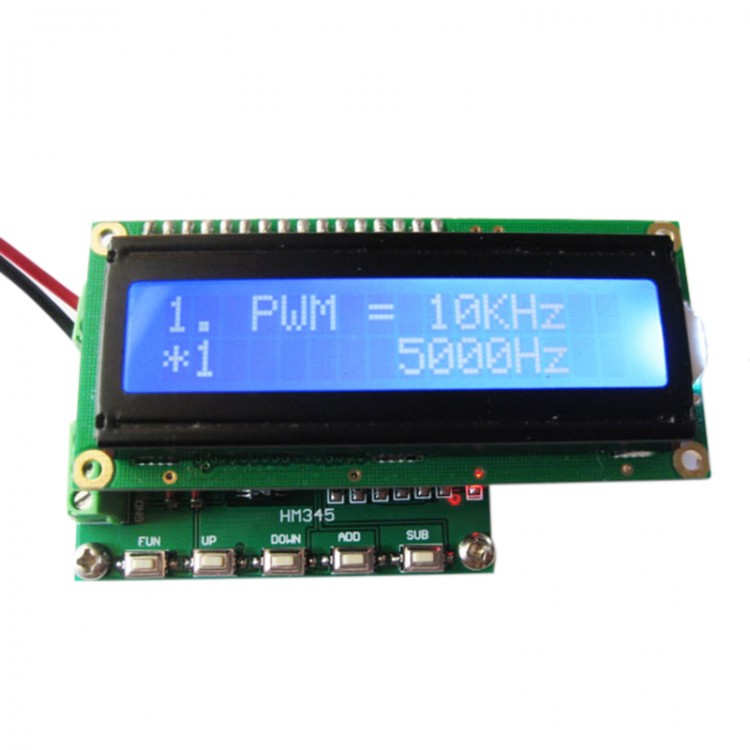

Interface displays font:
- The first line of "1. PWM = 10K"
- The second line "* 1 1000Hz"
- Keys:
- FUN: function keys; (Operation bit selects setting data) or (long press to save the set parameters function)
- ADD: self-imposed bond;
- SUB: Decrement key;

2. Setting the duty cycle of the pulse signal
Interface displays font:
- The first line "2. PWM = 0-> 100%"
- The second line "* 0.1 50.0%"
- Keys:
- FUN: function keys; (Operation bit selects setting data) or (long press to save the set parameters function)
- ADD: self-imposed bond;
- SUB: Decrement key;

3. a high-frequency pulse signal output
Interface display font:
-The first line of "3.POUT = 68MHz"
The second line "* 1 800000Hz"
Key actions:
FUN: function keys; (Operation bit selects setting data) or (long press to save the set parameters function)
ADD: self-imposed bond
SUB: Decrement key

Package included:
- 1 x DDS Signal Generator
