• MINI MWC V1.2 Flight Control Board for Tri Quadcopter Hexacopter Support DSM2 4ch above Transmitter

MINI MWC V1.2 Flight Control Board for Tri Quadcopter Hexacopter Support DSM2 4ch above Transmitter

Availability: Out Of Stock

  • Price:$52.69
  • Price in reward points: 527 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $51.64 $50.58 $49.00 $46.89 Contact US
Quantity:

MINI MWC V1.2 Flight Control Board  with Receiver for Tri Quadcopter Hexacopter support DSM2 4ch above Transmitter

Descriptions:
- This MINI MWC flight control board with super design which other flight control board without,with a lot of optimization in the PCB design, optimized the board is smaller, more convenient to use and optimization are as follows

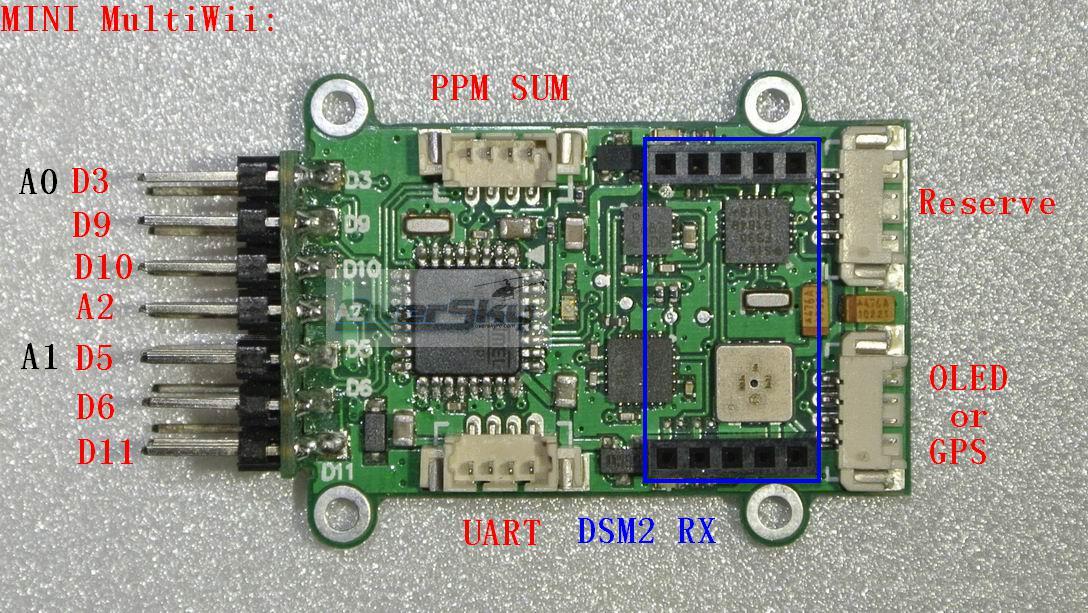

  ESC interface direction is 90 degrees (a total of nine output interface, D3, D5, D6, D9, D10, D11, A0, A1, A2), the interface is made of high quality heavy golden pin
- Electrically controlled interface board adopts double 2 oz copper thick PCB, can bear the max up to 16A current, so the power supply with 2 s lithium electricity without additional power panel
- with 7 channel receiver (compatible with DMS2) (receiver output the SUM of PPM signal)
- Built-in voltage detection (A2) function
- Redesign of the element and the interface;

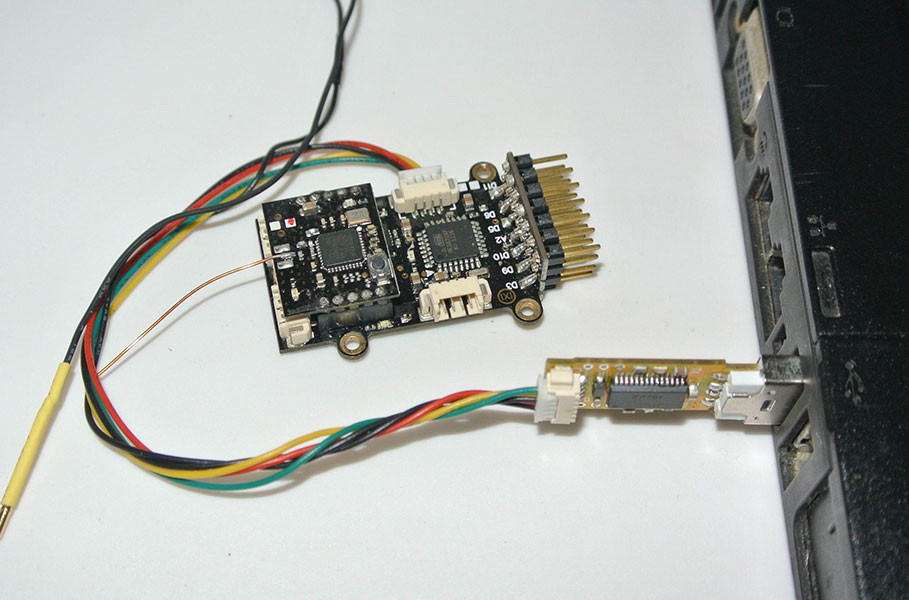

- with FTDI protection, prevent the external power supply and USB power supply









Package list:
- MINI MWC board

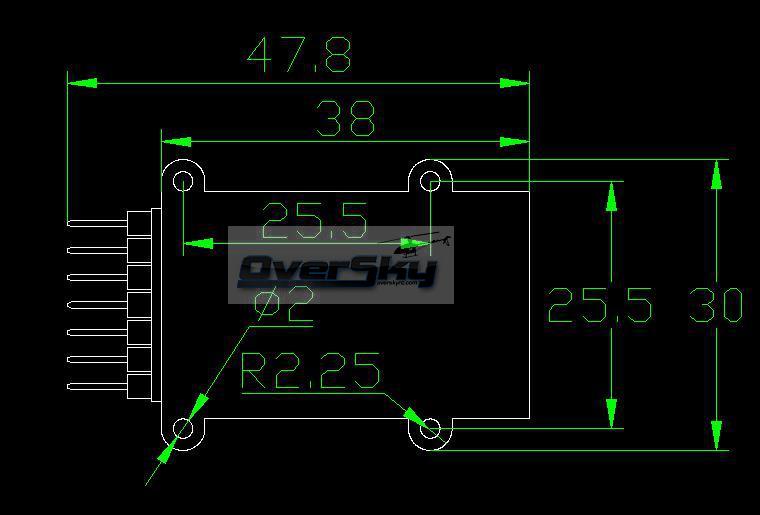

- Size:48.0 *23.5 *11.0mm (not included mounting hole)/48.0*30.0 *11.0mm (included mounting hole)
- 7.8g (including receiver and antenna)
- Mounting hole:2.0mm









Package included:
-  1 x MINI MWC V1.2 Flight Control Board
