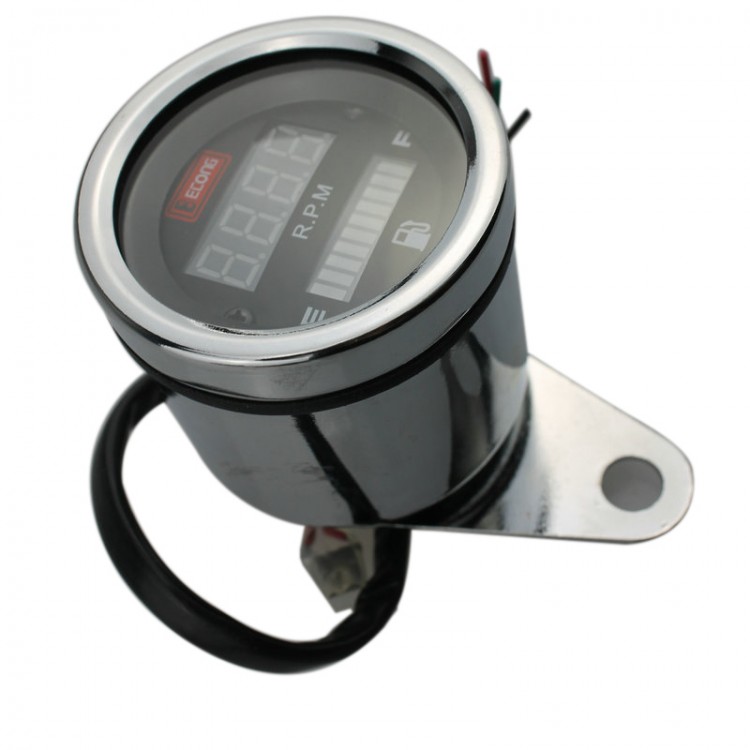

Motorcycle Tachometer Fuel Gauge With LCD Digital Display

Availability: In stock, usually dispatched in 1 business day

  • Price:$20.31
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $0.00 $0.00 $0.00 $0.00 Contact US
Quantity:

Motorcycle Tachometer Fuel Gauge With LCD Digital Display

Description:

    Model:B723
    Size:Shell Diameter:52 mm Mounting Holes Distance:40 mm Thickness:28 mm .
    LED Color:Blue
    Voltage:12V
    Shell Material:Chrome plating

Features:
    Electrochromism Shell Material
    Bright LED LCD Display
    Motorcycle measurement speed and oil mass.

Wiring Instructions:
    There are four long line.
    Red line to "+", Black connect"-"
    Green Connect to speed signal lines
    Yellow Connect to fuel sensor signal lines
    And two short line and adjustable diode

Tachometer Test Methods
    connect the positive and negative power suppl
    open the switches switch, tachometer display 0000, and the signal line to touch the positive power supply, the digital display will change, indicating normal operation
    Connect the signal cable, start the car, you can display speed.

Fuel Gauge Test Adjustment Method:
    connect the positive and negative power supply
    open the switches switch, fuel gauge displays a red, then the signal line connected to the negative, slowly LED lights all show, indicating normal operation.
    Connect the signal line (Note: can not be used with the original fuel gauge), fill up, slowly adjust the potentiometer allows just all the bright LED lights, such as the oil runs out after a slight adjustment potentiometer allows LED only a bright red light, is complete.

Package Included:
    1 X Motorcycle tachometer Fuel Gauge
