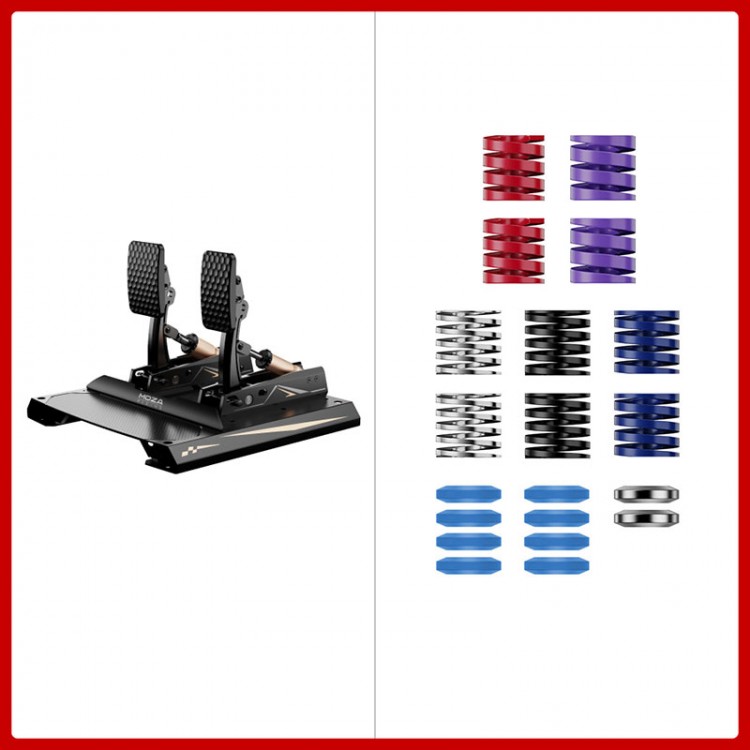

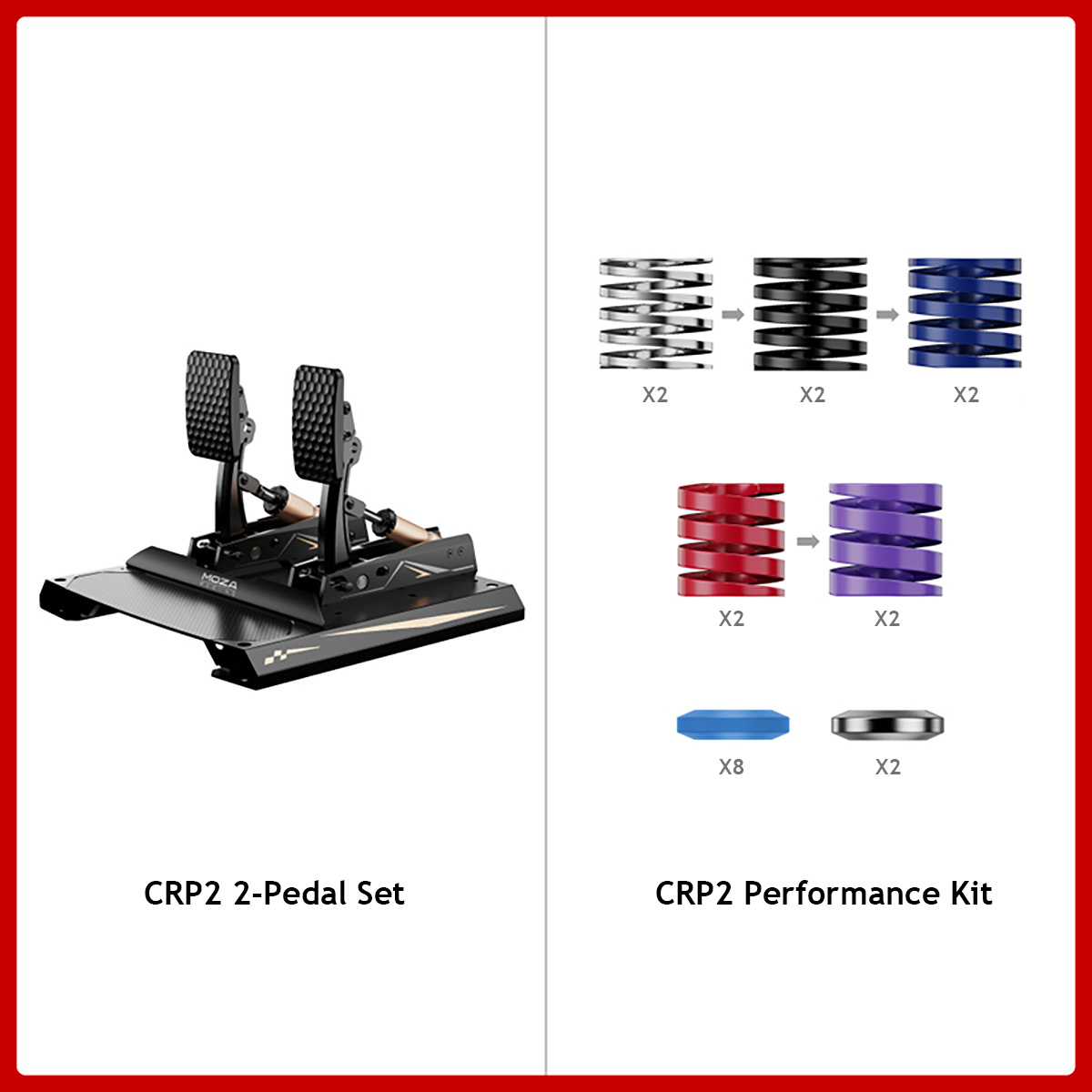

MOZA RACING CRP2 2-Pedal Set Sim Pedals Load Cell Pedals + CRP2 Performance Kit for Sim Racing Games

MOZA RACING CRP2 2-Pedal Set Sim Pedals Load Cell Pedals + CRP2 Performance Kit for Sim Racing Games

CRP2 2-Pedal Set:
1. Features:
* Minimalist Design: The CRP2 sim racing pedals feature a minimalist design with smooth curves and a sophisticated black-and-gold color scheme that exudes competitive energy. Hexagonal design elements on the pedal face symbolize stability, balance, and versatility. Concealed wiring, springs, and screws contribute to a clean, professional appearance.
* CNC Aerospace-Grade Aluminum Construction: Key components are CNC-machined from aerospace-grade aluminum alloy to exacting standards and anodized for a sleek, durable finish. Additional components are made using precision die-casting and coated with automotive-grade finishes to ensure strength and quality. The base is constructed from high-strength steel to endure the intense forces of competitive racing.
* Carbon Fiber Heel Plate: The 3K twill carbon fiber heel plate adds a sporty touch while offering moderate surface friction for stable and precise heel placement during high-intensity sessions.
* 200KG Load Cell Sensor: Equipped with a 200 kg pressure sensor, the brake pedal covers nearly the full braking force range found in real race cars. This provides a strong connection between muscle memory and applied braking force.
* 15-bit High-Precision Angle Sensor: Using a patented sensor fusion algorithm, the CRP2 combines a 15-bit angle sensor with the load cell to deliver exceptional accuracy and fine control of braking force—maximizing responsiveness and enhancing muscle memory.
* 125 Brake Pedal Feel Combinations: The brake features a damping block system with hardness options of 55, 70, 80, and 98, enabling 125 different pedal feel combinations. This adaptability supports simulation of a wide range of vehicles, from standard road cars to F3 race cars.
* Versatile Damping Block Configuration: Eight damping blocks can be configured in multiple combinations to simulate various race car brake profiles. Choose from suggested configurations or create a custom setup to match your driving style.
* Adjustable Throttle: The throttle features a spring-enclosed design and a precision guide rod for a silky-smooth pedal feel. It includes two springs with different resistance levels and allows for continuous force adjustment to simulate throttle feedback from a wide range of vehicles.
* Quiet and Smooth Operation: An enclosed structure combined with a high-polish steel shaft ensures quiet, smooth pedal motion. Soft end-point cushions provide effective noise reduction during use.
* Tool-Free Adjustment: A patented tool-free design allows quick adjustments to damping blocks, springs, and pedal forces—no wrenches or tools required. Ideal for switching between vehicle profiles.
* Adjustable Travel and Angle: Each pedal—brake, throttle, and clutch (optional)—offers adjustable travel and angle, giving you full control over pedal feel and ergonomics.
* Adjustable Position and Height: Pedal spacing, footrest position, and pedal face height (adjustable up to 30 mm) are all customizable, supporting various foot sizes and user preferences.
* Ergonomic Design: The pedal surfaces follow a biomimetic curve that conforms to the foot arch, enhancing comfort and enabling more effective force application.
* Enhanced Compatibility: When paired with the Xbox-compatible ESX wheel base, the CRP2 pedals can be connected directly for Xbox use. They also support direct connection to a PC or the base.
* Professional Software Support: MOZA Pit House software allows you to monitor pedal status, configure pedal travel and signal output curves, adjust electronic travel, and view real-time signal output curves—unlocking the full potential of the hardware.
* Engineered for Endurance: Each CRP2 pedal has been tested for over one million press cycles, ensuring long-term durability and performance for even the most demanding sim racers.
* Supports Inverted Mounting: The CRP2 pedals support inverted mounting to replicate the layout and ergonomics of real road cars. This can be done with optional components or custom brackets.

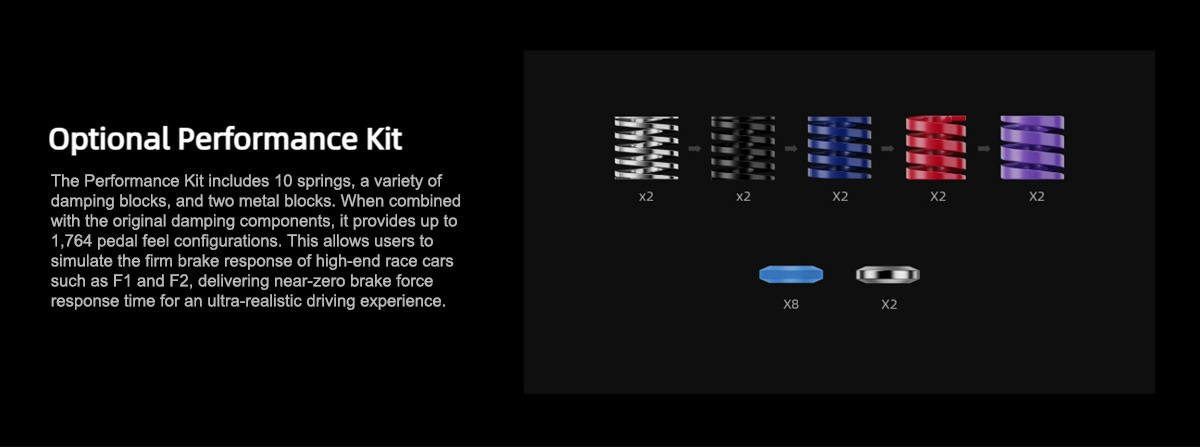

* Optional Performance Kit: The Performance Kit includes 10 springs, various damping blocks, and a metal block. When combined with the original damping blocks, it offers 1,764 possible pedal feel combinations—enabling near-instant brake response and mimicking the hard brake feel of F1 and F2 cars.

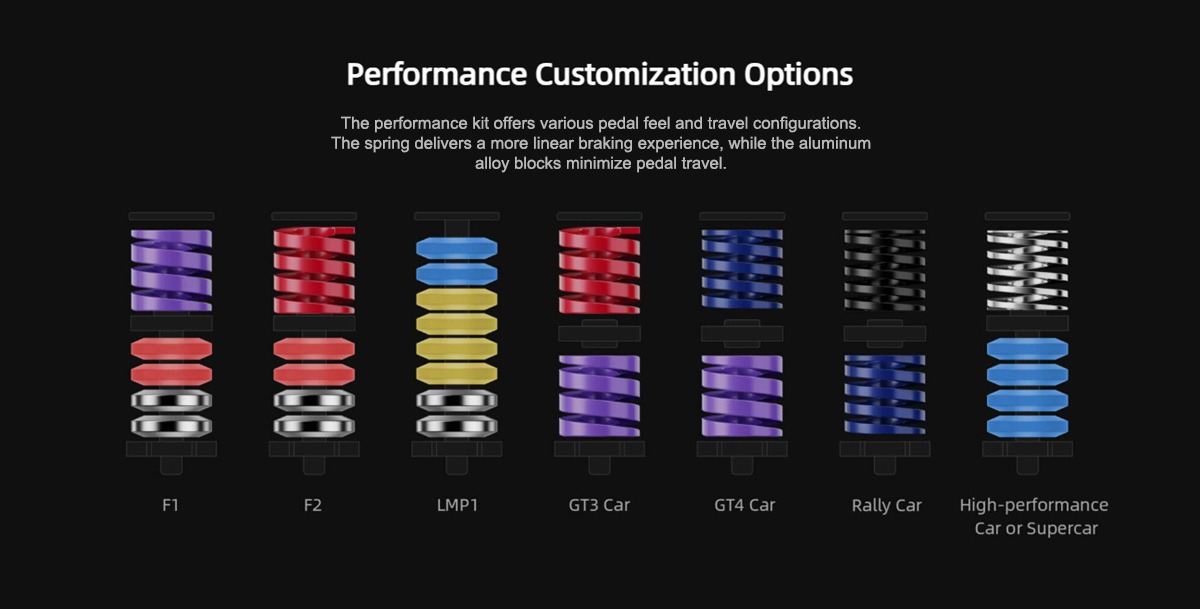

* Performance Customization Options: Fine-tune your driving experience with various pedal feel and travel configurations. The spring offers a linear braking feel, while the aluminum block minimizes pedal travel for quicker response.

2. Specifications:
* Pedal Body Material: Aerospace-grade aluminum alloy
* Heel Plate Material: 3K twill carbon fiber
* Base Material: High-strength steel
* Load Cell Sensor Range: 0–200kg
* Brake Sensor: Load cell sensor and angle sensor
* Angle Sensor Resolution: 15-bit (32768 PPR)
* Brake Pedal Feel: 115 standard adjustments, 1764 optional configurations
* Throttle Adjustment: Two spring options with infinite adjustment
* Clutch Adjustment: Two spring options with infinite adjustment (Optional clutch)
* Brake Travel Adjustment: 15–20°
* Throttle Travel Adjustment: 15–23°
* Clutch Travel Adjustment: 15–25° (Optional clutch)
* Pedal Angle Adjustment: 0–15°
* Pedal Face Height Adjustment: Up to 30mm
* Footrest Adjustment: Up to 30mm
* Pedal Curve Adjustment: Adjustable
* Real-time Pedal Output Display: Adjustable
* Pedal Pressure Engagement Point: Adjustable
* Pedal Surface: Biomimetic curved
* Inverted Mounting Kit: Optional

CRP2 Performance Kit:
1. Description:
The Performance Kit for CRP2 allows you to fully customize the braking feel of your pedals, simulating the hard brake feel of top-tier race cars like F1 and F2. With 10 springs, various damping blocks, and two aluminum alloy blocks, this kit offers 1,764 possible configurations, letting you fine-tune the pedal response and travel to your preference. Whether you prefer a linear braking experience or minimal pedal travel, this kit provides the tools to optimize your performance.

Packing List:
* 1 x Set of pedals
* 2 x White Springs (1.6)
* 2 x Black Springs (2.0)
* 2 x Blue Springs (2.6)
* 2 x Red Springs (3.3)
* 2 x Purple Springs (4.0)
* 8 x Damping Blocks (90P)
* 2 x Aluminum Alloy Blocks

Packaging Details:
* Weight: 8.6kg
