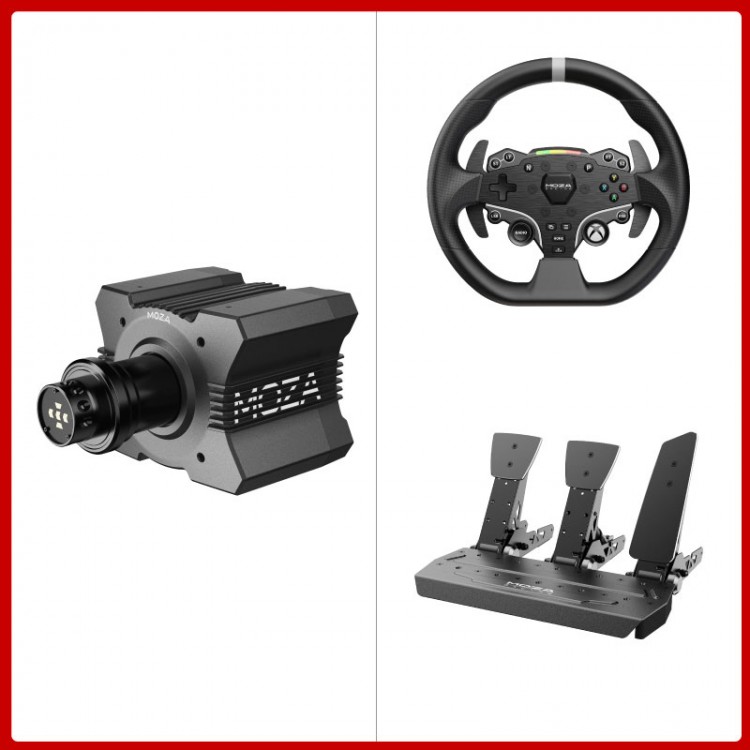

MOZA RACING R9 V3 9Nm Direct Drive Wheel Base + 11" ESX Racing Wheel for Xbox & PC + 3-Pedal SR-P

MOZA RACING R9 V3 9Nm Direct Drive Wheel Base + 11" ESX Racing Wheel for Xbox & PC + 3-Pedal SR-P

R9 V3 9Nm Direct Drive Wheel Base:
1. Differences between the R9 V2 and R9 V3 Wheel Bases:
* The R9 V3 supports iRacing's 360Hz mode and features a 21-bit magnetic encoder with a resolution of up to 2.09 million counts.

2. Features:
Professional True Servo with 9Nm of Torque
* It delivers a sustained and stable output of 9Nm torque, faithfully replicating the steering resistance from consumer vehicles to race cars. It finely transmits all driving details, meeting the gaming and training needs of most racing enthusiasts.

21-bit Magnetic Encoder & 280MHz High-Performance Processor
* 2.09 Million-Level Force Feedback Resolution: The 21-bit magnetic encoder divides each full rotation into 2,097,152 steps, offering ultra-refined control.
* With angle detection precision up to 0.00017°, the response is more accurate and the steering feel is smoother.
* It reproduces rich and detailed force feedback sensations with high realism.

High-Performance Servo Motor
* High torque density, compact yet powerful: Featuring a high slot fill ratio design, magnetic core with excellent conductivity, and strong neodymium magnets, it ensures lower power consumption and higher output.
* Multi-slot, multi-pole design with ultra-low torque ripple: 18-slot, 16-pole structure provides reduced torque ripple and superior vibration damping, making steering feel smoother and silkier.
* Wide High-Torque Speed Range: With a low back-EMF design, it maintains high torque even at high speeds, enabling fast direction corrections while preventing torque dropouts.

NexGen Force 4.0 Feedback System
* More detailed and refined force feedback lets you clearly perceive curbs and road surface bumps.
* The vehicle's center of gravity shift and tire slip response are more sensitive and rapid.
* A newly developed cogging torque compensation algorithm provides smoother steering feedback.
* Force Feedback Interpolation Algorithm: It eliminates force spikes during sudden feedback changes, creating a more natural and fluid experience.
* Game Feedback Decoupling: It deconstructs game force feedback into separately adjustable components, allowing for greater customization.
* Innovative Road Surface Perception Equalizer: Scene-based vibration tuning maximizes useful feedback while filtering out excess noise, delivering immersive and realistic driving sensations.
* Self-Developed Force Feedback Curve Adjustment: It allows the base force feedback output to have a nonlinear relationship with the game commands, amplifying dynamic force feedback that aids driving while weakening interfering forces. This helps drivers more easily detect vehicle loss of control, improves driving tolerance, and lets them confidently push the limits.

Intelligent Motor Temperature Control System
* It monitors the temperature of the motor and electronic components in real time, ensuring stable operation of the device even during endurance races.

High-Strength Aluminum Alloy Body
* Using automotive-grade coating and laser processing, it delivers a premium metallic texture.

Professional Conductive Slip Ring — Stable and Durable
* It securely connects the base and steering wheel, enabling high-speed rotation with a lifespan of up to 5 million revolutions. The data comes from MOZA laboratory durability tests.
* Stable performance, durable and reliable.

Mobile App Cloud Control
* Users can adjust the base, steering wheel, pedals, and other devices remotely. Parameter tuning during races can be done without pausing or switching windows. Main operations in the Pit House can be completed via smartphone or tablet.

MOZA Pit House – Professional Sim Racing Control Center
* MOZA's independently developed PC-based control center allows users to monitor the status of all devices within the MOZA ecosystem. Users can quickly adjust parameters and launch games without repetitive setup.
* Quick Tuning for the MOZA Ecosystem: Pit House enables function checks and personalized quick tuning for all MOZA devices. Users can launch games directly, apply one-click configurations, and access telemetry data. It offers a user-friendly interface and comprehensive functionality.
* Beginner-Friendly: It provides one-click scenario-based presets tailored to different racing car types and game titles, including official presets and exclusive setups from professional sim racers. Beginners can start racing immediately without a steep learning curve.
* 19 Force Feedback Tuning Parameters for a Custom Feel: It offers 19 adjustable parameters such as mechanical friction and road feel sensitivity. The open tuning platform allows players to create their ideal steering feel while learning about tuning and improving their skill level.
* Proprietary Road Surface Perception Equalizer: It enables precise, scenario-based adjustment of road texture vibration. It retains helpful feedback while filtering out excess vibrations, delivering an extraordinary immersive driving experience.
* Proprietary Force Feedback Curve Adjustment: It allows the base's force output to follow a non-linear relationship with in-game commands. It amplifies dynamic feedback beneficial to driving, dampens distracting forces, and helps the driver better detect vehicle instability—enhancing control near the limits.
* Detailed Steering Wheel Control: Through MOZA Pit House, users can finely tune settings such as dual-clutch paddles, knobs, joysticks, and shift indicator lights, significantly improving steering wheel handling.
* Precision Pedal Adjustment: On the pedal setup page, users can finely adjust throttle, brake, and clutch travel, output curves, and pressure response points. This helps players quickly develop proper braking techniques and effectively improve lap times.

Integrated Design Saves Space
* Using an integrated motor, it is compact and portable.
* It supports professional cockpits, integrated brackets, and desktop clamp installation, providing more installation options.
* Note: Desktop clamp installation requires purchasing the desktop clamp separately.

3. Specifications:
* Supported Platform: PC
* Drive Type: Direct Drive
* Maximum Steering Angle: 90° to 2700°
* Housing Material: Aluminum Alloy
* Maximum Torque: 9 Nm
* Maximum Power: 180W
* Input Voltage: 110V~220V AC → 36V DC
* Maximum USB Refresh Rate: 1000Hz
* App Functionality: Supported
* Quick Release: Supported
* Ports: Power, Data, Pedals, Display, Shifter, Handbrake, Emergency Stop Switch
* Mounting Method: Four bottom mounting holes; dedicated bracket supports angle adjustment and side mounting; desktop clamp supported
* Firmware Upgrade: Supported
* Desktop Clamp: Optional
* Side Mounting: Optional
* Emergency Stop Switch: Optional

4. Supported Games:
* For Assetto Corsa
* For Assetto Corsa Competizione
* For Forza Horizon 4 (Microsoft Store)
* For Forza Horizon 5
* For Euro Truck Simulator 2
* For American Truck Simulator
* For RaceRoom Racing Excperience
* For F1 2018
* For F1 2019
* For F1 2020
* For F1 2021
* For F1 22
* For F1 23
* For rFactor 2
* For Project CARS 1
* For Project CARS 2
* For Project CARS 3
* For WRC G
* For WRC 9
* For WRC 10
* For Dirt Rally
* For Dirt Rally 2.0
* For Dirt 4
* For iRacing
* For Wreckfest
* For KartKarft
* For Richard Burns Rally
* For Live For Speed
* For BeamNG.Drive
* For MudRunner
* For CarX Drift Racing Online
* For Automobilista 2

11" ESX Racing Wheel:
1. Features:
* Durable ISF PU Grips: Our non-slip, sweat-proof durable grips offer a premium feel whilst being environmentally friendly.
* Aluminum Wheel Rim: The solid aluminium alloy rim ensures maximum rigidity, durability and immersion.
* MOZA QR System: The Moza Racing QR system makes swapping wheels both easy and fast and is widely regarded as the best in the industry.
* 22 Customizable Buttons: 22 fully customizable buttons allow for racers to make all of the on-board adjustments they need while in the heat of battle.

2. Specifications:
* Platforms: For PC & Xbox
* Grips: ISF PU
* Face Plate Material: Aluminum Alloy
* Shifter Paddle Material: Aluminum Alloy
* Size: 280mm (11")
* Buttons: 22
* RPM LED Light: 10 High Brightness LED RGB Beads
* Intelligent Telemetry: Supported
* Fully Adjustable RPM LEDS through MOZA Pit House: Supported
* Release Method: MOZA Quick Release

3-Pedal SR-P:
1. Features:
* Made with High-strength Steel: The pedals are crafted from high-strength steel, ensuring superior quality and durability.
* Floor Mounted Organ Type Accelerator Pedal: The organ-style accelerator pedal allows the driver's foot and the pedal to move along the same trajectory, making throttle control easier and more precise.
* High-Precision 100KG Load Cell: The MOZA SR-P pedals feature advanced load cell sensors with a 100kg capacity. These sensors accurately detect brake pedal pressure, enabling users to apply the ideal braking force through precise pressure control.
* 16-bit High Precision Magnetic Encoder: The brake, optional clutch, and throttle pedals all use a 16-bit precision magnetic encoder with 65536 PPR resolution — offering much higher accuracy and greater stability than a Hall sensor.
* Dual Sensor Fusion Algorithm: The brake uses both pressure and angle sensors to allow precise braking control. In the initial stage, the angle sensor dominates, enabling racers to modulate the braking angle. In the mid and final stages, the pressure sensor takes over, making the pedal easier to control.
* Braking Spring and Damping Block Combined: By utilizing both a braking spring and a damping block, racers can enjoy greater control during the initial stage of pedal travel, along with a signature stiffness in the final stage that closely simulates real brake pedal feel.
* Direct Connection with PC through USB: The MOZA SR-P Pedals connect effortlessly to your PC via USB and can be easily calibrated using the intuitive MOZA Pit House software. With universal compatibility across all sim racing gear, they ensure a smooth and hassle-free experience for every racing enthusiast.
* Multiple Use Scenarios: The anti-slip mat on the bottom prevents the pedals from sliding during use without professional brackets, while still allowing easy integration into more advanced setups.
* Detachable Pedals: The pedals can be easily detached and mounted onto other professional brackets. For advanced users, they can also be installed in a reversed configuration.
* Pedal Output Curve Adjustment: MOZA Pit House allows easy configuration of pedal output curves to suit different needs.

2. Specifications:
* Material: High-strength steel
* Plate Material: High-strength steel
* Brake Sensor: Load cell + angle sensor
* Max Capacity: 100KG
* Throttle Sensor: Angle sensor
* Clutch Sensor: Angle sensor (Only for the 3-pedal set)
* Angle Sensor Resolution: 16-bit (65536ppr)
* Pedal Spacing: Adjustable
* Pedal Plate Height: Adjustable
* Pedal Connection Port: USB
* Pedal Travel Software Adjustment: Yes
* Pedal Travel Reverse Function: Yes
* Anti-Slipping Pad: Included

Packing List:
* 1 x Wheel base
* 1 x Steering wheel
* 1 x Set of pedals

Packaging Details:
* Weight: 13.32kg

Note:
* The SR-P pedals are compatible with other products and can be used via USB alongside any brand. They are not compatible with the SR-P Lite Clutch Pedal and SR-P Lite Brake Pedal Performance Kit.
