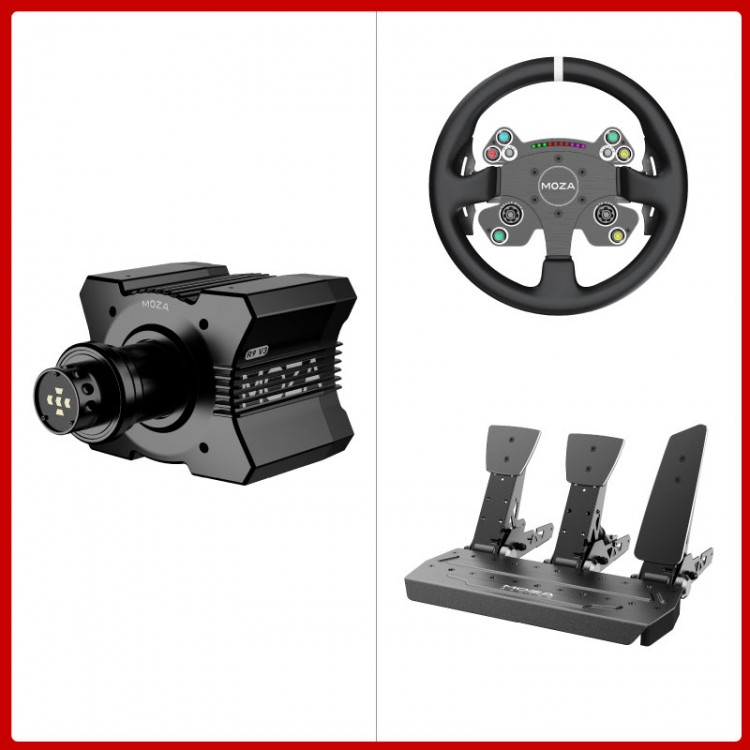

MOZA RACING R9 V3 9Nm Direct Drive Wheel Base + 13" CS V2P Steering Wheel + SR-P 3-Pedal Set

MOZA RACING R9 V3 9Nm Direct Drive Wheel Base + 13" CS V2P Steering Wheel + SR-P 3-Pedal Set

R9 V3 9Nm Direct Drive Wheel Base:
1. Features:
Professional True Servo with 9Nm of Torque
* It delivers a sustained and stable output of 9Nm torque, faithfully replicating the steering resistance from consumer vehicles to race cars. It finely transmits all driving details, meeting the gaming and training needs of most racing enthusiasts.

21-bit Magnetic Encoder & 280MHz High-Performance Processor
* 2.09 Million-Level Force Feedback Resolution: The 21-bit magnetic encoder divides each full rotation into 2,097,152 steps, offering ultra-refined control.
* With angle detection precision up to 0.00017°, the response is more accurate and the steering feel is smoother.
* It reproduces rich and detailed force feedback sensations with high realism.

High-Performance Servo Motor
* High torque density, compact yet powerful: Featuring a high slot fill ratio design, magnetic core with excellent conductivity, and strong neodymium magnets, it ensures lower power consumption and higher output.
* Multi-slot, multi-pole design with ultra-low torque ripple: 18-slot, 16-pole structure provides reduced torque ripple and superior vibration damping, making steering feel smoother and silkier.
* Wide High-Torque Speed Range: With a low back-EMF design, it maintains high torque even at high speeds, enabling fast direction corrections while preventing torque dropouts.

NexGen Force 4.0 Feedback System
* More detailed and refined force feedback lets you clearly perceive curbs and road surface bumps.
* The vehicle's center of gravity shift and tire slip response are more sensitive and rapid.
* A newly developed cogging torque compensation algorithm provides smoother steering feedback.
* Force Feedback Interpolation Algorithm: It eliminates force spikes during sudden feedback changes, creating a more natural and fluid experience.
* Game Feedback Decoupling: It deconstructs game force feedback into separately adjustable components, allowing for greater customization.
* Innovative Road Surface Perception Equalizer: Scene-based vibration tuning maximizes useful feedback while filtering out excess noise, delivering immersive and realistic driving sensations.
* Self-Developed Force Feedback Curve Adjustment: It allows the base force feedback output to have a nonlinear relationship with the game commands, amplifying dynamic force feedback that aids driving while weakening interfering forces. This helps drivers more easily detect vehicle loss of control, improves driving tolerance, and lets them confidently push the limits.

Intelligent Motor Temperature Control System
* It monitors the temperature of the motor and electronic components in real time, ensuring stable operation of the device even during endurance races.

High-Strength Aluminum Alloy Body
* Using automotive-grade coating and laser processing, it delivers a premium metallic texture.

Professional Conductive Slip Ring — Stable and Durable
* It securely connects the base and steering wheel, enabling high-speed rotation with a lifespan of up to 5 million revolutions. The data comes from MOZA laboratory durability tests.
* Stable performance, durable and reliable.

Mobile App Cloud Control
* Users can adjust the base, steering wheel, pedals, and other devices remotely. Parameter tuning during races can be done without pausing or switching windows. Main operations in the Pit House can be completed via smartphone or tablet.

MOZA Pit House – Professional Sim Racing Control Center
* MOZA's independently developed PC-based control center allows users to monitor the status of all devices within the MOZA ecosystem. Users can quickly adjust parameters and launch games without repetitive setup.
* Quick Tuning for the MOZA Ecosystem: Pit House enables function checks and personalized quick tuning for all MOZA devices. Users can launch games directly, apply one-click configurations, and access telemetry data. It offers a user-friendly interface and comprehensive functionality.
* Beginner-Friendly: It provides one-click scenario-based presets tailored to different racing car types and game titles, including official presets and exclusive setups from professional sim racers. Beginners can start racing immediately without a steep learning curve.
* 19 Force Feedback Tuning Parameters for a Custom Feel: It offers 19 adjustable parameters such as mechanical friction and road feel sensitivity. The open tuning platform allows players to create their ideal steering feel while learning about tuning and improving their skill level.
* Proprietary Road Surface Perception Equalizer: It enables precise, scenario-based adjustment of road texture vibration. It retains helpful feedback while filtering out excess vibrations, delivering an extraordinary immersive driving experience.
* Proprietary Force Feedback Curve Adjustment: It allows the base's force output to follow a non-linear relationship with in-game commands. It amplifies dynamic feedback beneficial to driving, dampens distracting forces, and helps the driver better detect vehicle instability—enhancing control near the limits.
* Detailed Steering Wheel Control: Through MOZA Pit House, users can finely tune settings such as dual-clutch paddles, knobs, joysticks, and shift indicator lights, significantly improving steering wheel handling.
* Precision Pedal Adjustment: On the pedal setup page, users can finely adjust throttle, brake, and clutch travel, output curves, and pressure response points. This helps players quickly develop proper braking techniques and effectively improve lap times.

Integrated Design Saves Space
* Using an integrated motor, it is compact and portable.
* It supports professional cockpits, integrated brackets, and desktop clamp installation, providing more installation options.
* Note: Desktop clamp installation requires purchasing the desktop clamp separately.

2. Supported Games:
* Assetto Corsa
* Assetto Corsa Competizione
* Forza Horizon 4 (Microsoft Store)
* Forza Horizon 5
* Euro Truck Simulator 2
* American Truck Simulator
* RaceRoom Racing Excperience
* F1 2018
* F1 2019
* F1 2020
* F1 2021
* F1 22
* F1 23
* rFactor 2
* Project CARS 1
* Project CARS 2
* Project CARS 3
* WRC G
* WRC 9
* WRC 10
* Dirt Rally
* Dirt Rally 2.0
* Dirt 4
* iRacing
* Wreckfest
* KartKarft
* Richard Burns Rally
* Live For Speed
* BeamNG.Drive
* MudRunner
* CarX Drift Racing Online
* Automobilista 2

3. Specifications:
* Supported Platform: PC
* Drive Type: Direct Drive
* Maximum Steering Angle: 90° to 2700°
* Housing Material: Aluminum Alloy
* Maximum Torque: 9 Nm
* Maximum Power: 180W
* Input Voltage: 110V~220V AC → 36V DC
* Maximum USB Refresh Rate: 1000Hz
* App Functionality: Supported
* Quick Release: Supported
* Ports: Power, Data, Pedals, Display, Shifter, Handbrake, Emergency Stop Switch
* Accessories: User Manual, Power Supply, Data Cable, Screw Kit
* Mounting Method: Four bottom mounting holes; dedicated bracket supports angle adjustment and side mounting; desktop clamp supported
* Firmware Upgrade: Supported
* Desktop Clamp: Optional
* Side Mounting: Optional
* Emergency Stop Switch: Optional

CS V2P Steering Wheel:
1. Features:
* 13-Inch Standard Racing Rim: With a true-to-life size matching that of a real racing car, the CS V2P delivers an immersive and realistic sim racing experience.
* Aviation-Grade Aluminum Alloy Frame: Constructed with aviation-grade aluminum alloy for the rim, operation board, and base plate, the wheel boasts exceptional quality, strength, and rigidity.
* Customized Quick Release: MOZA's customized quick-release system, inspired by real racing technology, allows drivers to swap wheels within seconds while maintaining a secure and stable connection.
* Forged Carbon Fiber Magnetic Shifter: The magnetic shifters feature a solid, responsive feel and a premium forged carbon fiber design. Utilizing contactless photoelectric technology, the paddles offer exceptional stability and ensure precise shifting every time.
* RGB Sequential Shift Light Indicator: The CS V2P features 10 RGB LED sequential shift lights with 7 adjustable colors, allowing racers to customize the rev-speed lighting.
* Programmable Mechanical Key Buttons: It features 6 programmable mechanical buttons with tactile feedback.
* Two Pressable Universal Joysticks: They can simulate 10 buttons and 2 sets of D-pads, effectively expanding the functionality of the steering wheel to meet the complex control needs of most competitive racing games.
* MOZA Invisible Wireless Connection Technology: MOZA's 2.4G wireless signal technology provides seamless, cable-free racing. Tested over thousands of hours, it offers superior stability and longer service life compared to traditional wired connections.

2. Specifications:
* Grips: Microfiber Leather
* Face Plate Material: Aluminum Alloy
* Back Plate Material: Aluminum Alloy
* Shifter Material: Forged Carbon Fiber
* Size: 13 Inches
* Magnetic Shifters: 2
* Mechanical Key Buttons: 6
* Joysticks: 2
* Rotary Encoders: 2
* LED RGB Light Beads: 10
* Choice of Colors: 7
* Intelligent Telemetry: Yes
* Fully Adjustable RPM LEDs through MOZA Pit House: Supported
* Release Method: MOZA Quick Release
* Communication Method: Wireless
* Shifter Sensor: Non-contact Photoelectric Sensor

SR-P 3-Pedal Set:
1. Features:
* Made with High-strength Steel: The pedals are crafted from high-strength steel, ensuring superior quality and durability.
* Floor Mounted Organ Type Accelerator Pedal: The organ-style accelerator pedal allows the driver's foot and the pedal to move along the same trajectory, making throttle control easier and more precise.
* High-Precision 100KG Load Cell: The MOZA SR-P pedals feature advanced load cell sensors with a 100 kg capacity. These sensors accurately detect brake pedal pressure, enabling users to apply the ideal braking force through precise pressure control.
* 16-bit High Precision Magnetic Encoder: The brake, optional clutch, and throttle pedals all use a 16-bit precision magnetic encoder with 65536 PPR resolution — offering much higher accuracy and greater stability than a Hall sensor.
* Dual Sensor Fusion Algorithm: The brake uses both pressure and angle sensors to allow precise braking control. In the initial stage, the angle sensor dominates, enabling racers to modulate the braking angle. In the mid and final stages, the pressure sensor takes over, making the pedal easier to control.
* Braking Spring and Damping Block Combined: By utilizing both a braking spring and a damping block, racers can enjoy greater control during the initial stage of pedal travel, along with a signature stiffness in the final stage that closely simulates real brake pedal feel.
* Direct Connection with PC through USB: The MOZA SR-P Pedals connect effortlessly to your PC via USB and can be easily calibrated using the intuitive MOZA Pit House software. With universal compatibility across all sim racing gear, they ensure a smooth and hassle-free experience for every racing enthusiast.
* Multiple Use Scenarios: The anti-slip mat on the bottom prevents the pedals from sliding during use without professional brackets, while still allowing easy integration into more advanced setups.
* Detachable Pedals: The pedals can be easily detached and mounted onto other professional brackets. For advanced users, they can also be installed in a reversed configuration.
* Pedal Output Curve Adjustment: MOZA Pit House allows easy configuration of pedal output curves to suit different needs.

2. Specifications:
* Material: High-strength steel
* Plate Material: High-strength steel
* Brake Sensor: Load cell + angle sensor
* Max Capacity: 100KG
* Throttle Sensor: Angle sensor
* Clutch Sensor: Angle sensor (Only for the 3-pedal set)
* Angle Sensor Resolution: 16-bit (65536ppr)
* Pedal Spacing: Adjustable
* Pedal Plate Height: Adjustable
* Pedal Connection Port: USB
* Pedal Travel Software Adjustment: Yes
* Pedal Travel Reverse Function: Yes
* Anti-Slipping Pad: Included

Packing List:
* 1 x Set of wheel base + steering wheel + pedals

Packaging Details:
* Weight: 14.72kg

Note:
* The SR-P pedals are compatible with other products and can be used via USB alongside any brand. They are not compatible with the SR-P Lite Clutch Pedal and SR-P Lite Brake Pedal Performance Kit.
