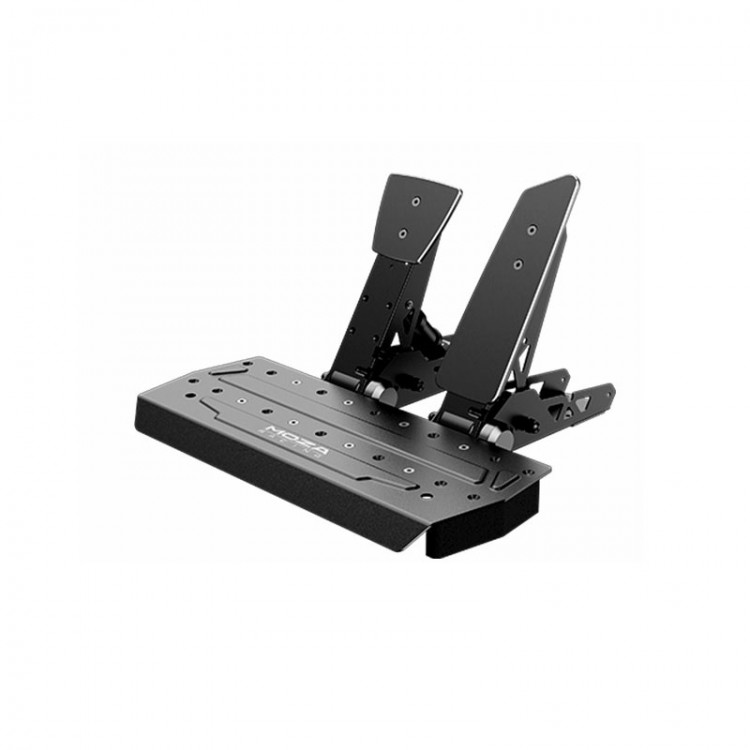

MOZA RACING SRP Sim Racing Pedals (SR-P 2-Pedal Set without Clutch) with 100KG Load Cell Sensor

MOZA RACING SRP Sim Racing Pedals (SR-P 2-Pedal Set without Clutch) with 100KG Load Cell Sensor

Description:
Upgrade your racing experience with the MOZA SR-P pedals, engineered for top performance and precision. Crafted from high-strength steel and equipped with a high-precision pressure sensor capable of detecting up to 100 kg, these reliable pedals deliver solid, responsive inputs. A 16-bit magnetic encoder records every movement with exceptional accuracy. Customize your setup with adjustable pedal spacing for optimal comfort, and enjoy seamless PC connectivity via USB. Experience smooth and controlled braking thanks to the combined braking spring and damping block.

Features:
Made with High-strength Steel
* The pedals are crafted from high-strength steel, ensuring superior quality and durability.

Floor Mounted Organ Type Accelerator Pedal
* The organ-style accelerator pedal allows the driver's foot and the pedal to move along the same trajectory, making throttle control easier and more precise.

High-Precision Load Cell: Maximum Capacity of 100 KG
* The MOZA SR-P pedals feature advanced load cell sensors with a 100 kg capacity. These sensors accurately detect brake pedal pressure, enabling users to apply the ideal braking force through precise pressure control.

16-bit High Precision Magnetic Encoder
* The brake, optional clutch, and throttle pedals all use a 16-bit precision magnetic encoder with 65536 PPR resolution — offering much higher accuracy and greater stability than a Hall sensor.

Dual Sensor Fusion Algorithm
* The brake uses both pressure and angle sensors to allow precise braking control. In the initial stage, the angle sensor dominates, enabling racers to modulate the braking angle. In the mid and final stages, the pressure sensor takes over, making the pedal easier to control.

Braking Spring and Damping Block Combined
* By utilizing both a braking spring and a damping block, racers can enjoy greater control during the initial stage of pedal travel, along with a signature stiffness in the final stage that closely simulates real brake pedal feel.

Direct Connection with PC through USB
* The MOZA SR-P Pedals connect effortlessly to your PC via USB and can be easily calibrated using the intuitive MOZA Pit House software. With universal compatibility across all sim racing gear, they ensure a smooth and hassle-free experience for every racing enthusiast.

Multiple Use Scenarios
* The anti-slip mat on the bottom prevents the pedals from sliding during use without professional brackets, while still allowing easy integration into more advanced setups.

Detachable Pedals
* The pedals can be easily detached and mounted onto other professional brackets. For advanced users, they can also be installed in a reversed configuration.

Pedal Output Curve Adjustment
* MOZA Pit House allows easy configuration of pedal output curves to suit different needs.

Specifications:
* Material: High-strength steel
* Plate Material: High-strength steel
* Brake Sensor: Load cell + angle sensor
* Max Capacity: 100KG
* Throttle Sensor: Angle sensor
* Angle Sensor Resolution: 16-bit (65536ppr)
* Pedal Spacing: Adjustable
* Pedal Plate Height: Adjustable
* Pedal Connection Port: USB
* Pedal Travel Software Adjustment: Yes
* Pedal Travel Reverse Function: Yes
* Anti-Slipping Pad: Included
* Size: 410*310*170 (mm) -Pedal Set of 2 (No clutch)

Packing List:
* 1 x 2-Pedal Set

Packaging Details:
* Weight: 4.3kg

Note:
* The SR-P pedals are compatible with other products and can be used via USB alongside any brand.
* They are not compatible with the SR-P Lite Clutch Pedal and SR-P Lite Brake Pedal Performance Kit.
