| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $90.78 | $88.92 | $86.15 | $82.44 | Contact US |

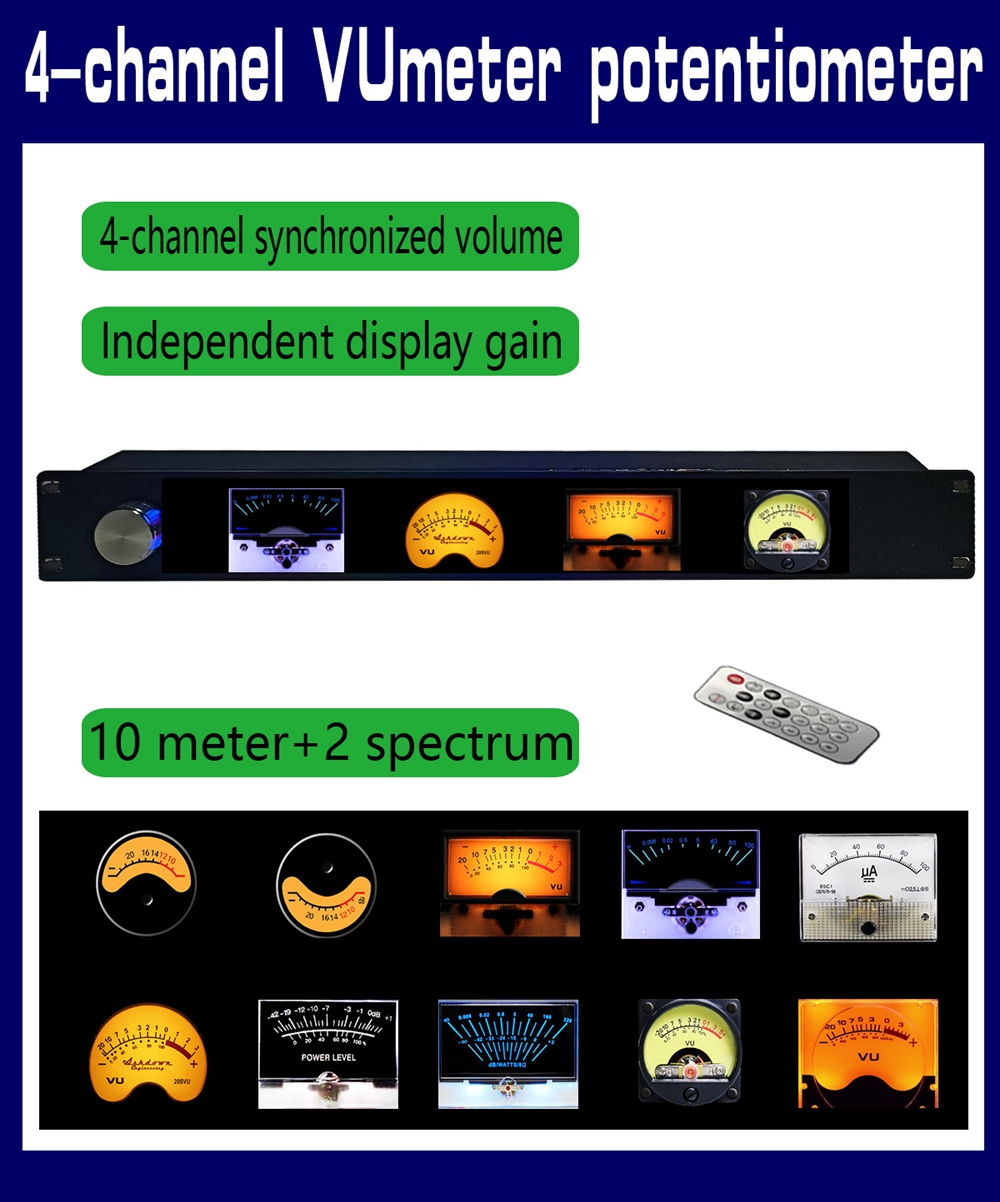

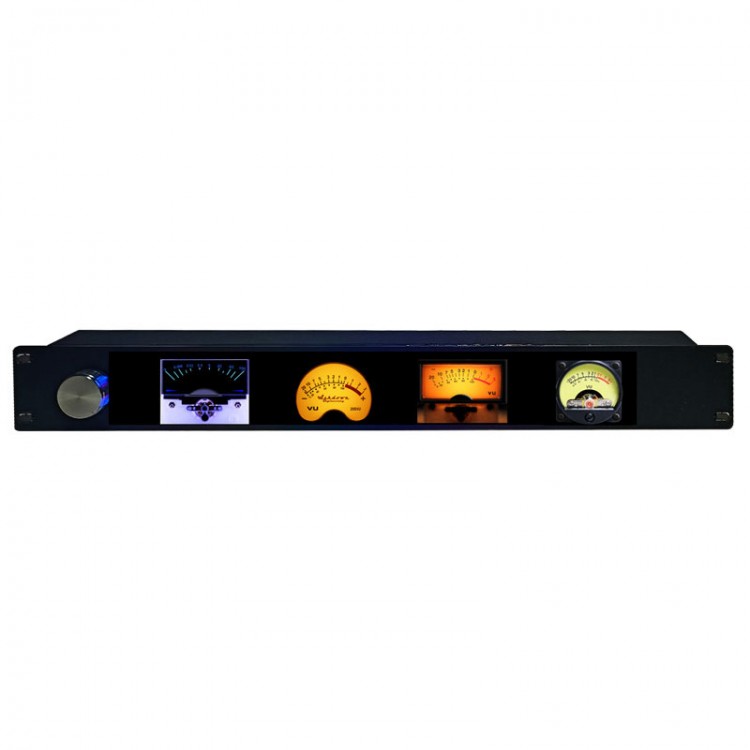

Multi-mode 4-Channel LCD VU Meter Volume Controller Built-in Digital Volume Potentiometer Support Spectrum Display
Description:

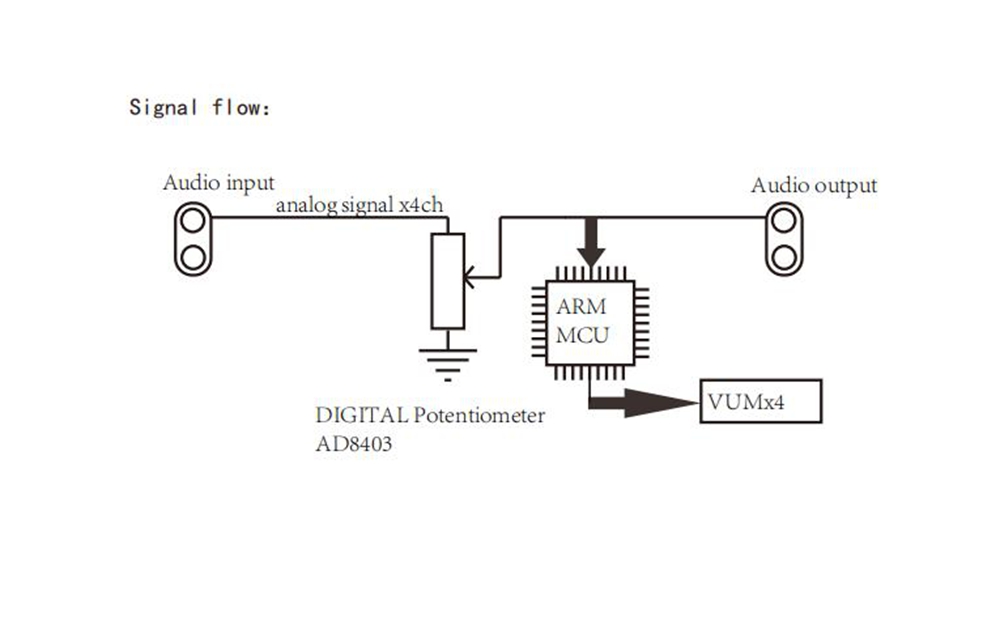

- This device contains four independent audio channels that are output through digital potentiometers. And simulate the VU meter display of the voltage level on four output channels. Built in multiple meters, background can be switched, and display gain can be independently adjusted. Easy to operate, all operations only require one encoder knob or a remote control, supporting global voltage, it is very suitable for commercial and household use as well as various professional venues.
Features:
- 4-channel input, 4 VU meter
- Single button encoder or remote control adjustment

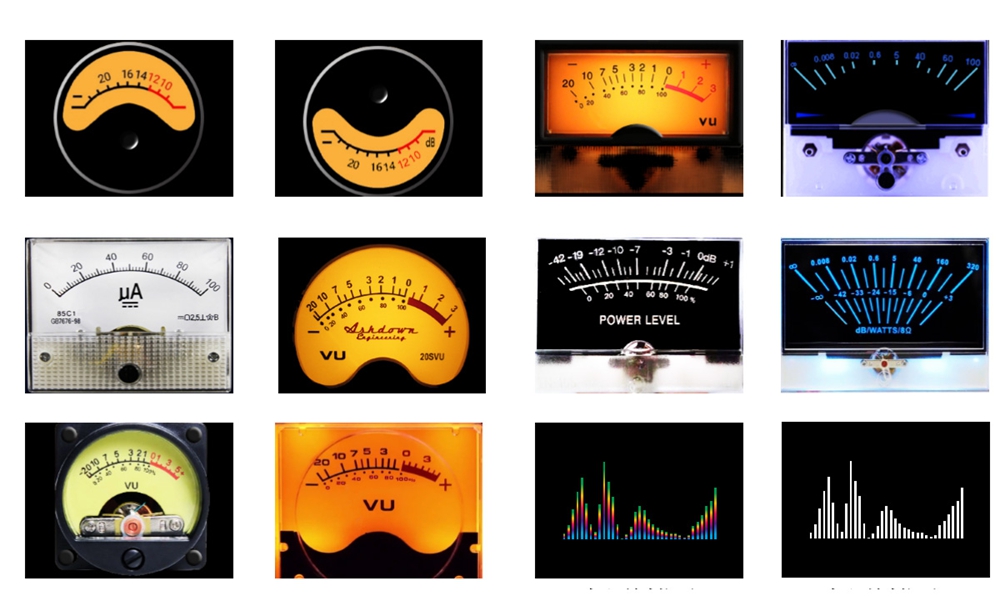

- 10 display modes independent adjustment
- The brightness and gain can be adjusted independently
- Digital potentiometer attenuation output
Specification:
- Power supply voltage: AC100 - 240V
- Maximum current: 0.5A
- Frequency weighting: 20Hz - 20kHz
- Input sensitivity: > -35dB (at 1kHz)
- Input impedance: 10kohms
- Output impedance: ≤10kohms
- Input level range: -65dBV to 0dBV
- Display sampling rate: 40kHz

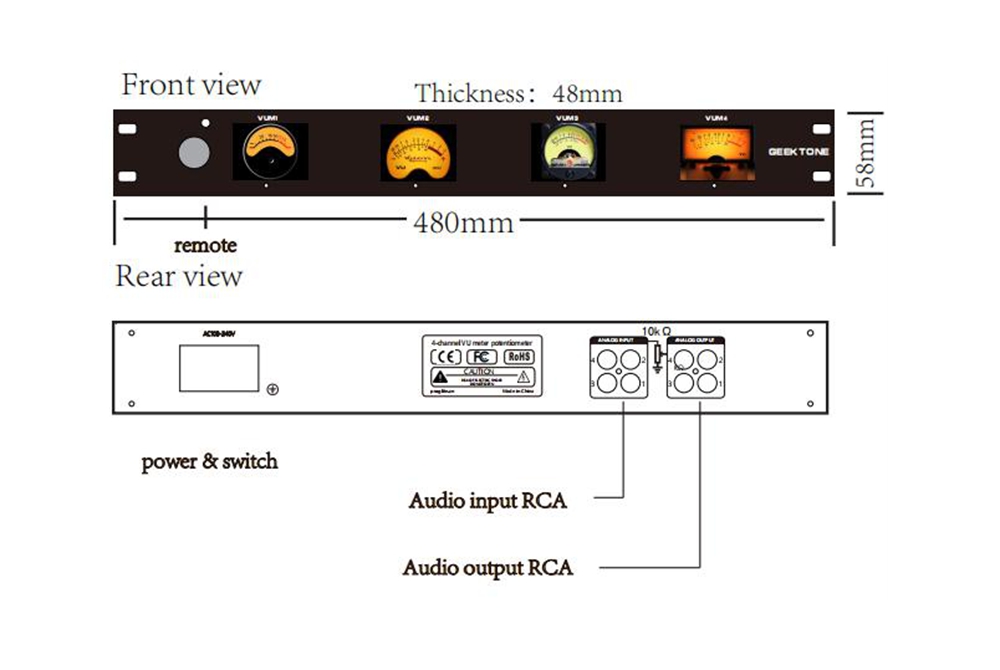

- Product size: 480 x 58 x 48mm
- Net weight: 1000g
Package Included:
- 1 x Volume Controller
