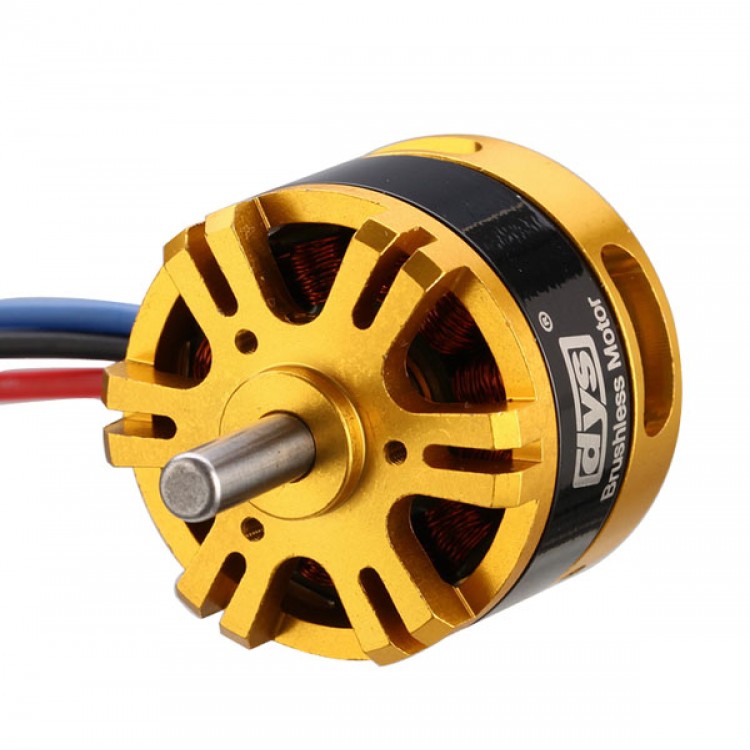

Multi Rotor Brushless Motor BE2808-10 (1400KV) for Quad Hexa Octa Multicopter
Specifications:
- KV..............................................................................................................1400
- Configuration....................................................................................NP
- Stator Diameter....................................................................................28mm
- Stator Length..........................................................................................8mm
- Shaft Diameter.......................................................................................5mm
- Motor Dimensions(Dia.*Len)...............................................Φ35×42mm
- Weight (g)...................................................................................................75g
- No.of Cells(Lipo).....................................................................................3-5S
- Max Continuous current(A)............................................................18.5A
- Max Continuous Power(W)...........................................................629W
- Internal resistance..............................................................................0.045Ω
| Item No. | NO LOAD | ON LOAD | LOAD TYPE | ||||
| BE2808-10 (1400KV) | VOLTAGE | CURRENT | SPEED | CURRENT | Pull | Power | Battery/prop |
| V | A | rpm | A | g | W | ||
| 11.1 | 1.2 | 15640 | 14.8 | 710 | 164.3 | LiPoх3/7x4E | |
| 24.7 | 1020 | 274.2 | LiPoх3/8x4E | ||||
| 29 | 1230 | 321.9 | LiPoх3/9x6E | ||||
| 14.8 | 1.3 | 20850 | 23 | 1110 | 340.4 | LiPoх4/7x4E | |
| 37.8 | 1410 | 559.4 | LiPoх4/8x4E | ||||
| 18.5 | 1.3 | 26070 | 34 | 1500 | 629.0 | LiPoх5/7x4E | |
