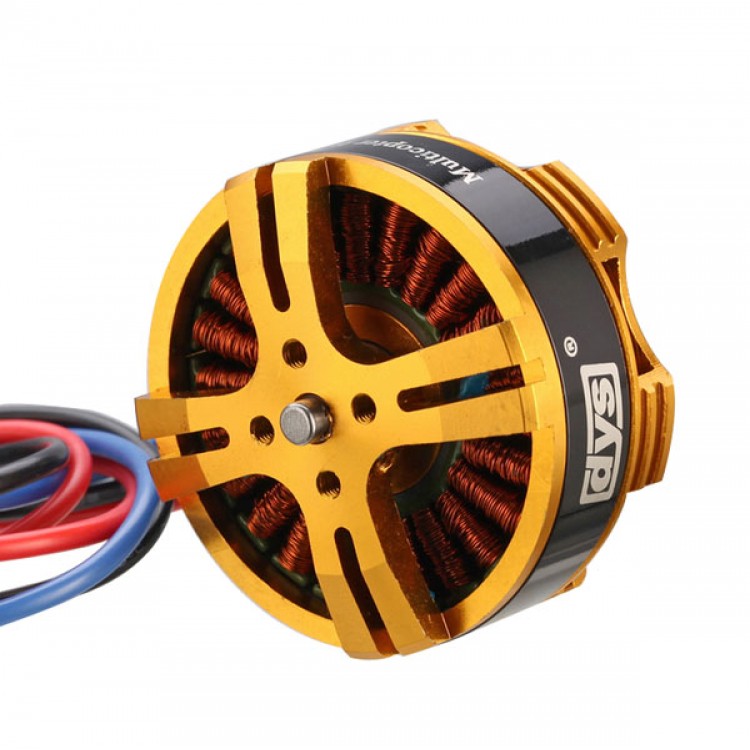

Multi Rotor Brushless Motor BE4108-8 (720KV) Short Shaft for Quad Hexa Octa Multicopter
Specifications:
KV..............................................................................................................720
Configu ration....................................................................................NP
Stator Diameter....................................................................................41mm
Stator Length..........................................................................................8mm
Shaft Diameter.......................................................................................4.0mm
Motor Dimensions(Dia.*Len)...............................................Φ46x25mm
Weight (g)...................................................................................................113g
No.of Cells(Lipo).....................................................................................3-6S
Max Continuous current(A)............................................................22.2A
Max Continuous Power(W)...........................................................666W
internal resistance..............................................................................0.055Ω
| Item No. | NO LOAD | ON LOAD | LOAD TYPE | ||||
|
BE4108-8 (720KV) |
VOLTAGE | CURRENT | SPEED | CURRENT | Pull | Power | Battery/prop |
| V | A | rpm | A | g | W | ||
| 11.1 | 1.3 | 8000 | 12.8 | 900 | 142.1 | LiPoх3/10x4.7(APC) | |
| 19.8 | 1270 | 219.8 | LiPoх3/12x3.8(APC) | ||||
| 21.2 | 1190 | 235.3 | LiPoх3/13x6.5(CF prop） | ||||
| 17.3 | 1050 | 192.0 | LiPoх3/14x3.8(CF prop） | ||||
| 14.8 | 1.4 | 10660 | 20.2 | 1430 | 299.0 | LiPoх4/10x4.7(APC) | |
| 30.7 | 1800 | 454.4 | LiPoх4/12x3.8(APC) | ||||
| 31 | 1670 | 458.8 | LiPoх4/13x6.5(CF prop） | ||||
| 25.5 | 1610 | 377.4 | LiPoх4/14x3.8(CF prop） | ||||
| 18.5 | 1.5 | 13330 | 28 | 2000 | 518.0 | LiPoх5/10x4.7(APC) | |
| 37 | 2280 | 684.5 | LiPoх5/12x3.8(APC) | ||||
| 22.2 | 1.5 | 16000 | 30 | 2200 | 666.0 | LiPoх6/10x4.7(APC) | |
