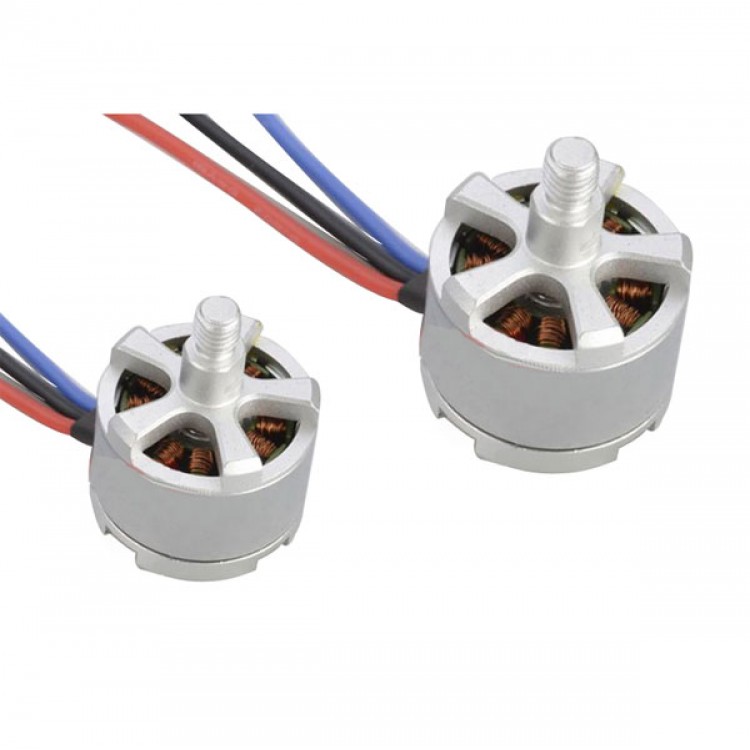

Multi Rotor Brushless Motor BX2212 (920KV) Short Shaft for Quad Hexa Octa Multicopter

Multi Rotor Brushless Motor BX2212 (920KV) Short Shaft for Quad Hexa Octa Multicopter

Specifications:
- KV..............................................................................................................920
- Configu ration....................................................................................NP
- Stator Diameter....................................................................................22mm
- Stator Length..........................................................................................12mm
- Shaft Diameter.......................................................................................3.0mm
- Motor Dimensions(Dia.*Len)...............................................Φ22×15mm
- Weight (g)...................................................................................................28g
- No.of Cells(Lipo).....................................................................................3-5S
- Max Continuous current(A)............................................................30A
- Max Continuous Power(W)...........................................................318W
- Internal resistance..............................................................................Ω

Magnet specification is 40 uh, the bearing NSK, and the core material is 0.2 mm thick ultra-low loss material, with rotor balancing process, enameled wire can be 220 °.
