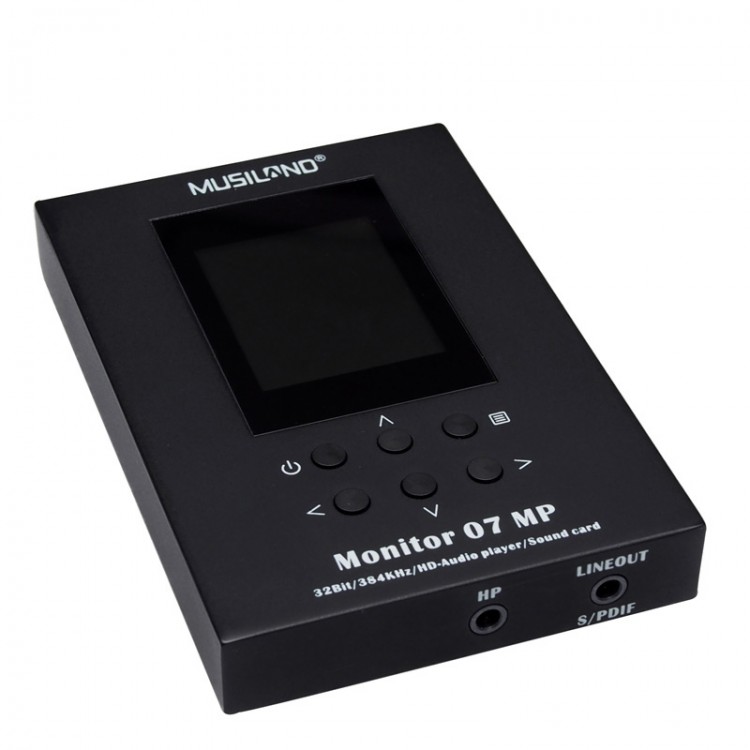

MUSILAND 07MP 32bit/384KHz Sound Card HD-Audio Player PDA Mobile Android iOS Linux Mac Windows PCM DSD USB DAC Earphone Amplifier

MUSILAND 07MP 32bit/384KHz Sound Card HD-Audio Player PDA Mobile Android iOS Linux Mac Windows PCM DSD USB DAC Earphone Amplifier

Features:
- The dual-core processor is upgraded as SuperDSP200, more powerful audio processing capabilities.
- A special low resistance lithium polymer battery
- Intelligent power path management, the USB power supply is not sufficient, battery automatic intervention
- Improved power charging circuit, completely isolated from the power supply circuit with the audio
- Improved high-speed response frequency power
- Intelligent power management PMU, significantly reduce PCB area
- SuperAMP100, small size, low distortion, and with intelligent load impedance determination function. When driving headphones can provide up to 800mA drive current transient; driving circuit load, 2V RMS output level, distortion as low as 0.0001% or less and keep more than 120dB dynamic range.
- Support DSD playing.
- Built-in battery,for more than 10 hours playing
- Under the power supply adequacy, Monitor 08 MP only needs about 2.5 hours to fully charge,
- The volume is reduced by half the size, more portable
- Compatible with UAC2.0 USB asynchronous protocol, supportWindows,MAC, IOS, Linux, Android and so on.
- Interface for connection to mobile phones and tablet devices without an interface adapter (using the dedicated USB cable).
- Intelligent power management, automatic distribution charge and supply current
- LCD, and the use of super-console display
-  Easy manipulation designed to quickly open files, folders, and support for multiple playlists.
- Short circuit protection, high temperature protection (50 ° C), low temperature protection (0 degrees Celsius), static pulse protection (air discharge 5000V, contacts 300V, 1 millisecond) readily available.
- Support TF card,64GB

Parameters:
- Input interface: MICRO USB, voltage> 4.5V, the current>1500mA
- Power: ≤1.5W
- Analog output: 32bit / 384kHz
- Digital output: 32bit / 384kHz

Analog Output
- Dynamic Range (D / A): 116dB
- Signal to noise ratio (D / A): 116dB
- Total harmonic distortion (D / A): 0.002%
- Frequency response (20Hz ~ 20KHz): + - 0.3dB
- Line Output Level: 2Vrms
- Line Output Impedance: 10kΩ
- Headphone output power: 2x100mW / 300Ω

Digital Output
- Dynamic range: 144dB
- SNR (A-weighted): 144dB
- Total harmonic distortion: 0.00001%
- Frequency response (20Hz ~ 20KHz): + - 0dB

Package included:
- 1 x Sound Card/HD-Audio Player
- 1 x Manual
- Cables
