MY003-005 State Grid Meter Reader Data Acquisition Module Far Infrared To RS485 Converter 12V

Availability: In stock, usually dispatched in 1 business day

  • Price:$32.24
  • Price in reward points: 322 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $31.60 $30.95 $29.98 $28.69 Contact US
Quantity:

MY003-005 State Grid Meter Reader Data Acquisition Module Far Infrared To RS485 Converter 12V

Features:

- State grid meter reader
- RS485 remote electric meter reading
- 5V/12V/24V power supply
- Far infrared to RS485
- With a communication indicator
- Wire length 1.5M
- Infrared PVC transparent lens, anti-interference
- Standard RS485 interface

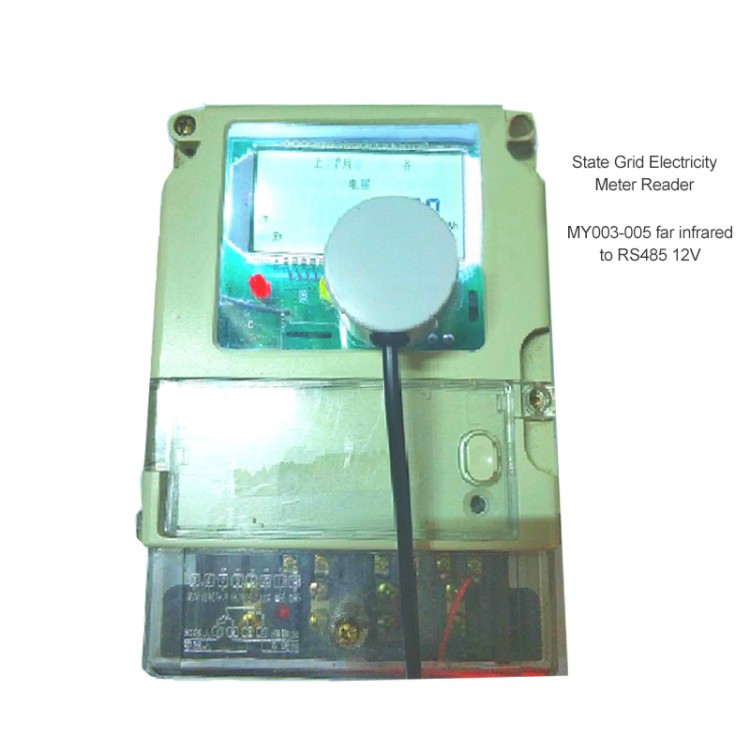

- Double-sided tape fixes the meter reader on a state grid electric energy meter
- During testing, it can be attached to a meter that supports near-infrared communication for data transcription. Users can set rate parameters, it reads instantaneous variables

Applications:
Based on 38kHz signal modulation and demodulation, it is a far-infrared converter. Using state grid RS485 chip, far-infrared pair tube for Vishay, integrated circuit for TI, 38KHz crystal oscillator as clock signal source. This product is suitable for electric energy meters, water meters, gas meters and other instruments with local data reading function with far-infrared communication ports.

Product Parameters:
1. Modulation and demodulation signal frequency: 38KHz
2. Communication baud rate: up to 2400bps, higher baud rate will reduce the effective range
3. Communication distance and angle: 3-5 meters, ≤15°
4. Working voltage: from 485 terminal, the highest input voltage can reach 40V, meet the commonly used 5V, 12V, 24V
5. The direction of infrared transmission and receiving is about 120°, not 360°. In the external infrared test, it is not that the closer the distance, the more stable performance. Since the infrared transmission is a fan-shaped area, the transmission axis of each tube will be a bit deviated, which will cause unstable communication when being close sometimes. It is recommended to keep the distance between 15cm-50cm during testing. It doesn't matter if the distance is a little longer, gradually increase the test distance, and it can work normally when the distance is 3 meters in our test.
6. Infrared can only be tested with expensive handhelds or other special conversion tools. This needs many tools and causes inconvenient operation. The converter solves this problem. Thanks to standard RS485 interface, it is convenient to wire and simple to use.

Package Included:
- 1 x Far Infrared To RS485 Converter Meter Reader

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
