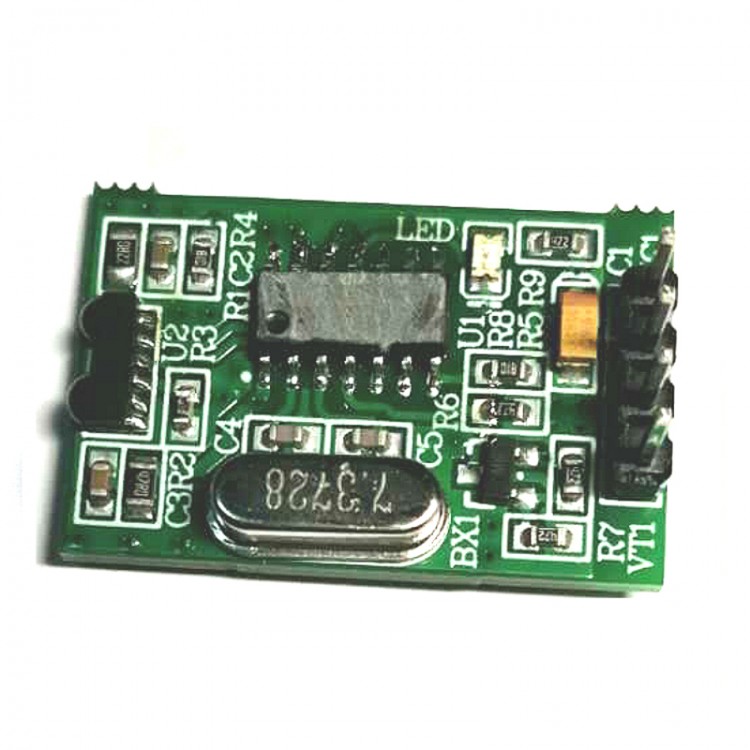

MY018 IRDA High-Speed Infrared To TTL Module Transparent Transmission 115200BPS Infrared SIR Module
Description:

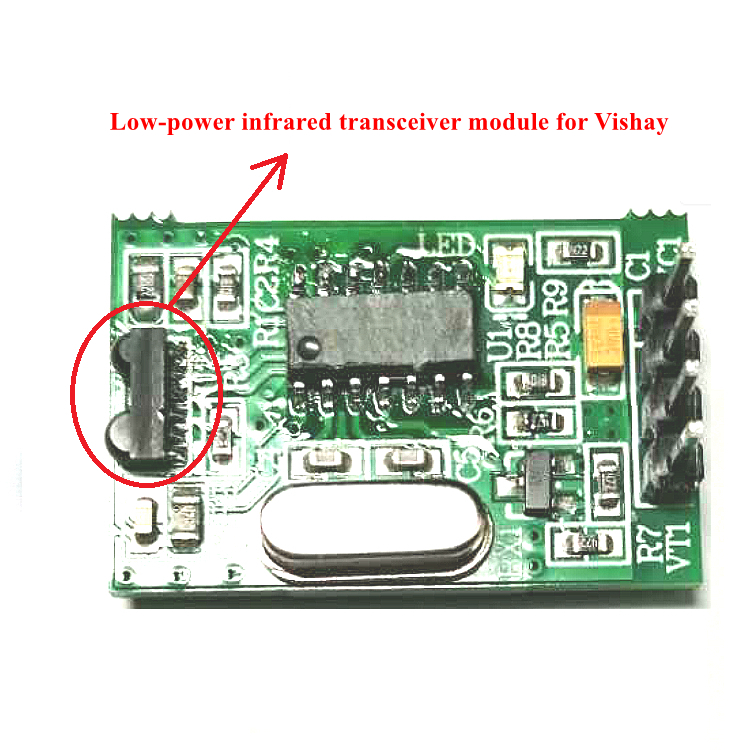

The IrDA to TTL module uses a low-power infrared data transceiver module for Vishay, supports IrDA data rate of 115.2kbit/s (SIR). Convert IrDA data to TTL serial port data, realize the docking between infrared module and ordinary serial port , and short-distance wireless communication between infrared modules.
5 baud rates can be selected. Transparent transmission, standard TTL interface.
Specifications:
- Module dimensions: 27mmx 17.5mm
- Operating voltage range: 2.5V-5V
- Communication rate: 9.6kbit/s to 115.2kbit/s (SIR), half duplex
- Communication distance: 1-meter linear communication distance
- TTL interface: standard RM2.54mm pin interface is convenient for docking with the UART interface of users' motherboard; from the square pad to the left are VCC, TXD, RXD, GND
Baud Rate Setting:
- Default baud rate: 115200bps

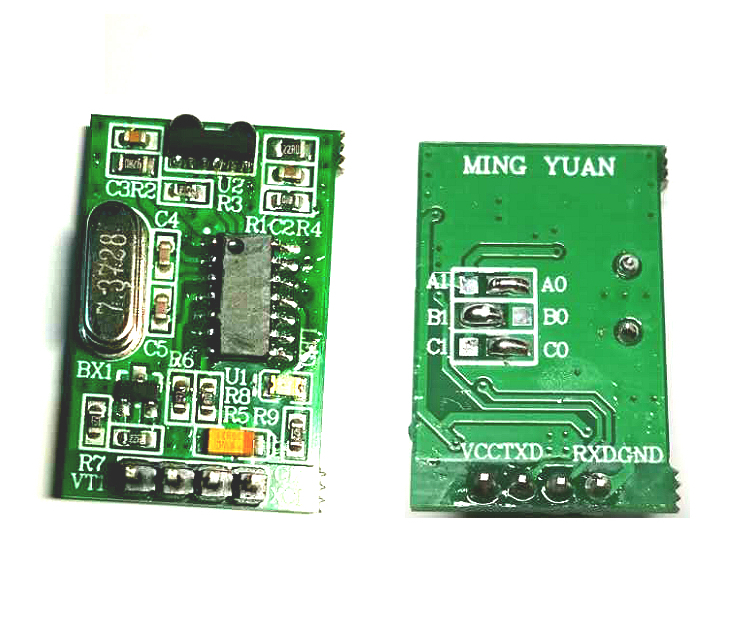

- The baud rate can be set by three short-circuit contacts on the bottom side of the module
Short-circuit points Baud rates
C0B0A0 9600
C0B0A1 19200
C0B1A0 38400
C0B1A1 57600
C1B0A0 115200
Package Included:
- 1 x Infrared To TTL Module
