NanoPi R5S Mini Router Mini PC Router Dual 2.5G w/ CNC Metal Case RK2568 Board (2GB RAM + 8GB EMMC)

NanoPi R5S Mini Router Mini PC Router Dual 2.5G w/ CNC Metal Case RK2568 Board (2GB RAM + 8GB EMMC)

WiKi Tutorial (firmware introduction, instructions, operation steps, etc.):
https://wiki.friendlyelec.com/wiki/index.php/NanoPi_R5S

Download Firmware:
http://download.friendlyelec.com/nanopir5s

Introduction:

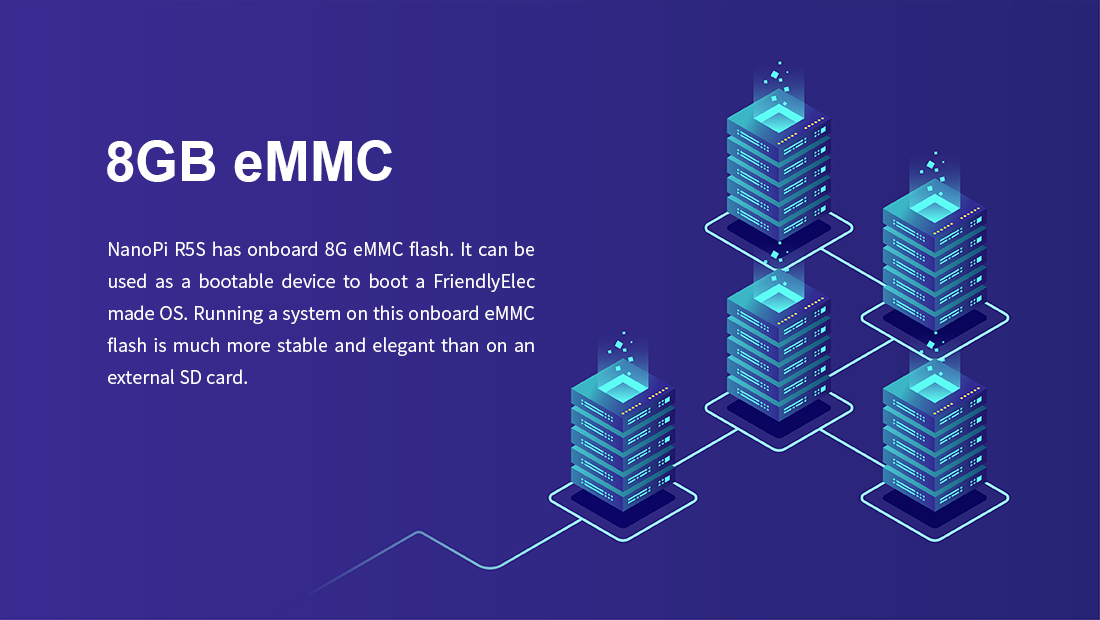

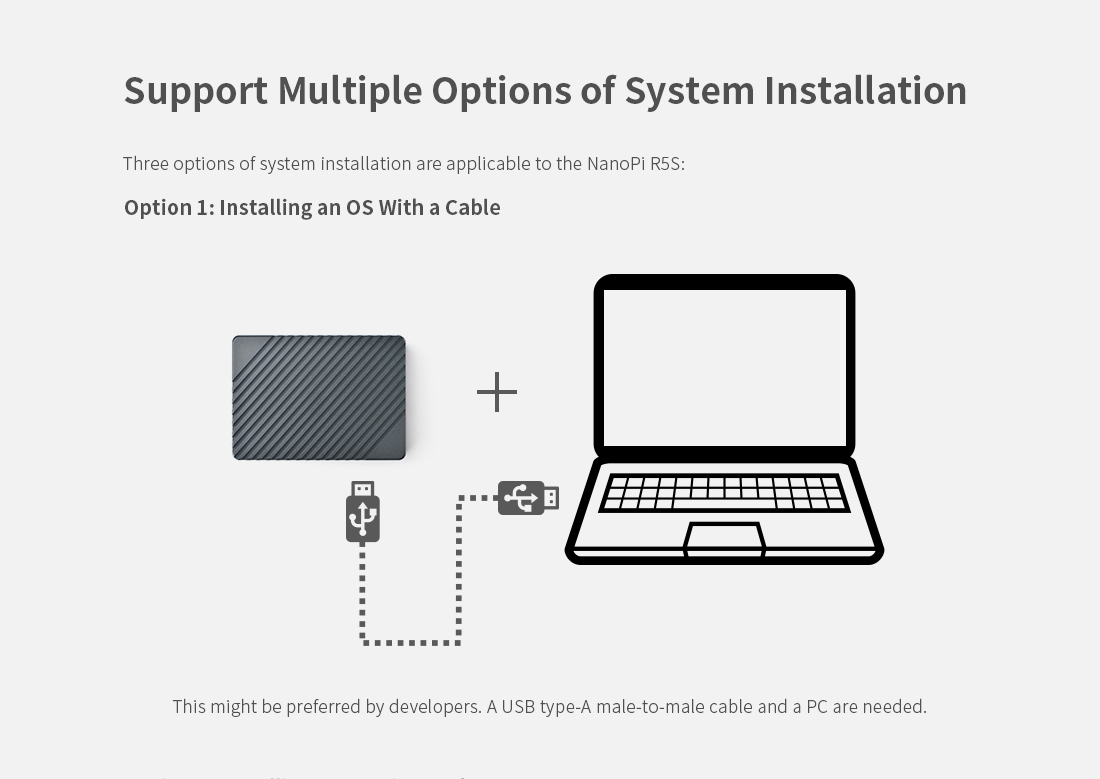

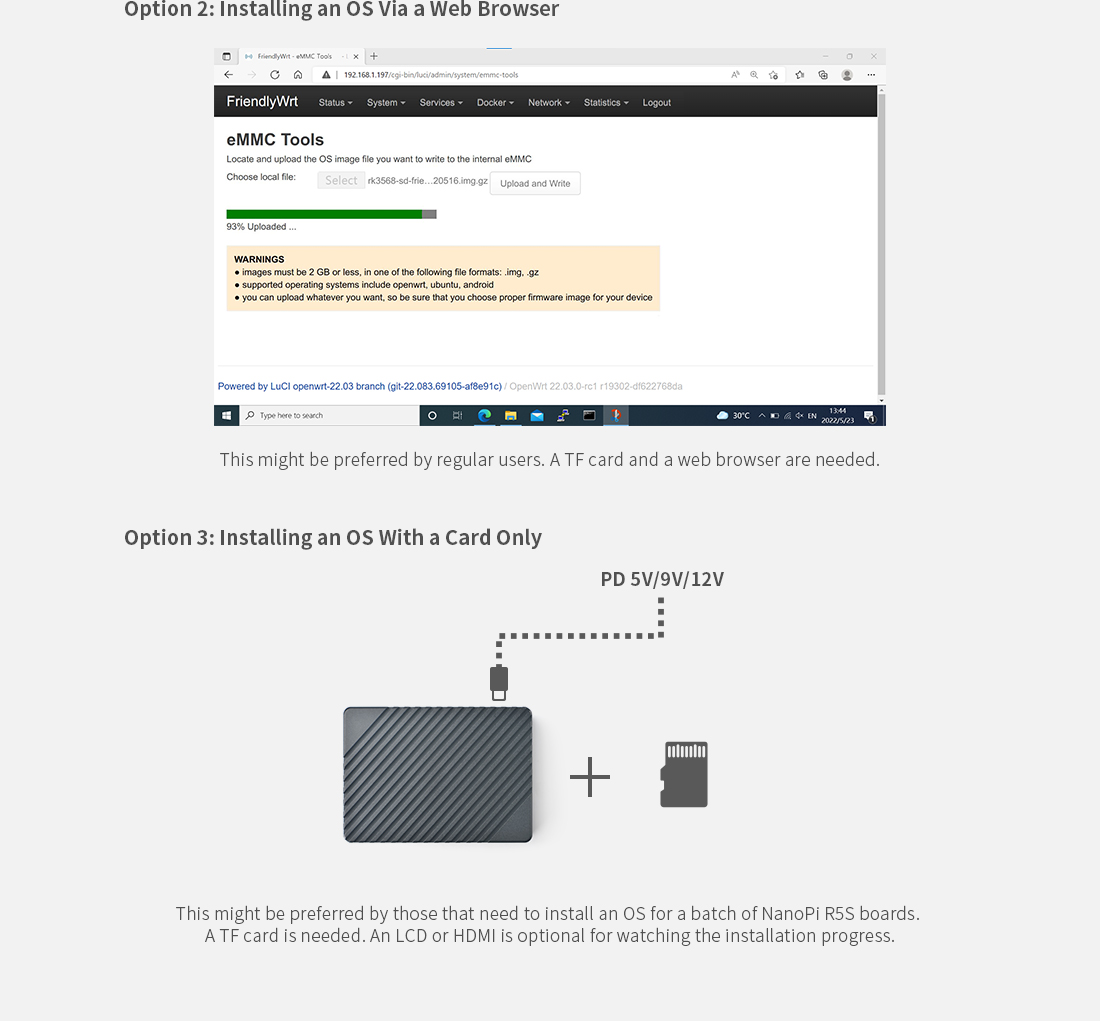

The NanoPi R5S (as "R5S") is an open-sourced mini router with two 2.5G and one Gbps Ethernet ports. It is integrated with a RK3568B2 CPU for Rockchip, 2GB/4GB LPDDR4x RAM and 8GB eMMC flash. It supports booting with TF cards and works with operating systems such as for Friendly WRT, etc.

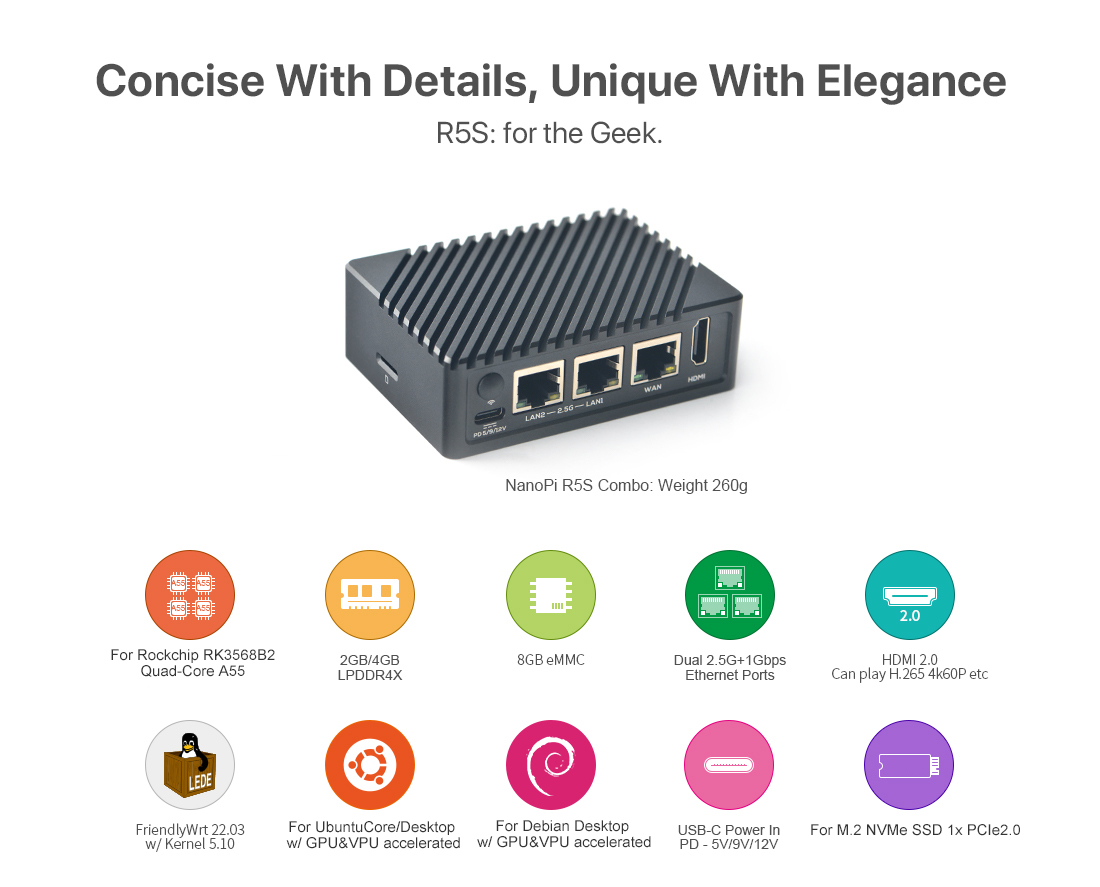

The NanoPi R5S has rich hardware resources with a compact size. FriendlyElec has released a carefully-designed custom CNC housing for it. It has one HDMI port. It is for Android, Ubuntu Desktop and Buildroot etc. and works with headless systems as well. It supports decoding 4K60p H.265/H.264 formatted videos.

The NanoPi R5S has one port for M.2 NVME, two USB 3.0 ports, and supports USB type-C power delivery. It is an ideal portable drive for saving images and videos.

All in all, the NanoPi R5S is a board featured with multiple Ethernet ports, light NAS and video playing. It is a can not-miss platform with infinite possibilities for geeks, fans and developers.

Attention: Desktop system for Android 12 and Ubuntu 22.04 will be released for the NanoPi R5S pretty soon.

Hardware Specifications:

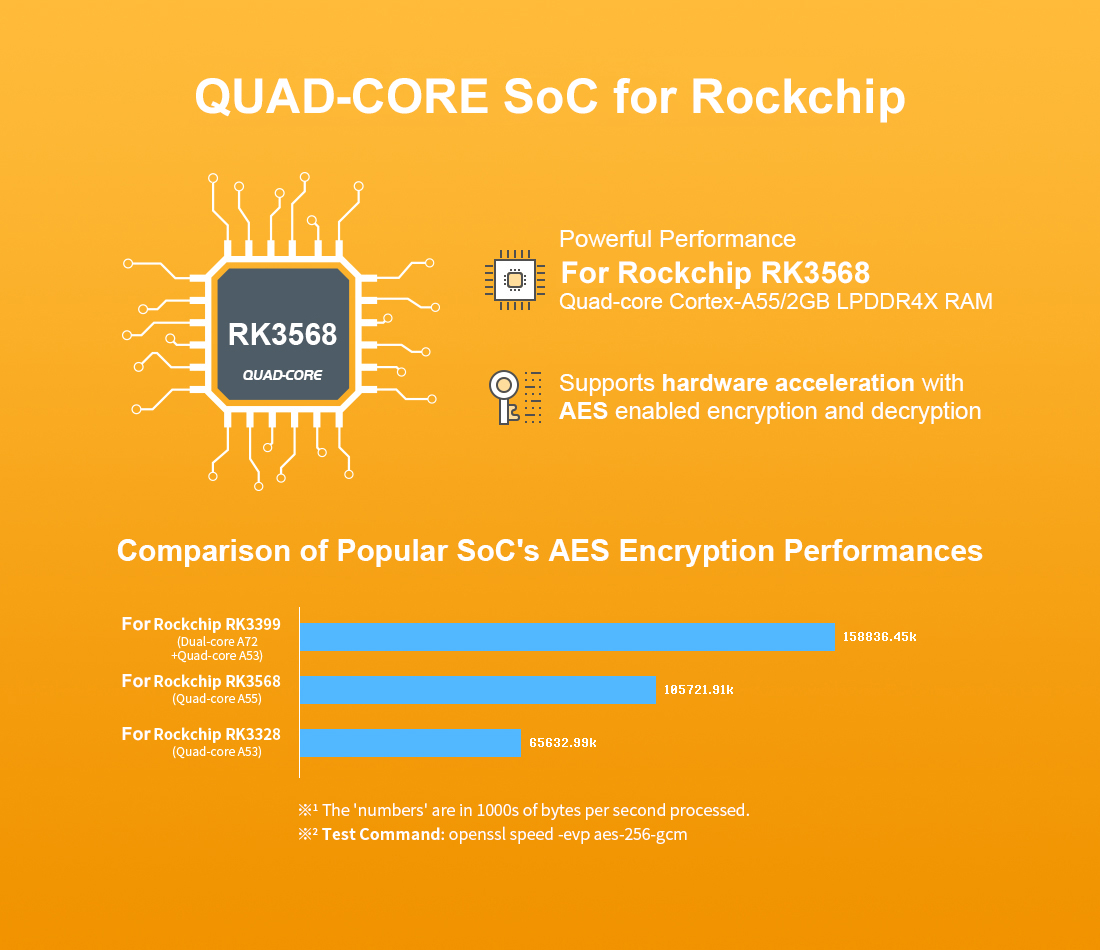

- CPU: Model: RK3568B2 for Rockchip. Number of Cores: Quad-core for ARM Cortex-A55. Frequency: 4 x Cortex-A55 up to 2.0GHz
- GPU: Mali-G52 1-Core-2EE, supports for OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 Full Profile
- VPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder
- NPU: Support 0.8T
- Memory: RAM: 2GB/4GB LPDDR4X
- Storage: MicroSD Slot: MicroSD x1, support UHS-I, for external storage up to 128GB. Flash: 8GB/16GB eMMC 5.1 Flash. PCIe: M.2 M-Key, PCIe2.0 x1, support NVME, PCIe WiFi etc. Onboard M3 PCB nut for mounting M.2 2280 module

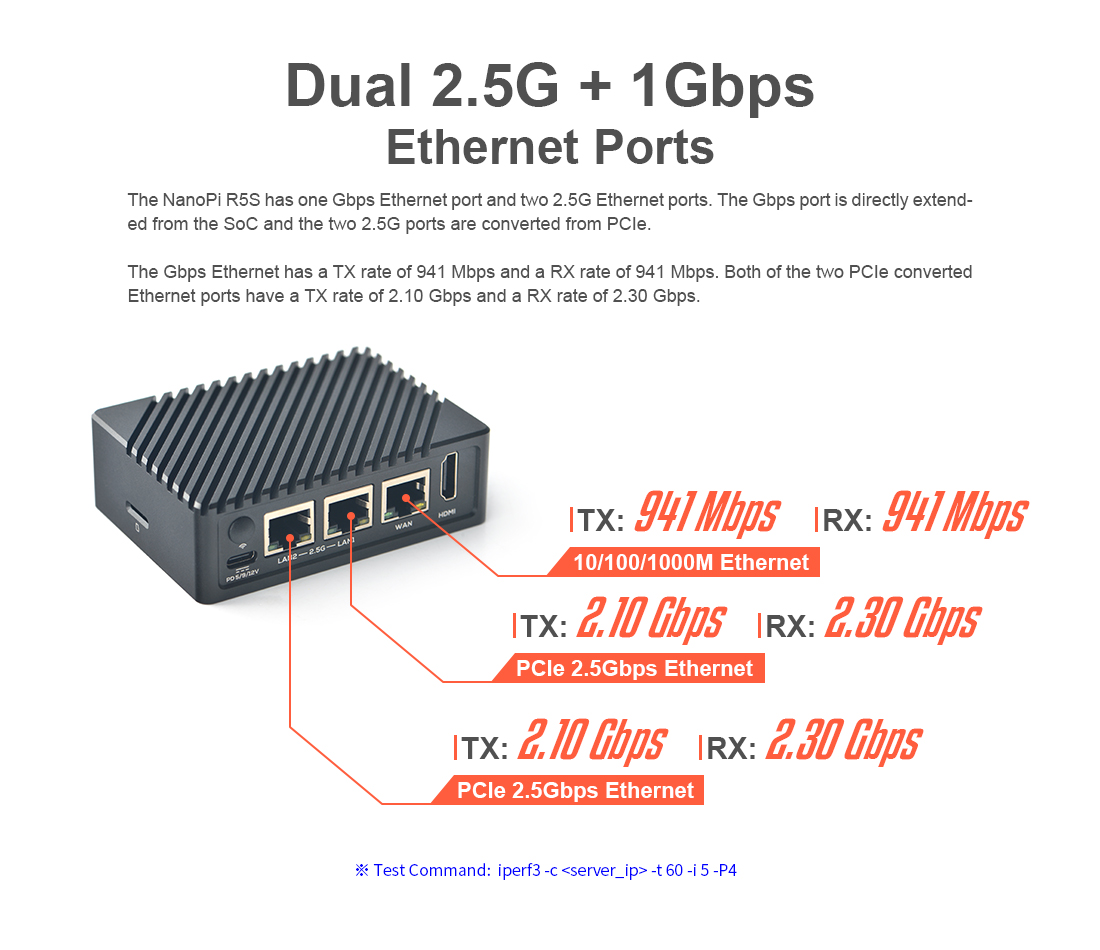

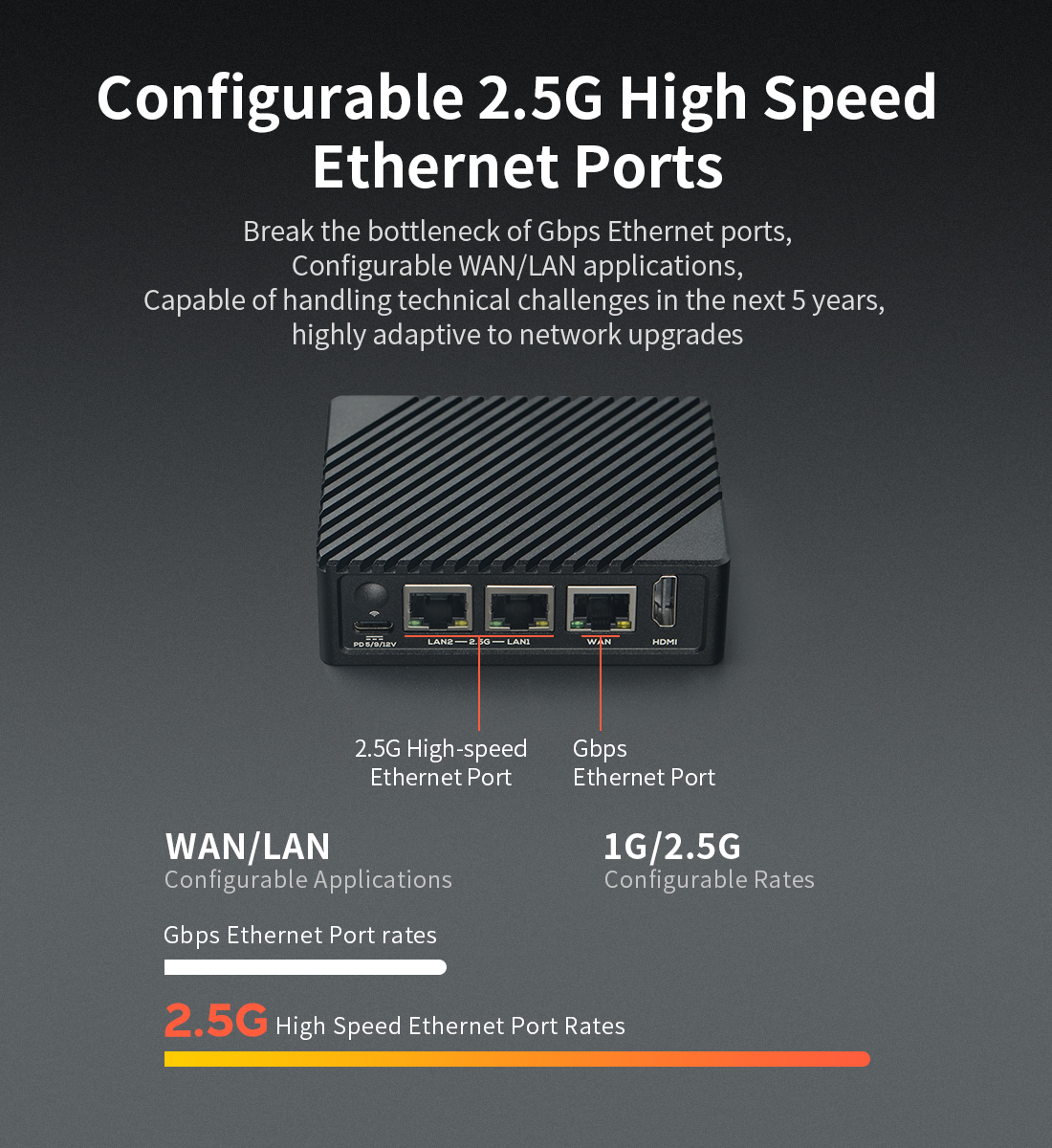

- Connectivity: Ethernet: Native Gigabit Ethernet x1, RTL8211F-CG chip; PCIe 2.5G Ethernet Ethernet x2, RTL8125BG chip
- Video Output: HDMI: support HDMI1.4 and HDMI2.0 operation; support up to 10 bits Deep Color modes; support up to 1080p at 120Hz and 4096x2304 at 60Hz; support 3-D video formats
- USB: USB 3.0 Host x2: USB Type A; USB 2.0 Host x1: 2.54mm 4pin-header; Type-C x1: Power Input Only
- Pin-header: GPIO: 12-pin 0.5mm FPC connector up to 1x SPI, up to 3x UARTs, up to 4x PWMs, up to 8x GPIOs. SD/MMC/SDIO/I2S: 2x8-pin 1.27mm connector; Compatible with SDIO3.0 protocol; Compatible with SD3.0, MMC ver4.51; 4bits data bus widths; 1x I2S with 2x SDO and 3x SDI; Debug: Debug UART x1, 3 Pin 2.54mm header, 3V level, 1500000bps
- LED: SYS LED (Red) x1, WAN LED (Green) x1, LAN1 LED (Green) x1, and LAN2 LED (Green) x1
- Button: MASK Button x1 for eMMC update

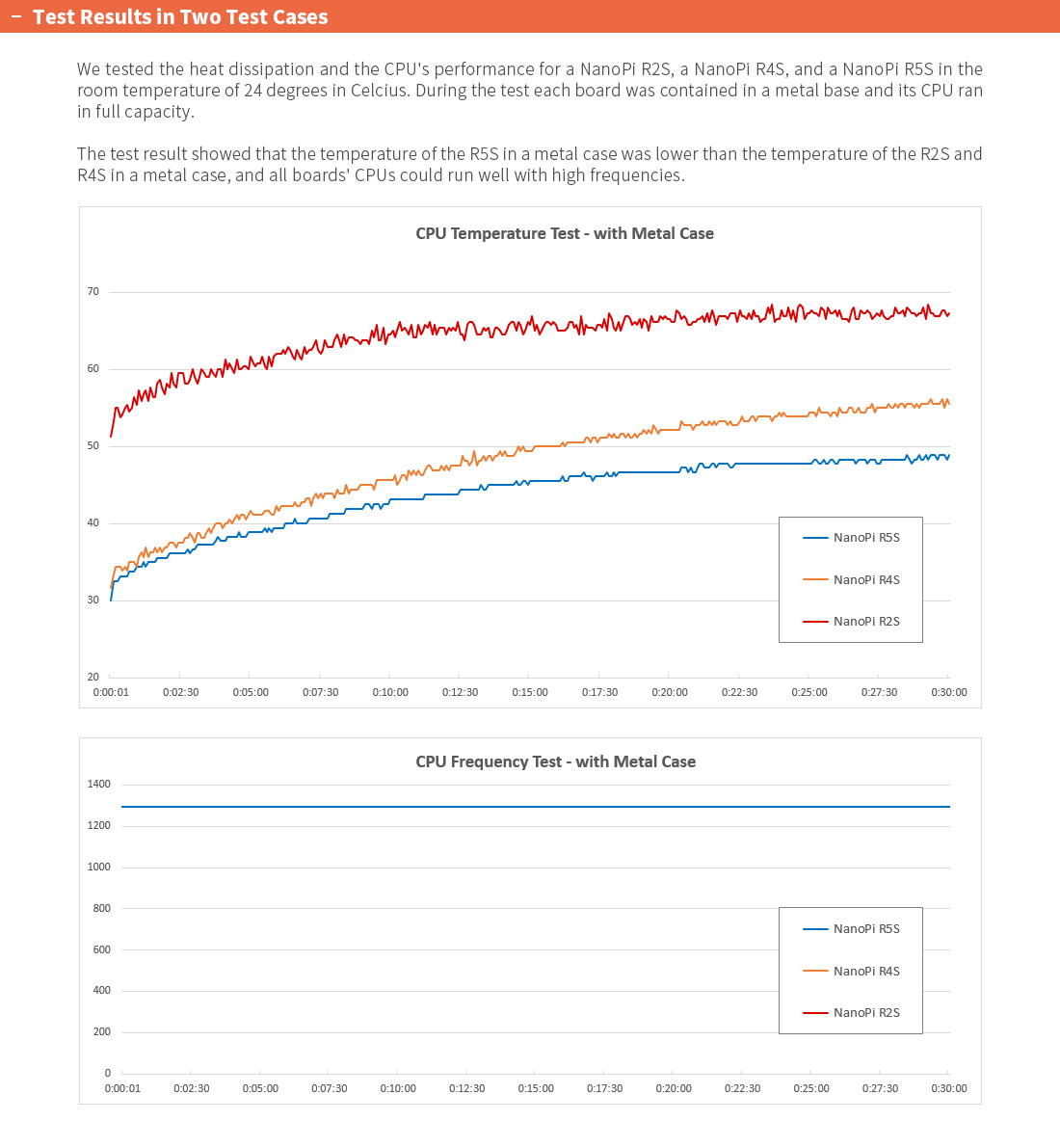

- Others: 2 Pin 1.27/1.25mm RTC battery (battery not included) input connector for low power RTC IC HYM8563TS. Fan Connector (ZH1.5-2A) x1, 5V. Working Temperature: 0℃ to 70℃
- Power: DC 5V/3A, via USB-C connector or Pin header

OS/Software:

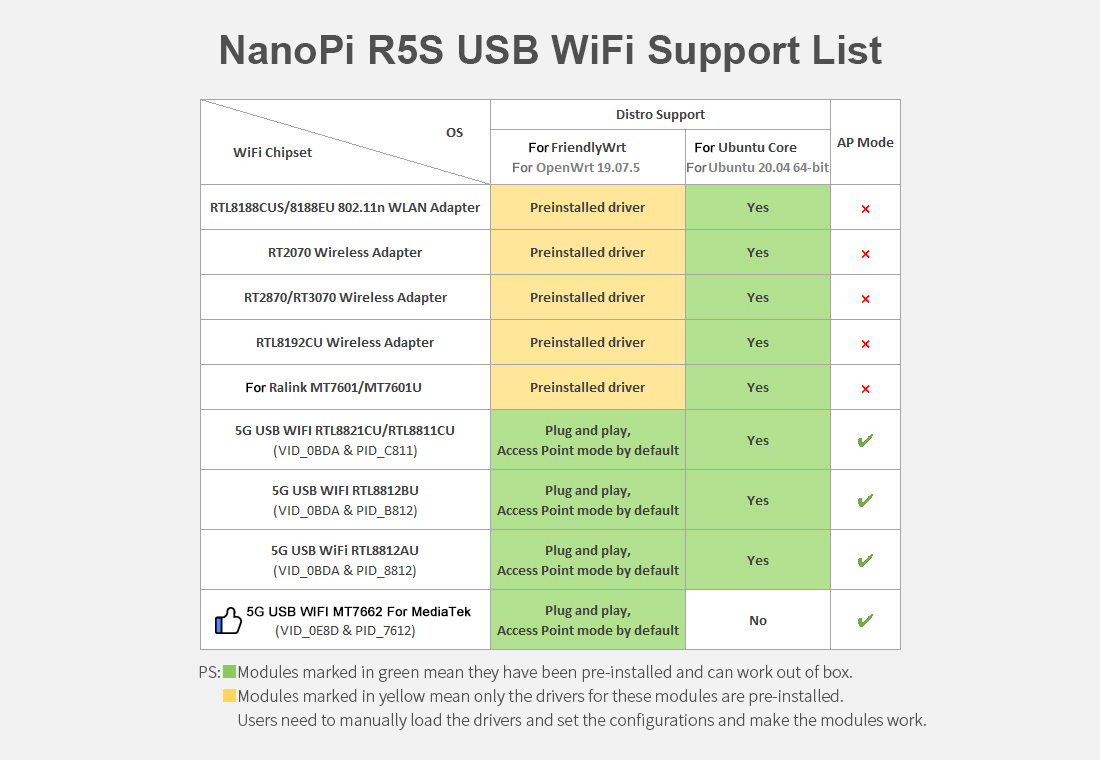

- OS Support: for FriendlyWrt 22.03 (64-bit), Debian Buster Desktop (64-bit), and FriendlyCore Focal Lite (Base on that for Ubuntu 20.04)
- Kernel version: for Linux-5.10-LTS and U-boot-2017.09

Dimensions:
- PCB: 8 Layer

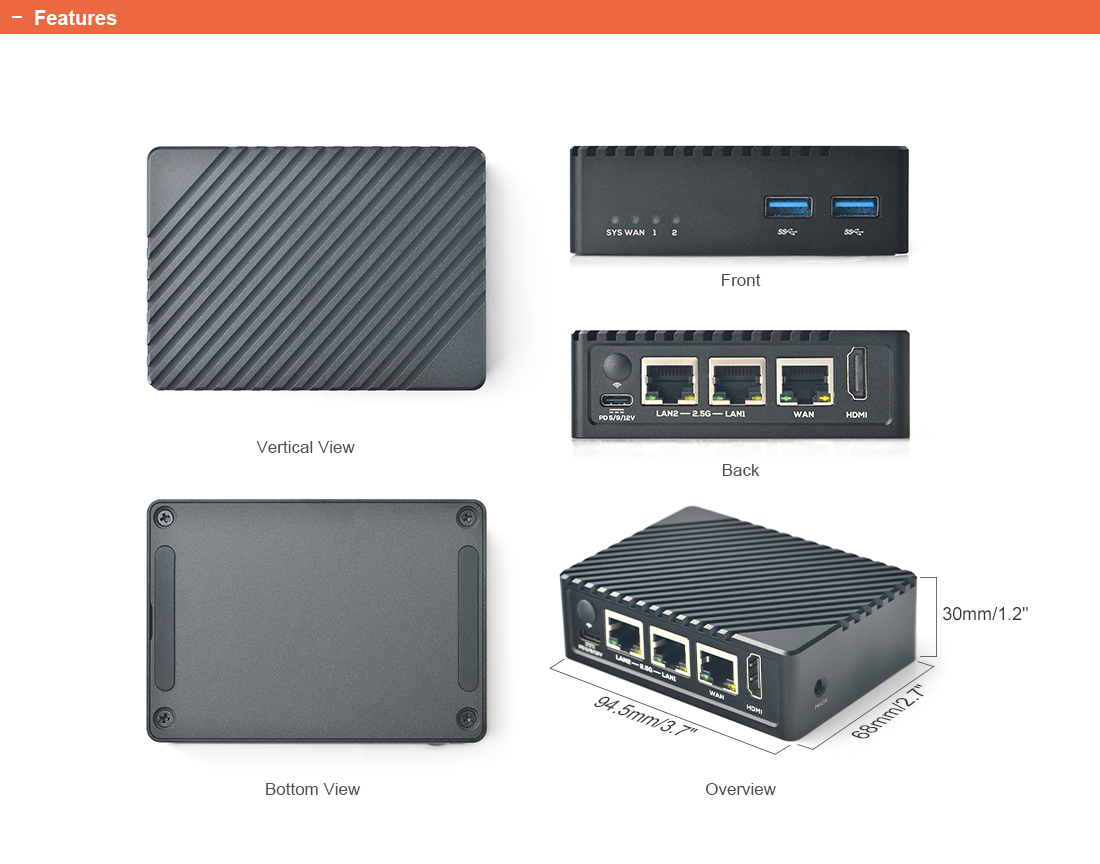

- Dimensions: 68 x 94.5 x 30mm/2.7 x 3.7 x 1.2" (with Case)
- Weight: 260g/0.6" (with Case)

Note:
- Battery is not included.
