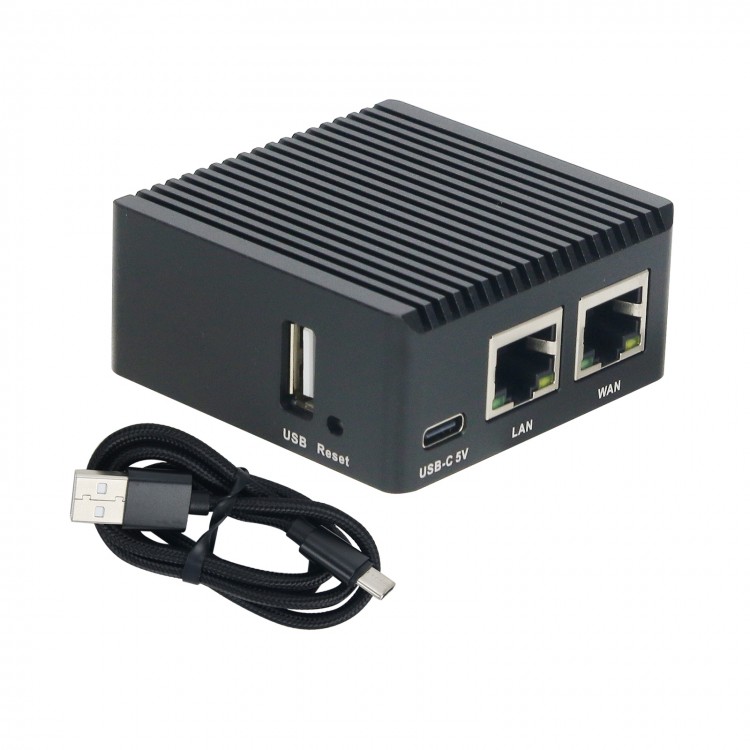

NanoPi R2S Rockchip RK3328 with CNC Metal Case Mini Router Dual Gigabit Port 1GB SBC OpenWrt System

NanoPi R2S Rockchip RK3328 with CNC Metal Case Mini Router Dual Gigabit Port 1GB SBC OpenWrt System

Introduction

• The NanoPi R2S(as "R2S") is an open-source platform with dual-Gbps Ethernet ports designed and developed by FriendlyElec for IoT applications.

• The NanoPi R2S uses the RK3328 SoC. It has two Gbps Ethernet ports and 1G DDR4 RAM. FriendlyElec ported an OpenWrt system for it. It works with Docker CE. It is a good platform for developing IoT applications, NAS applications, smart home gateways, etc.

Hardware Spec

• CPU: Rockchip RK3328, Quad-core Cortex-A53

• DDR4 RAM: 1GB

• Network:

  • Internal 10/100/1000M Ethernet Port x 1

  • USB3.0 converted 10/100/1000M Ethernet Port x 1

• USB2.0 Host: Type-A x1

• MicroSD Slot x 1

• MicroUSB: power input and USB Slave

• Debug Serial Port: 3.3V TTL, 3-pin 2.54mm pitch connector

• LED: LED x 3

• KEY: KEY x 1 programmable

• PC Size: 55.6 x 52mm

• Power Supply: DC 5V/2A

• Temperature measuring range: 0℃ to 80℃

• OS/Software: U-boot,Ubuntu-Core,OpenWrt

• Network Transmission Rates
