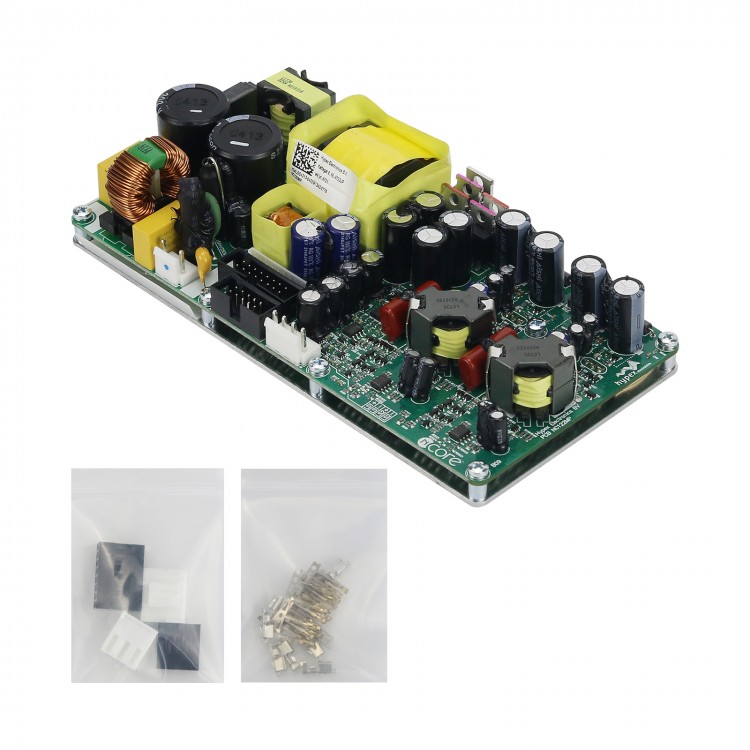

NC122MP 2x125W Amplifier Module Hifi Amplifier Board Power Amp Board For Hypex Studio Home Use

Availability: In stock, usually dispatched in 1 business day

  • Price:$217.33
  • Price in reward points: 2173 Reward Points: 22
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $212.98 $208.64 $202.12 $193.42 Contact US
Quantity:

NC122MP 2x125W Amplifier Module Hifi Amplifier Board Power Amp Board For Hypex Studio Home Use

Introduction:

The NC122MP amplifier module incorporates a low power standby power supply (meets 2013 ERP Lot 6 0.5W requirements), a highly efficient switch mode power supply and a high-performance Class D amplifier in one compact and easily applicable power brick.

The amplifier used in the NC122MP is a self-contained high-performance class D amplifier intended for a wide range of audio applications, ranging from public address systems to ultra high-fidelity replay systems for studio and home use. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency independent distortion behavior and very low radiated and conducted EMI. Control is based on a phase shift controlled self-oscillating loop taking feedback only at the speaker output.

The main SMPS providing the power for the amplifier is a compact, high power, highly efficient, regulated half bridge converter with synchronous rectification on the main output rails. These properties make this technology ideal for powering Class D audio amplifiers. For applications requiring a standby mode, a low power standby SMPS also has been integrated into this product.

Specifications:
- Model: NC122MP
- Two channel amplifier
- Single channel, 4 Ohm
- Dual channel, 4 Ohm
- 2 x 125W
- 5W standby SMPS
- Advanced over-current protection
- External controlled operation
- Automatic-switching (115V/230V)
- Size: 170 x 85 x 40mm/6.7 x 3.3 x 1.6"
- N.W.: 415g/0.9 lb

Package Included:
- 1 x Power Amp Board
