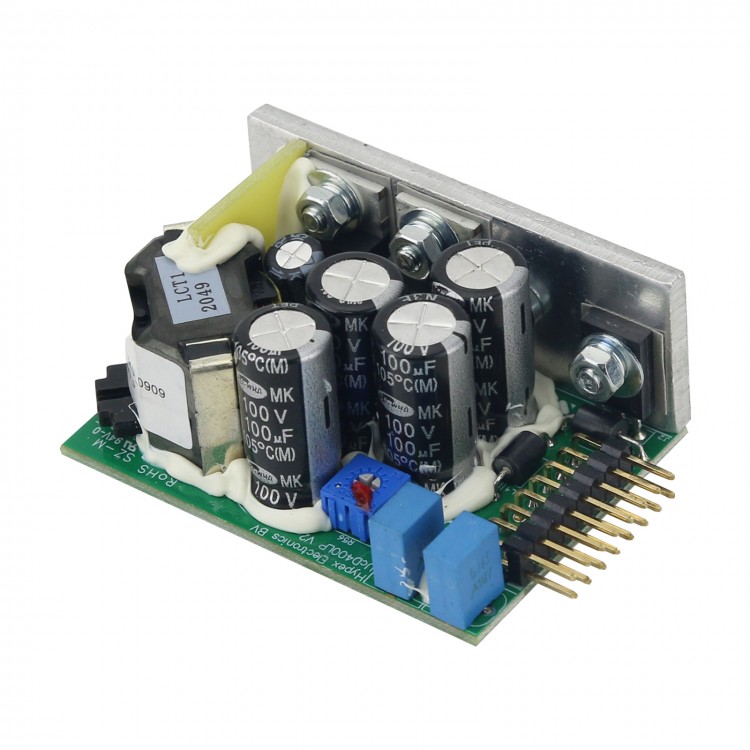

UCD400LP Power Amplifier Board High Performance Class D HiFi Audio Amplifier Module Fully Passive Loop Control for HYPEX
Description:
- The UCD400LP (Low Profile version) amplifier module is a self-contained high performance class D amplifier intended for a wide range of audio applications, ranging from Public Address systems to ultrahigh-fidelity replay systems for studio and home use. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency-independent distortion behaviour and very low radiated and conducted EMI. Control is based on a phase-shift controlled self-oscillating loop taking feedback only at the speaker output.
Highlights:
- Flat, fully load-independent frequency response
- Low output impedance
- Very low, frequency-independent THD
- Very low noise
- Fully passive loop control
- Consistent top performer in listening trials
Features:
- Extended voltage headroom
- Pop-free start and stop control
- Differential audio input
- DC-fault detection
- Overcurrent and overvoltage protection
- Weight: 59 g / Height: 26mm
Applications:
- Monitor loudspeakers for recording and mastering studios
- Audiophile power amplifiers for professional and consumer use
- Public Address systems
- Home theatre systems
- Active loudspeakers
Package Included:
- 1 x Power Amplifier Board
