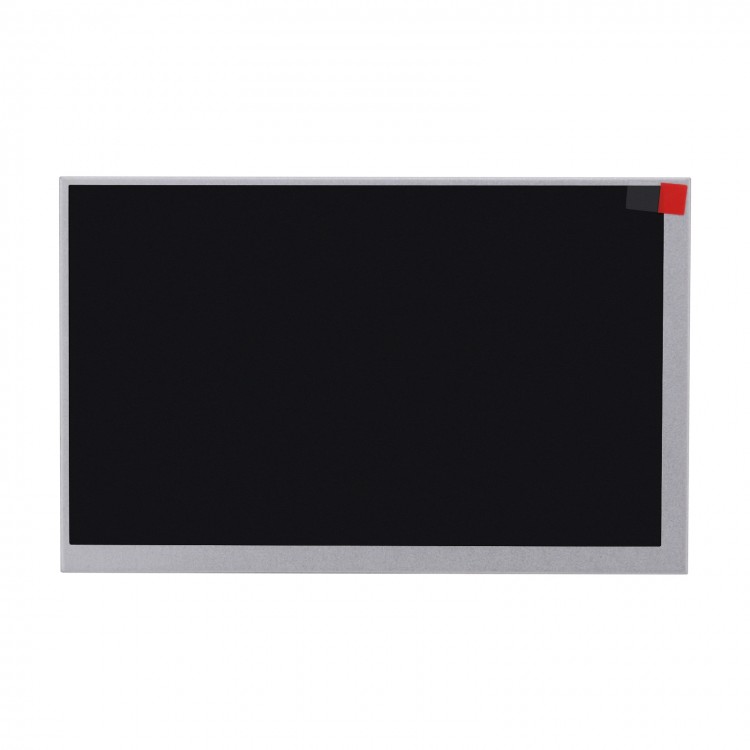

New Original AT070TN83 V.1 7inch TFT LCD Screen EK6709 Master Chip 262K 6-Bit 40Pins for INNOLUX
Specification:
- Panel model: AT070TN83 V.1
- Panel type: a-Si TFT-LCD screen
- Panel size: 7.0inch
- Resolution: 800 (RGB) x 480
- Display mode: TN, NW (normally white) display, transmission
- Surface processing: Filmed
- Panel brightness: 300cd/m2 (Typ.)
- Comparison: 500:1 (transmission)
- Display color: 262K (6-bit)
- Response time: 10/15 (Typ.) (Tr/Td) (ms)
- Angle of view: 70/70/50/70 (Typ.) (CR≥10) (left/right/up/down)
- Lamb tube type: WLED
- Signal interface: TTL (1-CH,6-Bit)
- Panel voltage: 3.3V (Typ.) (VCC)
- Working temperature: -20℃ ~ 70℃
- Storage temperature: -20℃ ~ 80℃
- Aspect ratio: 16 : 9 (width : height)
- Pixel interval: 0.1905 x 0.1905mm (horizontal x vertical)
- Panel weight: 130g
- Display area: 152.40 x 91.44mm (horizontal x vertical)
- Visual area: 155.3 x 94.3mm (horizontal x vertical)
- Overall size: 165.0 x 104.0mm (horizontal x vertical)
- Interface: 40Pins
Package Included:
- 1 x LCD Screen
